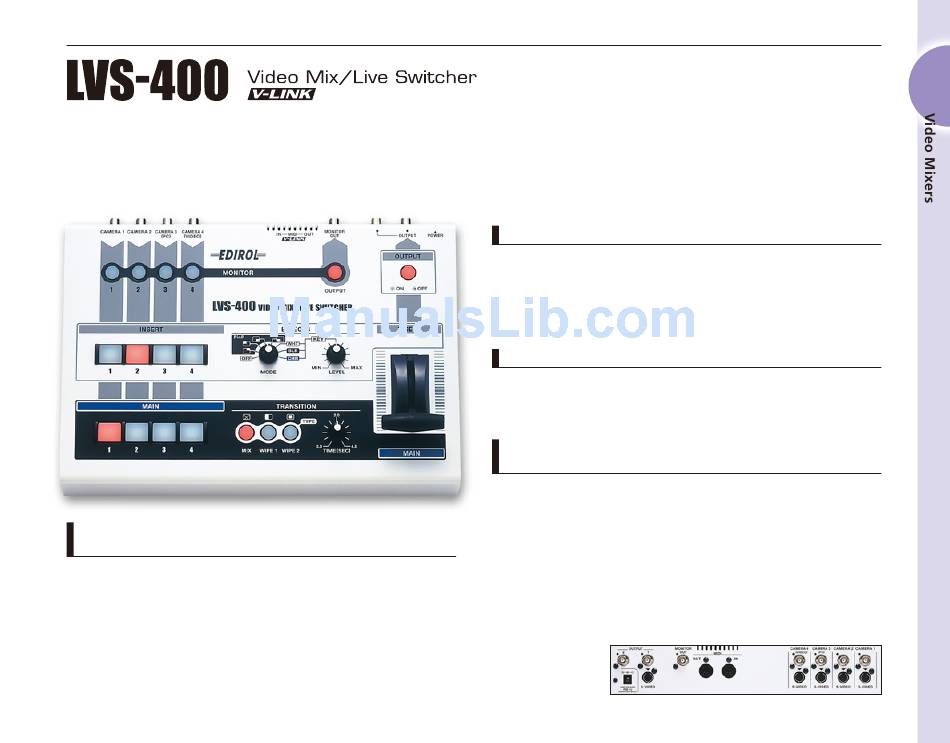

Edirol LVS-400 Brochure

Simple, straightforward operation for all your mixing requirements.
Intuitive and stable mixing/switching of four video sources. Perfect for control of video at events,
exhibitions and presentations.
4 inputs and 3 outputs with an easy to use interface and
simple operation.
Mixing and switching between the 4 inputs is carried out with extreme ease.
The LVS-400 can be connected with any type of video feed such as video
cameras, video decks and PC's. You can switch images from live cameras
rhythmically, make a presentation with images from a PC and use the
LVS-400 in many different situations. For use in a darkened venue, the
LVS-400 features simple and intuitive interfaces such as large back-lit buttons
and an easy-to-use video fader. The Monitor Output function can preview 4
different images individually and immediately in the preview monitor letting
you safely check your inputs without affecting the output images.
Sophisticated compositing and transition effects in real time.
The LVS-400 is equipped with 3 different types of composition effects: the 4
types of Picture in Picture (inserts a small image into the main image),
Chroma Key and Luminance Key (white/black). These let you insert graphics
and titling from a PC into the main image in real time. There are also 3 types
of transition effects: Mix, Wipe 1, which switches from left to right and
Wipe 2 that expands from the center.
Images of DV quality maintained by the Frame Synchronizers.
The LVS-400 lets you manipulate DV quality images with fully digital
processing. The two independent frame synchronizers give you stable
switching with no noise or jitter - no matter how unstable your analog video
sources are.
Professional input and output connectors plus V-LINK to
provide synchronization with music.
For professional use, the LVS-400 is equipped with BNC composite video
inputs and outputs to prevent cables being accidently pulled out. In
addition, the V-LINK connection, via MIDI, lets you synch the video with live
performance of music.
LVS-400 Specifications
•Video Format: NTSC or PAL (ITU601) •Video Sampling Rate: 13.5MHz, 4:2:2 (Y: B-Y: R-Y), 8-bit Frame
Synchronizer x 2 •Video Input: S-Video=4-pin mini DIN type x 4, Video (Composite)=BNC type x 4 *If S-
Video is simultaneously, S-Video takes priority •Video Output: S-Video=4-pin mini DIN type x 1, Video
(Composite)= BNC type x 2 •Monitor Output: Video (Composite)=BNC type x 1 •Input/Output Level and
Impedance: S-Video Luminance signal=1Vp-p, 75ohm, Chrominance signal=0.286mVp-p, 75ohm (NTSC),
0.3mVp-p, 75ohm (PAL) Video (Composite)=1Vp-p, 75ohm •Control Connectors: MIDI IN=5-pin DIN type,
MIDI OUT= 5-pin DIN type •Transition Effects: Mix (Dissolve), Wipe 1, Wipe 2 •Composite Effects:
Picture-in-Picture (4 types), Luminance Key (2 types), Chroma Key •Power Supply: DC 9V (AC Adaptor)
•Current Draw: 1500mA
•Dimensions: 365 (W) x 259
(D) x 87 (H) mm •Weight
(excluding the AC adaptor):
2.95kg •Accessories: BNC-
RCA Adapter x 4
