User's Manual

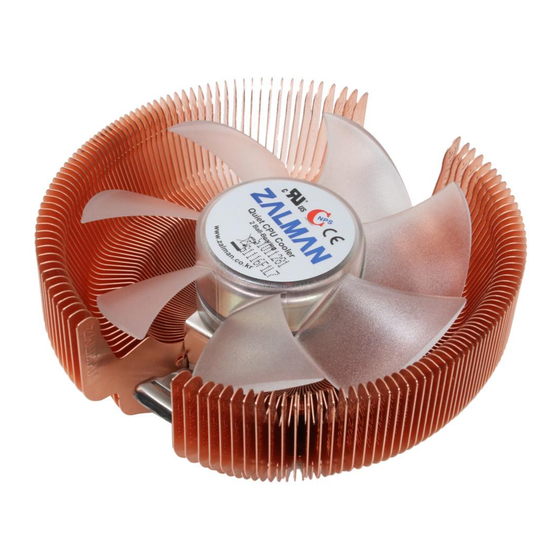

CNPS7500 LED Series
AMD Socket AM3/AM2+/AM2/754/939/940 CPUs
Intel Socket 1155/1156/775 CPUs
Core i7
Core i5
Core i3
Core 2 Quad
Core 2 Duo
Pentium Dual Core
Pentium D
Pentium 4
Celeron D
Phenom II
Phenom
Athlon II
Athlon X2
Athlon FX
Athlon
Opteron
Dual-Core Opteron
Sempron
To ensure safe and easy installation,
please read the following precautions.
www.ZALMAN.com
V 2.4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ZALMAN CNPS7500-Cu LED
Summary of Contents for ZALMAN CNPS7500-Cu LED
- Page 1 Pentium Dual Core Pentium D Pentium 4 Celeron D AMD Socket AM3/AM2+/AM2/754/939/940 CPUs Phenom II Phenom Athlon II Athlon X2 Athlon FX Athlon Opteron Dual-Core Opteron Sempron To ensure safe and easy installation, please read the following precautions. www.ZALMAN.com V 2.4...
-
Page 2: Specifications
Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement. Zalman Tech Co., Ltd. is not responsible for any damages due to overclocking. During transportation of the system, the cooler must be removed. - Page 3 3. Components Cooler Clip Support Washers Clip Support Fixing Bolts Nuts Fan Mate 2 Fan Mate 2 Cable Double-Sided Tape Thermal Grease User’s Manual Clip Lever .COM...
-
Page 4: Installation Requirements
4. Installation Requirements 1) Space Requirements The cooler’s installation requires unobstructed space with dimensions of 124 (width), 124 (height), 70 (depth), and the CPU as a central reference point. Please check if components such as ODDs and PSU protrude into the required space. 2) Compatible CPUs Intel Socket 1155 / 1156 / 775 CPUs Core i7 / i5 / i3... - Page 5 5. Installation 1) Intel Socket Installation Install the Clip Support to the motherboard according to the socket-type. Bolt(silver) Clip Support Socket 1155 / 1156 Socket 775 Washer Caution Lever Slot Please make note of the Lever Slot’s direction when installing the Clip Support. Clear off any particles or residue from the CPU’s surface then spread a thorough layer of Thermal Grease on the CPU and the base of the cooler.
- Page 6 Insert the Clip Lever through the Clip’s Clip Lever slot. Hook the opposite side of the Clip onto the Lug first, then use a screwdriver to hook the Clip Lever onto its Lug. 2) AMD Socket Installation Clear off any particles or residue from the CPU’s surface then spread a thorough layer of Thermal Grease on the CPU and the base of the cooler.
- Page 7 Insert the Clip Lever through the Clip’s Clip Lever slot. Hook the opposite side of the Clip onto the Lug first, then use a screwdriver to hook the Clip Lever onto its Lug. 6. Fan Mate 2 Installation and Usage 1) Fan Mate 2 Installation Fan Mate 2 can be installed to the Connect Fan Mate 2 between the...
- Page 8 2) Fan Mate 2 Operation Fan Speed Control Knob Ajust the Fan Speed Control Knob for RPM control. BIOS Booting Error In the case that you get a BIOS error beep: Rotate the Fan Speed Control Knob clockwise to the maximum setting. Disable CPU Fan Detected in BIOS setting or set the system monitoring program’s CPU Fan RPM to the lowest setting.
