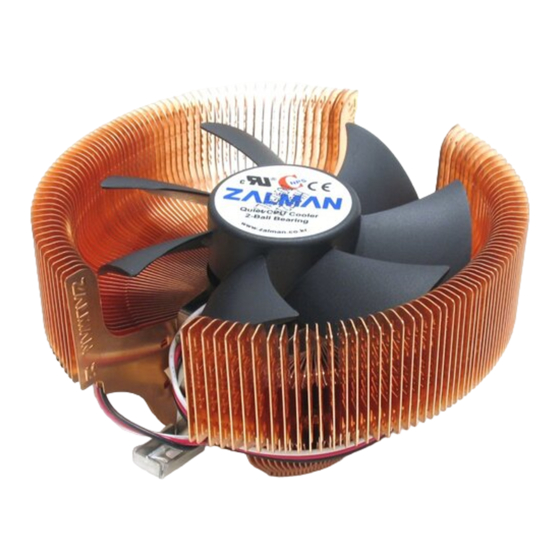

- Page 1 User ’ ’ s Manual User ’ ’ s Manual (English Edition) Intel Pentium 4 Socket 478 CPU AMD Athlon / Duron / Athlon XP Socket 462 CPU AMD Athlon 64 Socket 754 CPU CNPS7000A * Please read before installation http://www.zalman.co.kr http://www.zalmanusa.com...
-
Page 2: Specifications
NOTE1) The maximum weight for the cooler is specified as 450g/450g/300g for socket 478/754/462 respectively. Special care should be taken when moving a computer equipped with a cooler which exceeds the relevant weight limit. Zalman Tech Is not responsible for any damage that occurs when moving a computer. -
Page 3: Exploded View
2) Do not put your finger into the fan while it is running. 3) Keep the product away from children. 4) Zalman Tech. Co., Ltd. is not responsible for any problems arising from using the product outside its intended purpose. - Page 4 All manuals and user guides at all-guides.com 5. Components 1) Common Components ❶ FHS Assembly (CNPS7000A-CU/ALCU) ❷ Four Bolts - For fastening the Clip ❸ Thermal Grease ❶ ❹ Adjustable Fan Speed Controller (FAN MATE 1) ❺ User’s Manual ❷ ❸...
- Page 5 All manuals and user guides at all-guides.com Caution) ① As shown in Figure 2 a motherboard that is not compliant with the “10.2mm motherboard component height restriction” standard, introduced by Intel, may create interference between components and the clip. Please do not install the CNPS7000A when this interference is observed. ②...
-
Page 6: Installation
All manuals and user guides at all-guides.com 7. Installation (INTEL Pentium 4-478) CPU (IHS) 1) Apply Thermal Grease Spread thermal grease thinly and evenly over the CPU core. Thermal Grease Clip Support Retention Guide 2) Install Clip Support Install the two clip supports at both sides of the retention guide as shown on the right. - Page 7 All manuals and user guides at all-guides.com 8. Installation- AMD (Athlon/Duron/Athlon XP-462) B-Type Clip Support (White) 1) Install Clip Support Small Install the socket 462 Clip Supports Washer A-Type Clip Support (Blue) Lever as shown on the right. Ensure to install A-Type clip support(Blue) by the Lever.
- Page 8 All manuals and user guides at all-guides.com 9. Installation- AMD (Athlon 64-754) 1) Fasten Nipples Nipple Locate the backplate on the bottom of the Big Hole Washer mohterboard under the CPU socket, then fasten the nipples as shown on the right. When installing CNPS7000A on Athlon 64,Retention Frame is not needed.
- Page 9 3) Creating a Complete Noiseless System Use the following Zalman products to achieve stable and silent operation of your computer : Noiseless Power Supply, CNPS series CPU Cooler, Fanless Coolers for Northbridge Chipset & Video Card, and Noiseless Fan.
