Wall Mounting
1. Remove mounting bracket.
2. Hold the bracket up to the desired mounting surface.
Note: Although the speaker can be mounted either horizontally or vertically, the MTM type of de-
sign used in the MPP will produce a more evenly distributed sound through out the listening area if
mounted vertically.
3. Use a level or measuring tape to insure that the bracket is square with its surroundings.
4. Mark the locations of the bracket mounting screw holes.
5. Drill pilot holes (if required) into the mounting surface.
6. Pull the speaker wire through the center hole in the bracket.
7. Attach the bracket to the mounting surface.
8. Connect the speaker wire to the MPP binding posts. See "WIRING: Connecting the speakers to your
system" for speaker wiring information.
9. Attach the MPP to the mounting bracket by seating the MPP mounting slots, located on each end of the
back of the MPP, into the mounting tabs of the bracket as shown in Figure 2. The tabs will "click" into place
when the connection is made. Lightly pull forward and side to side on the MPP to ensure a solid connec-
tion has been made. To remove the MPP from the mounting bracket, depress both buttons at each end of
the back of the MPP and pull the speaker off of the mounting bracket. The MPP should slide off easily. DO
NOT force it. Make sure both buttons are depressed completely.

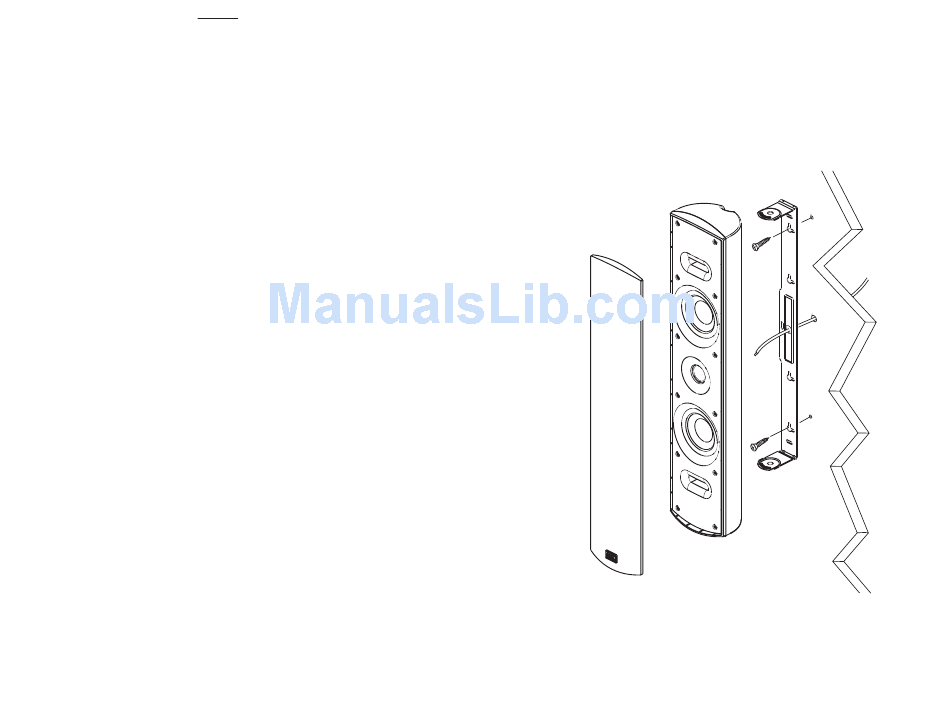

Figure 1
