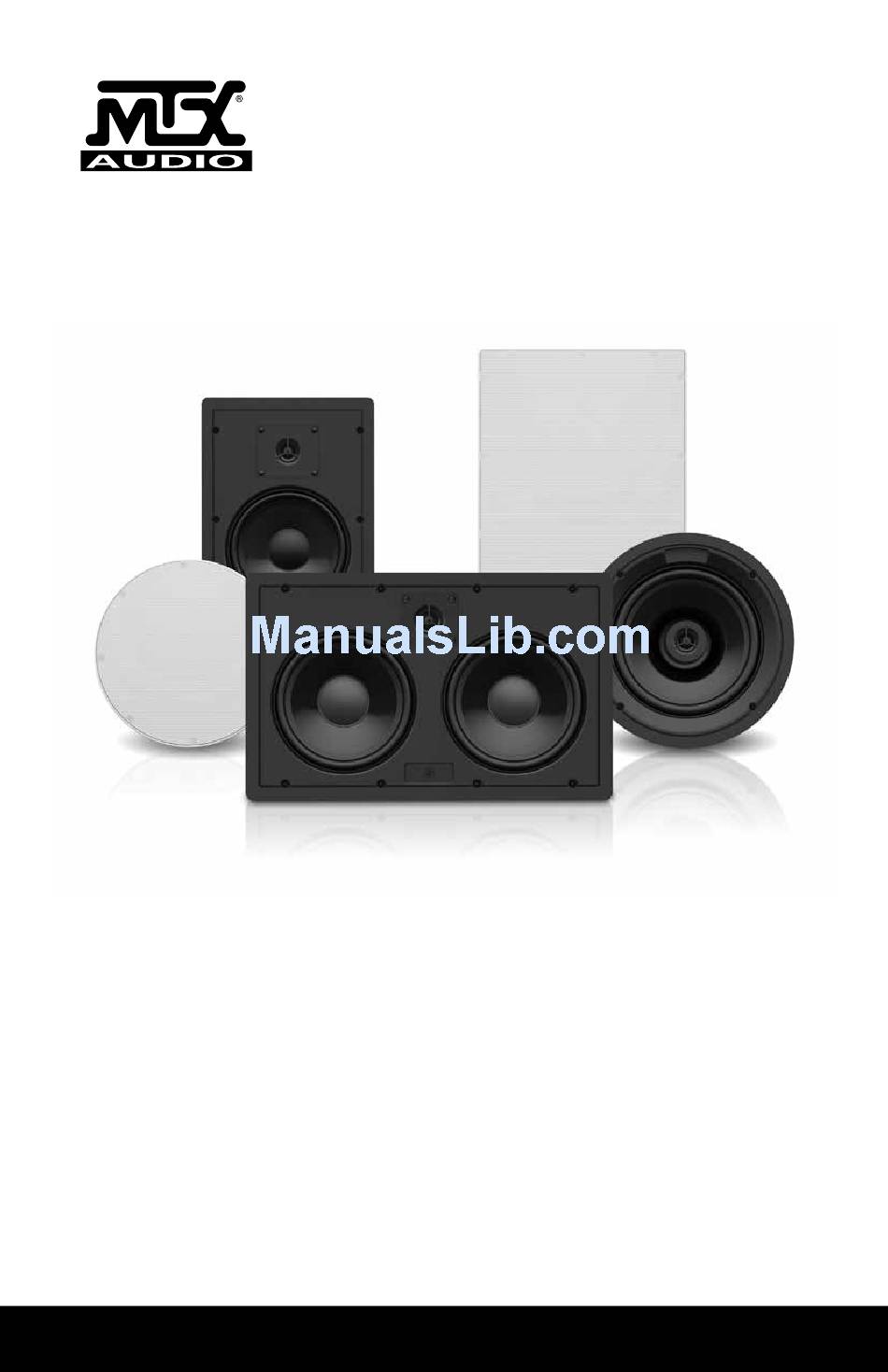

OWNER'S MANUAL
MUSICA SERIES
DISTRIBUTED AUDIO CUSTOM SPEAKERS
M T X . C O M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MUSICA SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MTX MUSICA SERIES

Summary of Contents for MTX MUSICA SERIES

  • Page 1 OWNER’S MANUAL MUSICA SERIES DISTRIBUTED AUDIO CUSTOM SPEAKERS M T X . C O M...

  • Page 2: Key Features

    Thank you for choosing MTX MUSICA Series speakers for your home audio system. Properly installed and operated, these speakers will provide years of worry-free listening pleasure. KEY FEATURES • Polypropylene Woofer with Rubber Surround • PEI Balanced Dome Tweeter • 6dB Octave Tweeter Crossover •...

  • Page 3: Cutting The Speaker Hole

    PAINTING THE GRILLES MTX MUSICA Series speakers include press fit grilles that can be painted to match ceiling or wall colors allowing them to blend into the room. Spray application will provide excellent results. The cloth inserts in the grilles should be removed before the grilles are painted and they should be placed back in the grilles once the paint is dry.
  • Page 4 RE-ASSEMBLING THE GRILLES The grill can now be re assembled into the speaker baffle. 1. Place the scrim cloth on the inner side of the grille. 2. Take the plastic trim and align the notches with the grille flaps. 3. Push the grille into the trim until it sits flush. 4.

  • Page 5: Specifications

    SPECIFICATIONS ICM612 LCRM62 Speaker Type: 2-Way In-Ceiling Speaker Type: Dual 6.5" LCR Tweeter: 14mm Balanced Dome Tweeter: 14mm Balanced Dome Woofer: 6.5" Polypropylene Woofer: Dual 6.5" Polypropylene Impedance: 8Ω Impedance: 8Ω Sensitivity: 88dB (2.83V/1M) Sensitivity: 88dB (2.83V/1M) Frequency Response: 43Hz - 25kHz (-10dB) Frequency Response: 39Hz - 25kHz (-10dB) RMS Power: 50-Watts RMS Power: 65-Watts...
  • Page 6 NOTES: M T X . C O M...
  • Page 7 NOTES: M T X . C O M...
  • Page 8 © 2015 Mitek Corporation. All rights reserved. MTX is a trademark of Mitek Corporation. Designed and Engineered in the U.S.A. Due to continual product development, all specifications are subject to change without notice. MTX Audio, 4545 East Baseline Rd. Phoenix, AZ 85042 U.S.A. 1-800-225-5689 MTX005338 RevA 10/15 •...
