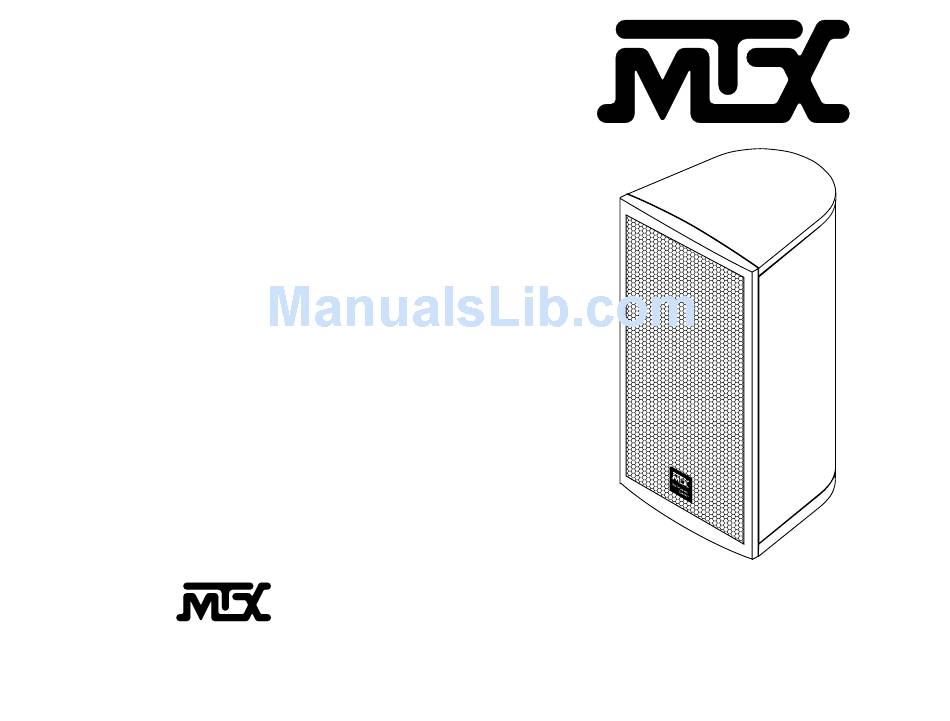

- Page 1 MODEL MP41B/MODEL MP41W Owners Manual 4545 E Baseline Rd Phoenix AZ 85040 Phone: (602)438-4545 Fax: (602)438-8692 21A2953...
-
Page 2: Warranty Statement
CONGRATULATIONS ...on your purchase of MTX multi-purpose loudspeakers. Your new loudspeakers represent years of thorough research and development in the most modern techniques of speaker design and engineering. Using advanced technology and high quality electronics and components, MTX loudspeakers assure you of exceptional performance and value. Your speakers were examined very carefully during and after manufacturing to assure all quality standards were met or exceeded. -
Page 3: Specifications
SPECIFICATIONS Frequency Response 102-20kHz Impedance 8 Ohms Power Handling 40 Watts RMS Total Power Handling 160 Watts Sensitivity 85dB @ 1W/1m Woofer 4” Shielded Tweeter 1/2” Balanced Dome Dimensions 8.115”H x4.812”W x 4.937”D Specifications subject to change without notice. INTRODUCTION About the MP41 Multi Purpose Speaker The MTX MP41 may be the most comprehensive loudspeaker design ever conceived. - Page 4 MP41 PARTS GUIDE 1. Input Terminals 2. Threaded Inserts 3. Brass Thumb Screws 4. Aluminum Bracket 5. Self Adhesive Cabinet Feet 6. B-Type Bracket Mount End Cap 7. A-Type Standard End Cap 8. Grill 9. Grill Adhesive MP41 SET UP GUIDE HOME THEATER Left/Center/Right Front Speaker Height One of the most Important parameters for the...
- Page 5 MP41 SET UP GUIDE HOME THEATER Typical Loudspeaker Placement Figure 1 illustrates the most generally accepted speaker locations for a home theater system. Although there are an infinite number of set up options using Figure 1 as a template will certainly provide a great starting point. Experimentation with slightly different speaker locations may provide improved performance in your specific listening environment.
- Page 6 MP41 CONFIGURATION GUIDE BOOKSHELF Remove the B-Style end caps, brass thumb screws, and aluminum mounting bracket. Replace the brass thumb screws in each end of the cabinet and snap A-Type end caps into place. Then simply place the self adhesive cabinet feet in the appropriate locations to protect the MP41 cabinet and whatever surface that it will sit on.
-
Page 7: Grill Assembly
PAINTING Carefully remove the spring clip on the back of the grill logo and remove the logo. Mask the baffle area of the speaker cabinet out to the grill mounting groove. If you are going to mount the MP41 using the supplied wall bracket it is best to also mask off the foam rubber bracket gaskets at the top and bottom of the speaker cabinet. - Page 8 MP41 CONFIGURATION GUIDE BRACKET MOUNTING ALUMINUM B-STYLE BRACKET BRASS THUMB SCREW B-STYLE BRASS THUMB SCREW MP41 CONFIGURATION GUIDE BRACKET MOUNTING 1) Remove the B-Type end caps, brass thumb screws, and aluminum mounting bracket. 2) Hold the bracket up to the desired mounting surface. Being careful to leave enough space for tightening the brass thumb screws and installing the B-Type end caps.
