USER MANUAL
SAILOR SYSTEM 5000 MF/HF
150/250/500W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sailor System 5000 MF/HF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sailor Sailor System 5000 MF/HF

Summary of Contents for Sailor Sailor System 5000 MF/HF

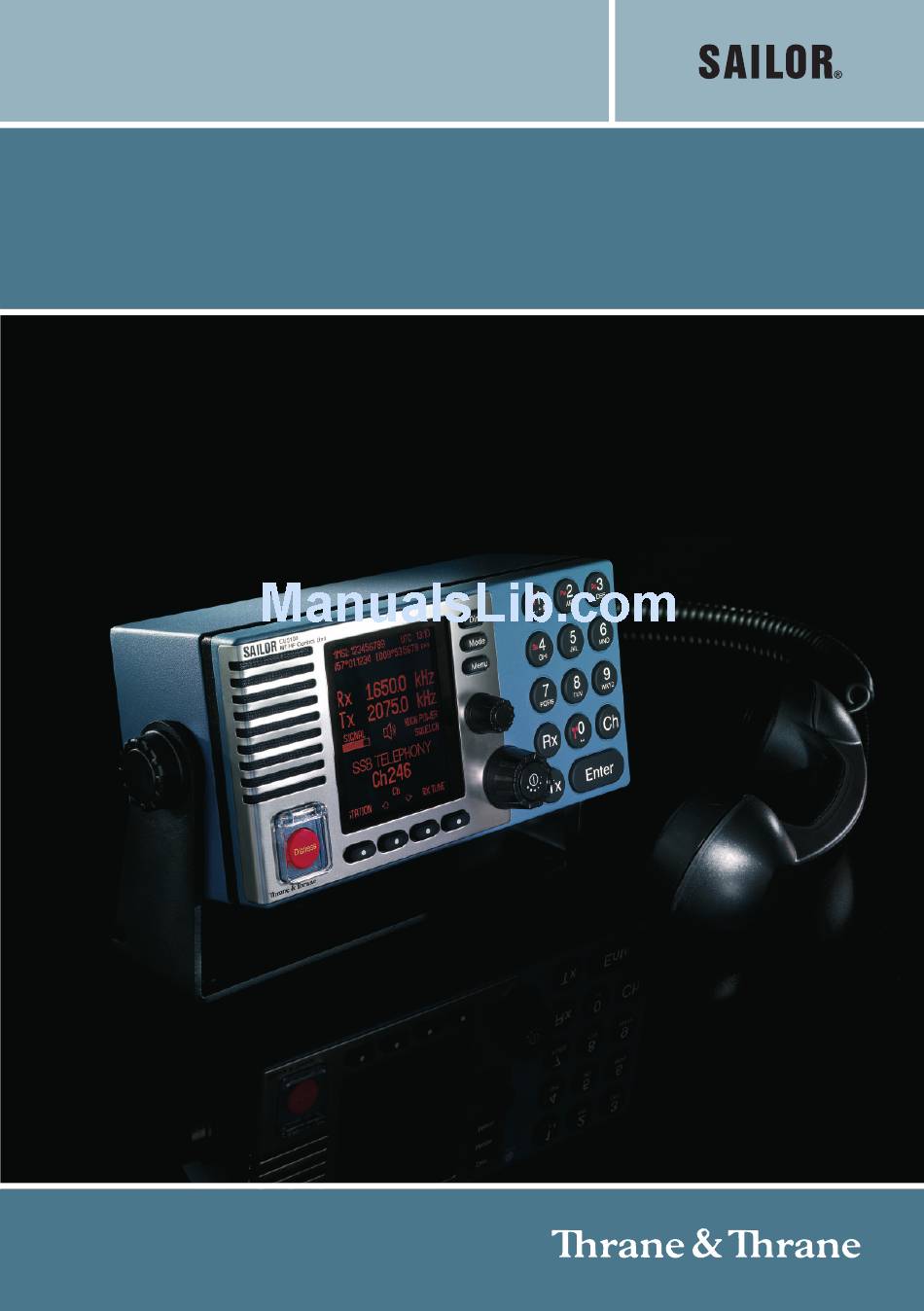

  • Page 1 USER MANUAL SAILOR SYSTEM 5000 MF/HF 150/250/500W...

  • Page 3: Introduction

    Introduction Congratulations on your new SAILOR CU5100 MF/HF maritime radio telephone with built-in DSC (Digital Selective Calling) system, fulfilling the highest international standards for marine MF/HF communication and safety procedures. The transceiver is born with a 2187,5kHz DSC watch receiver forming an ideal system for MF GMDSS installations. The transceiver can easily be upgraded for 6 channel scanning DSC watch receiver and Telex operation to comply with MF/HF requirements in sea area A3.
  • Page 4 Training Information (valid for TU5160) The System 5000 MF/HF is designed for “occupational use only” and is also classified as such. It must only be used in the course of employment by individuals aware of both the hazards as well as the way to minimize those hazards. The radio is thus NOT intended for use in an uncontrolled environment by general public.

  • Page 5: Abbreviations Used In This Manual

    Abbreviations used in this manual ADDR Address Automatic Gain Control Amplitude Modulation Automatic Repetition reQuest CLRF Clarify Control Unit DIRTLX Direct Telex Digital Selective Calling ETSI European Telecommunications Standards Institute Forward Error Correction Go Ahead GMDSS Global Maritime Distress and Safety System Global Positioning System High Frequency Single sideband - full carrier...

  • Page 6: Safety Instruction

    Safety instruction DANGER Never touch the Antenna Tuning Unit or feeder wire when the radiotelephone is transmitting. High voltage which will cause death or serious injury is present at the locations shown in the illustration below when the radiotelephone is transmitting.

  • Page 7: Quick Dsc Distress Call

    Quick DSC distress call (only for emergency use) 1. If necessary, switch on by pressing the ON/OFF button 2. Lift up the lid covering the orange key and press for 3 seconds. 3. The distress will be accompanied by a sound. Distress message is sent at the continuous tone.

  • Page 8: The Mf/Hf At A Glance (Cu5100)

    The MF/HF at a glance (CU5100) 1. Display. 8. Soft keys. 2. Dimming button. The function of each key is described in 3. Mode button used to. its respective field in the display above toggle between modes. each key. 4. Menu button. 9.

  • Page 9: Table Of Contents

    Contents Introduction ..........................iii About this manual ........................ iii Training Information ......................iv Abbreviations used in this manual ..................v Safety instruction ........................ vi Quick DSC distress call ......................vii Mayday procedure ........................vii The MF/HF at a glance (CU5100) ..................viii MF/HF Fundamental info ....................
  • Page 10 Telex operation ......................... 32 Telex setup ........................ 32 Simple telex operation ....................33 Telex via data terminal ..................... 39 Data call ..........................39 Scanning ........................... 40 Watch keeping receiver ....................41 Watch receiver setup ....................41 10 Menu tree .......................... 42 11 Installation ........................

  • Page 11: Mf/Hf Fundamental Info

    1 MF/HF Fundamental info Propagation of MF and HF Radio Waves. MF/HF radiocommunications provide a medium and long range service. The 1.6-4 MHz marine band is intended primarily for coastal operation beyond normal VHF communication range. A reliable range of more than 150 nautical miles can be expected in most areas in the daytime, more in the nighttime.

  • Page 12: Basic Functions

    2 Basic functions Powering MF/HF The MF/HF is turned on by a single press on the ON/OFF/Volume button. The MF/HF is turned off by pressing the ON/OFF/Volume button for 4 seconds. Always indicated by a count down window in the information display, except if the radio is powered down in distress mode.

  • Page 13: Dimming

    Squelch is automatically set to on when scanning is activated and to off when scanning is deactivated. May be switched on and off during scanning. Always off in AM and SSB Remote mode. Dimming To adjust backlight intensity the dim button is pressed. Change mode With the mode button different operation modes can be selected.

  • Page 14: How To Make A Call To A Coast Station

    How to make a call to a coast station Wait until transmission of the traffic list has finished and the channel is free. Call the coast station on the working frequency on which the traffic list was received or as instructed by the coast station.

  • Page 15: Voice Call Operation

    3 Voice call operation Operating MF/HF radio communication The MF/HF is operated by means of a handset. To bring the MF/HF in transmission mode the handset must be hooked off and the PTT button on the handset has to be pressed. Transmission is indicated by the lighted TX indicator.

  • Page 16: Enter Rx/Tx Frequency

    Enter Rx/Tx frequency Press RX to enter a new Rx frequency. Enter the new frequency via the keyboard. Complete by pressing Enter. Pressing the ENTER softkey is equal to pressing OK Press TX to enter a new Tx frequency. Enter the new frequency and complete by pressing Enter. Pressing the Rx softkey copies Rx frequency to the Tx.

  • Page 17: Channel Entry

    Channel entry 3.4.1 Select a channel The MF/HF control unit has all ITU channels preprogrammed in a channel table. These channels starts at Ch 241 and ends at Ch 2517. Channel 1 to 199 are reserved as user channels. Press Ch and key in an existing channel number. Complete by pressing Enter or by pressing the ENTER softkey.
  • Page 18 3.4.2 Store a channel Select the desired RX frequency, TX frequency and mode setting. Press Ch and key in a channel number between 1 and 199. softkey, deletes the previous entry STORE softkey, stores the channel CANCEL softkey, selects the previous display If the channel number is free, press the STORE softkey to store the channel.

  • Page 19: Select A Channel From The Station Table

    3.4.4 Replace a channel Select the desired RX frequency, TX frequency and mode setting. Press Ch and key in a channel number between 1 and 199. Press the REPLACE softkey to store the channel. softkey, deletes the previous entry REPLACE softkey, to convert to the new RX and TX frequencies.

  • Page 20: Re-Tune The Antenna Tuner

    Re-tune the Antenna tuner Press the button ‘0’ for re-tuning the antenna tuner. Also TX tuning is done automatically the first time the transmitter is keyed on a new frequency and before any DSC transmission. 0725...

  • Page 21: Dsc Operation

    4 DSC operation DSC main Press the Menu button Using the Down key and press OK when the select bar is at the preferred menu, or use quick select. DSC CALL - Alternative press Mode button until DSC mode, and press DSC CALL softkey. DSC CALL Select 1.

  • Page 22: Dsc Setup

    DSC setup Press the Menu button Select 5. SETUP. Select 1. DSC SETUP. Use CHANGE softkey - to change setup Steps to the next Use CANCEL softkey - to return to previous display Change LAT/LON - to manually enter position if no GPS position Change TIME - to set real time clock if no GPS time and date TIME and POSITION TIME disappear when information is updated via the NMEA interface.
  • Page 23 Set answer back mode AUTO ACKNOWLEDGEMENT = ON: Transmission of acknowledgement is initiated automatically when a direct call, polling or position request call is received. AUTO ACKNOWLEDGEMENT = OFF: Manuel acknowledgement only. Direct calls initiated by the ship can be carried through; direct calls from coast stations cannot (factory default).

  • Page 24: Receiving A Distress Call

    Receiving a Distress Call The DSC Watch Receiver keeps continuous watch on the distress and safety frequency 2187.5 kHz. Reception of a distress or urgency call is indicated by a specific sound signal which continues until a key is pressed. Additional DSC channels can be used if 6-channel scan has been enabled, see chapter “Watch keeping receiver”.

  • Page 25: Receiving An Individual Call

    Receiving an Individual call When the transceiver is not used for traffic, scanning should be activated to keep watch on one or more DSC frequencies used for public correspondence and general ship-to-ship communication. Reception of an individual routine call addressed to the ship is indicated by a sound signal which continues until the call is acted upon.
  • Page 26 Direct Dial Calls: Some coast stations provide automatic connection from the public switched telephone network allowing a telephone subscriber to call the ship directly without operator intervention at the coast station. Note: Auto Acknowledgement must be On to allow automatic connection, see DSC Status Display.

  • Page 27: Sending A Test Call

    Sending a test call This call type is intended for test of the DSC system on distress and safety frequencies. Press the Menu button. Select OK Select TEST CALL type Navigate the menu by using Up- and Down key Select OK Insert the number in the call Backspace, deletes last digit Selects a submenu where a prepro-...
  • Page 28 Select the DSC Start transmission of frequencies the call Steps between DSC distress frequencies Transmission of a DSC call on MF/HF takes approx. 8 seconds. The coast station should answer the call by sending a DSC Acknowledgement within 4 1/2 minutes. No further communication is intended to take place.

  • Page 29: Calling A Coast Station

    Calling a coast station Press the Menu button and select 1. DSC CALL Select COAST STATION Select individual call type routine call type Some coast stations provide automatic connection with the public switched telephone network. To use this facility select PHONE NO and key in the telephone number. Otherwise: Key in the nine digit MMSI number of the wanted coast station.
  • Page 30 Select the DSC frequency Steps between DSC frequencies If the MMSI number is found in the station list, the frequencies are selected from the DSC frequencies of the station if any; otherwise from the list of non distress DSC frequencies. If DSC frequencies were selected from the Telephony display prior to the call these are default.

  • Page 31: Calling A Ship

    Direct Dial Calls: If a phone number was included in the call then immediately after reception of the acknowl- edgement the DSC call is repeated on the working frequency. This call may be used by the coast station for channel quality evaluation. If the channel quality evaluation indicates that communication will be satisfactory, the coast station sends a DSC acknowledgement and starts dialing the subscriber number.
  • Page 32 A working channel shall be proposed when calling another ship. Insert the working Select the DSC frequencies in the call frequency Selects telephony display for Steps between DSC frequencies change of working frequencies Normally 2177 kHz is used for intership DSC calls. In addition user programmed DSC frequencies may be selected.

  • Page 33: Sending An Area Call

    Sending an area call This call type is used for announcing a vital safety or urgency message. For further information on area call see chapter “Geographic Area Computation”. Press the Menu button and select 1. DSC CALL select 3. AREA Select Select Steps between S/N...
  • Page 34 Use softkey to select Insert the TX working mode frequency in the call Selects the telephony display for change of working frequencies The working frequency for safety calls is normally the distress and safety frequency in the same band as the DSC call, i.e. 2182 kHz on MF. Select the DSC Starts transmission frequencies...

  • Page 35: Repeat A Call

    Repeat a call Press the Menu button and select 2. DSC LOG RE-SEND start Select TX call log transmission of the call Selects non-distress RX call log Selects Distress RX call log Returns to previous display The TX calls log has capacity for storing 20 transmitted calls. The oldest call is deleted when the capacity is exceeded.

  • Page 36: Composed Dsc Calls

    4.10 Composed DSC calls The equipment enables the possibility to pre-compose a DSC routine call for later use. Press the Menu button and select 3. COMPOSED DSC CALLS To enter a new pre-composed DSC routine message press the MODIFY soft key followed by pressing the ADD soft key.
  • Page 37 The user is now asked for MMSI, Mode, frequency. When all the information is entered the user is asked to enter a name. Select OK to Select OK make a new entry To delete an already stored DSC routine call press the MODIFY soft key followed by DELETE.

  • Page 38: Dsc Call Menu

    4.11 DSC call menu MENU 1. DSC CALL 1. COAST STATION 1. WITH PHONE NO MMSI Phone no MODE DSC freq MMSI MODE DSC freq 2. WITHOUT NO 2. SHIP MMSI MODE Working freq DSC freq 3. AREA CATEGORY MODE Working DSC freq RADIUS...

  • Page 39: User Setup

    5 User setup There is a number of special setups available as shown in the setup menu. To change a setup: Press the Menu button and select 5. SETUP Selects the type Steps up or down between selectable setups Returns to previous menu 0725...

  • Page 40: Telex Operation

    6 Telex operation For the MF/HF products a Telex option is available. The Telex option is enabled by entering of a pin-code (key) into the MF/HF transceiver. This pin code is uniquely matched to the serial number of the MF/HF transceiver, i.e. one specific pin code will enable the telex option in one specific MF/HF transceiver only.

  • Page 41: Simple Telex Operation

    Simple telex operation 6.2.1 Keyboard Keyboard Indicator Lamps ‘Standby’ Steady light indicates that the terminal is ready. Flashing light indicates that the printer is off or out-of-paper or the modem is busy/inhibited. Telex mode must be selected in the frequency display of the CU. ‘Tx’...
  • Page 42 Send Mesg (F5): Transmits (prints in Standby) the edited message. WRU (F6): During ARQ communication only: Requests the other station to transmit its answer-back code. DE (F7): Transmits own answer-back code, see the configuration printed when entering telex mode. Over (F8): Changes the direction of an ARQ connection.

  • Page 43: Channel Selection

    6.2.4 Channel selection Press F1. The printer responds by printing: ‘ITU Coast station / interShip channel (C/S)?: After pressing ‘C’ or ‘S’ as desired the channel number is requested and must be typed in. The validity of the channel number is checked. If the channel number does not exist this is indicated.

  • Page 44: Receiving A Message

    Text may be added or deleted. Delete Deletes the last word of the line Deletes message (after confirmation) if pressed after Edit (F4) . Line numbers (10, 20, etc.) are added automatically when typing the message. 6.2.7 Receiving a message Reception is possible whenever the terminal is on, indicated by steady light in the ‘Standby’...
  • Page 45 6.2.9 Example of ARQ Transmission to a Coast Station When the GMDSS telex terminal is on, indicated by the ‘Standby’ keyboard indicator lamp, and the radio is configured to the desired working channel (and, if requested by the coast station, free signal can be heard in the speaker), press the Call ARQ key. The printer responds by printing: Enter ARQ call code: Type in the call code, e.g.: 0832...
  • Page 46 Having completed the transmission, the answer-back code of the subscriber is requested by pressing the WRU key: 54321 ZYXW and own answer-back is sent by pressing the DE key: 123456789 abcd x To disconnect the land line type: kkkk The coast station responds with: Time: 07-06-20 12:48 Ship: 123456789 ABCD X Subscr: 54321...

  • Page 47: Telex Via Data Terminal

    Telex via data terminal 6.3.1 Radio Telex software Basically the system consists of the Radiotelex software and a Radiotelex module (modem). The Radiotelex software runs on a computer of one of the following types: • a marine PC, • a communication computer, or •...

  • Page 48: Scanning

    8 Scanning To start scanning the “4” button is pressed. The last used scanning type is selected and squelch is set to on when scanning is activated. Speaker is set to on if the scanning type is Telephony Watch, Multi Watch or Dual Watch. Scanning is stopped by pressing softkey EDIT or by lifting the handset off hook.

  • Page 49: Watch Keeping Receiver

    9 Watch keeping receiver For the MF/HF products a watch keeping option is available. The watch keeping option is enabled by entering of a pin-code (key) into the MF/HF transceiver. This pin code is uniquely matched to the serial number of the MF/HF transceiver, i.e. one specific pin code will enable the watch keeping option in one specific MF/HF transceiver only.

  • Page 50: Menu Tree

    10 Menu tree MENU 1. DSC CALL 1. COAST STATION 1. WITH PHONE NO MMSI Phone no MODE 2. WITHOUT NO MMSI MODE 2. SHIP MMSI MODE 3. AREA CATEGORY MODE Working RADIUS freq 4. DISTRESS 1. ALERT MODE Nature of distress * 2.
  • Page 51 DSC freq DSC freq Working freq DSC freq DSC freq DSC freq MODE Nature of DSC freq distress * DSC freq 0735...

  • Page 52: Installation

    11 Installation 11.1 Compass safe distance Compass safe distance in accordance with ISO/R 694 are given below in metres. Unit Standard Steering 5.4°/H 18°/H Control Unit Handset Cradle 5070 Loudspeaker 0735...
