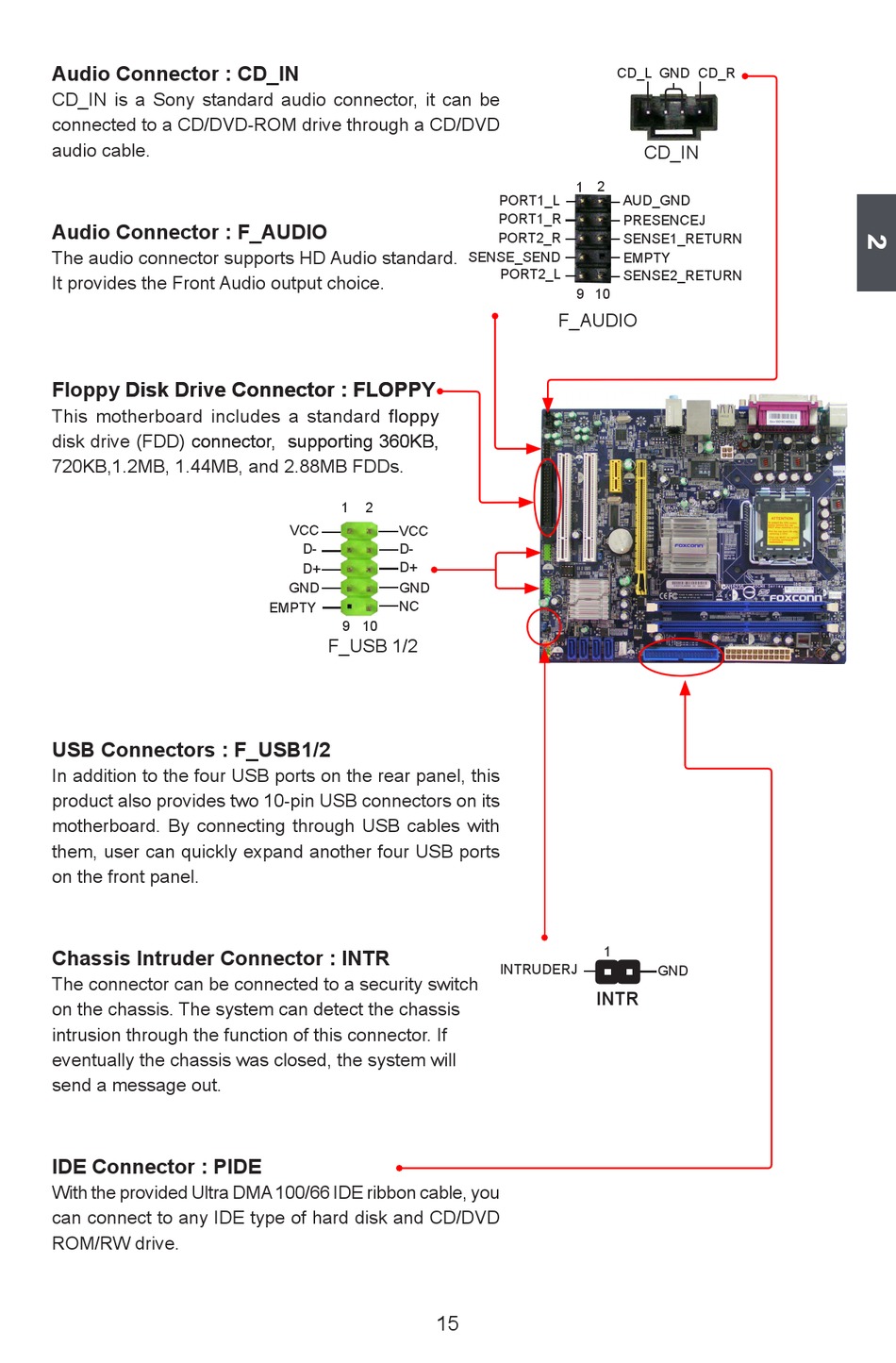

Audio Connector : CD_IN
CD_IN is a Sony standard audio connector, it can be
connected to a CD/DVD-ROM drive through a CD/DVD
audio cable.
Audio Connector : f_AUDIo
The audio connector supports HD Audio standard.
It provides the Front Audio output choice.
floppy Disk Drive Connector : floPP� Disk Drive Connector : floPP�
This motherboard includes a standard floppy
disk drive (FDD) connector, supporting 360�B, connector, supporting 360�B,
720�B,1.2MB, 1.44MB, and 2.88MB FDDs.
USb Connectors : f_USb1/2
In addition to the four USB ports on the rear panel, this
product also provides two 10-pin USB connectors on its
motherboard. By connecting through USB cables with
them, user can quickly expand another four USB ports
on the front panel.
Chassis Intruder Connector : INTR
The connector can be connected to a security switch
on the chassis. The system can detect the chassis
intrusion through the function of this connector. If
eventually the chassis was closed, the system will
send a message out.
IDe Connector : PIDe
�ith the provided Ultra DMA 100/66 IDE ribbon cable, you
can connect to any IDE type of hard disk and CD/DVD
ROM/RW drive.
floppy
1 2
VCC VCC
D- D-
D+
D+
GND GND
NC
EMPTY
9 10
F_USB 1/2
15
CD_L GND CD_R
1 2
PORT1_L AUD_GND
PORT1_R
PRESENCEJ
PORT2_R SENSE1_RETURN
SENSE_SEND EMPTY
PORT2_L
SENSE2_RETURN
9 10
F_AUDIO
1
INTRUDERJ
INTR
CD_IN
GND
