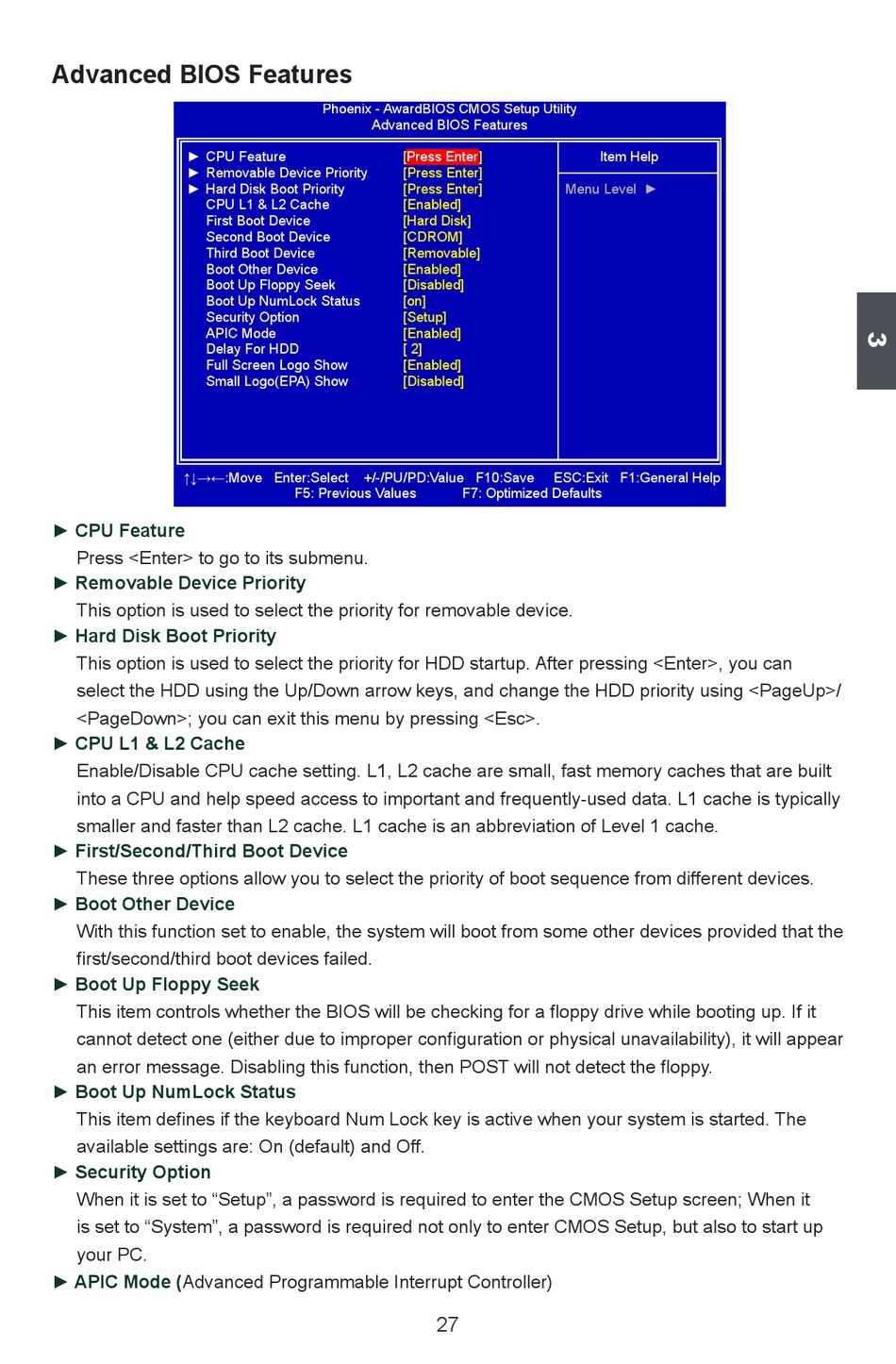

Advanced Bios Features - Foxconn 45CMX User Manual

Advanced bIoS features

► CPU Feature
► Removable Device Priority
► �ard Disk Boot Priority
CPU L1 & L2 Cache
First Boot Device
Second Boot Device
Third Boot Device
Boot Other Device
Boot Up Floppy Seek
Boot Up NumLock Status
Security Option
APIC Mode
Delay For HDD
Full Screen Logo Show
Small Logo(EPA) Show
↑↓→←:Move Enter:Select
► CPU Feature
Press <Enter> to go to its submenu.
► Removable Device Priority
This option is used to select the priority for removable device.
► Hard Disk Boot Priority
This option is used to select the priority for HDD startup. After pressing <Enter>, you can
select the HDD using the Up/Down arrow keys, and change the HDD priority using <PageUp>/
<PageDown>; you can exit this menu by pressing <Esc>.
► CPU L1 & L2 Cache
Enable/Disable CPU cache setting. L1, L2 cache are small, fast memory caches that are built
into a CPU and help speed access to important and frequently-used data. L1 cache is typically
smaller and faster than L2 cache. L1 cache is an abbreviation of Level 1 cache.
► First/Second/Third Boot Device
These three options allow you to select the priority of boot sequence from different devices.
► Boot Other Device
With this function set to enable, the system will boot from some other devices provided that the
first/second/third boot devices failed.
► Boot Up Floppy Seek
This item controls whether the BI�S will be checking for a floppy drive while booting up. If it
cannot detect one (either due to improper configuration or physical unavailability), it will appear
an error message. Disabling this function, then P�ST will not detect the floppy.
► Boot Up NumLock Status
This item defines if the keyboard Num Lock key is active when your system is started. The
available settings are: On (default) and Off.
► Security Option
When it is set to "Setup", a password is required to enter the CMOS Setup screen; When it
is set to "System", a password is required not only to enter CMOS Setup, but also to start up
your PC.
► APIC Mode (Advanced Programmable Interrupt Controller)
Phoenix - AwardBIOS CMOS Setup Utility
Advanced BIOS Features
[Press Enter]
Press Enter
[Press Enter]
[Press Enter]
[Enabled]
[Hard Disk]
[CDROM]
[Removable]
[Enabled]
[Disabled]
[on]
[Setup]
[Enabled]
[ 2]
[Enabled]
[Disabled]
+/-/PU/PD:Value F10:Save
F5: Previous Values F7: �ptimi��ed Defaults
27
Item Help
Menu Level ►
ESC:Exit F1:General �elp
