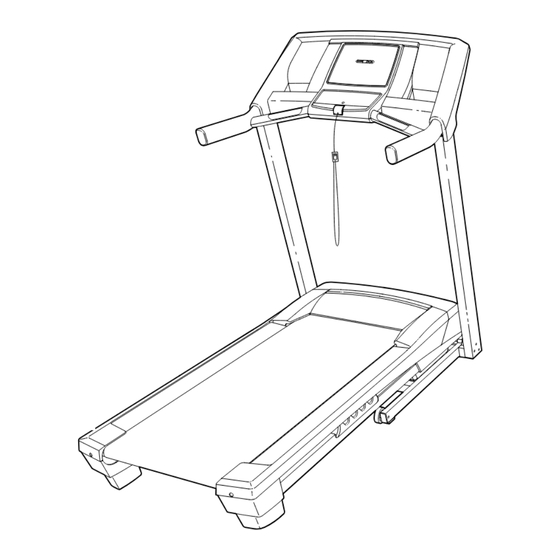

Reebok Challenger 150 User Manual

Hide thumbs Also See for Challenger 150:
Table of Contents

Advertisement

Quick Links

See also: Manual
www.reebokfitness.com
Model No. RBTL60211.0
Serial No.
USER'S MANUAL
Write the serial number in the space
above for reference.
Serial Number
Decal
QUESTIONS?
If you have questions, or if parts
are damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-877-994-4999
Mon.–Fri., 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.reebokservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.

Advertisement

Table of Contents
loading

Related Manuals for Reebok Challenger 150

Summary of Contents for Reebok Challenger 150

  • Page 1 www.reebokfitness.com Model No. RBTL60211.0 Serial No. USER’S MANUAL Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? If you have questions, or if parts are damaged or missing, DO NOT CONTACT THE STORE; please contact Customer Care. IMPORTANT: Please register this product (see the limited warranty on the back cover of this manual)

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARNING DECAL PLACEMENT ............. . .2 IMPORTANT PRECAUTIONS .

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read all important precautions and instructions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
  • Page 4 DANGER: 20. Never leave the treadmill unattended while Always unplug the power it is running. Always remove the key, unplug cord immediately after use, before clean- the power cord, and press the power switch ing the treadmill, and before performing the into the off position when the treadmill is not maintenance and adjustment procedures in use.

  • Page 5: Before You Begin

    Thank you for selecting the new REEBOK reading this manual, please see the front cover of this ® CHALLENGER 150 treadmill. The CHALLENGER 150 manual. To help us assist you, note the product model treadmill provides an impressive selection of features number and serial number before contacting us.

  • Page 6: Part Identification Chart

    PART IDENTIFICATION CHART Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw- ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity used for assembly.

  • Page 7: Assembly

    ASSEMBLY • To hire a service technician to assemble this prod- • To identify small parts, see page 6. uct in your home, call 1-800-445-2480. • Assembly requires the following tools: • Assembly requires two persons. the included hex keys • Place all parts in a cleared area and remove the one adjustable wrench packing materials.
  • Page 8 2. Identify the Left Upright (75), which is marked “Left.” Have a second person hold the Left Upright near the Base (80). See the inset drawing. Tie the wire tie in the Left Upright (75) securely around the end of the Upright Wire (70).
  • Page 9 4. Identify the Left Handrail (71), which is marked “Left.” Remove the tie from the 5/16" Cage Nut (33). If necessary, press the Cage Nut back into place. Hold the Left Handrail (71) near the Left Upright (75). Insert the Upright Wire (70) through the bracket on the bottom of the Left Handrail.
  • Page 10 6. With the help of a second person, hold the con- sole assembly near the Left Upright (75). Console Assembly Connect the Upright Wire (70) to the console wire. See the inset drawing. The connectors should slide together easily and snap into place.
  • Page 11 8. Attach the console assembly to the Left and Right Handrail Tubes (10, 11) with four #8 x 3/4" Console Screws (6); start all four Screws, and then Assembly tighten them. Do not overtighten the Screws. 9. Identify the Left Tray (87) and the Right Tray (88).
  • Page 12 10. Fully tighten the six 3/8" x 3 1/2" Screws (4) (three on each side). 11. Raise the Frame (49) to the position shown. Have a second person hold the Frame until this step is completed. Orient the Storage Latch (51) so that the large barrel and the latch knob are oriented as shown.

  • Page 13: Operation And Adjustment

    OPERATION AND ADJUSTMENT HOW TO CONNECT THE POWER CORD nominal 120-volt circuit capable of carrying 15 or more amps. To avoid overloading the circuit, do Use a Surge Suppressor not plug other electrical devices, except for low- power devices such as cell phone chargers, into Your treadmill, like other electronic equipment, can be the surge suppressor or into an outlet on the same circuit.

  • Page 14: Features

    CONSOLE DIAGRAM FEATURES OF THE CONSOLE You can even listen to your favorite workout music or audio books with the console’s premium stereo sound The treadmill console offers an impressive array of system while you get in shape. features designed to make your workouts more effec- tive and enjoyable.
  • Page 15 HOW TO TURN ON THE POWER HOW TO USE THE MANUAL MODE IMPORTANT: If the treadmill has been exposed to 1. Insert the key into the console. cold temperatures, allow it to warm to room tem- perature before turning on the power. If you do not See HOW TO TURN ON THE POWER at the left.
  • Page 16 4. Change the incline of the treadmill as desired. 6. Measure your heart rate if desired. To change the incline of the treadmill, press the Before using the Incline increase and decrease buttons or one of handgrip heart the numbered Quick Incline buttons. Each time you rate monitor, press the incline increase or decrease button, the first remove the...
  • Page 17 HOW TO USE A WEIGHT-LOSS WORKOUT At the end of each segment, a series of tones will sound. If a different speed or incline setting is 1. Insert the key into the console. programmed for the next segment, the Next Incline and/or Next Speed indicator will alert you.
  • Page 18 HOW TO USE AN IFIT WORKOUT During the workout, the voice of a personal trainer will guide you through the workout. Note: An iFit card is included with this product. To pur- chase additional iFit cards at any time, go to If the speed or incline setting for the current www.iFit.com or call the telephone number on the front segment is too high or too low, you can manu-...
  • Page 19 THE INFORMATION MODE HOW TO USE THE STEREO SOUND SYSTEM The console features an information mode that keeps To play music or audio books through the console’s track of the total number of hours that the treadmill has stereo speakers, you must connect your MP3 player, been used and the total distance that the walking belt CD player, or other personal audio player to the con- has moved.

  • Page 20: How To Fold And Move The Treadmill

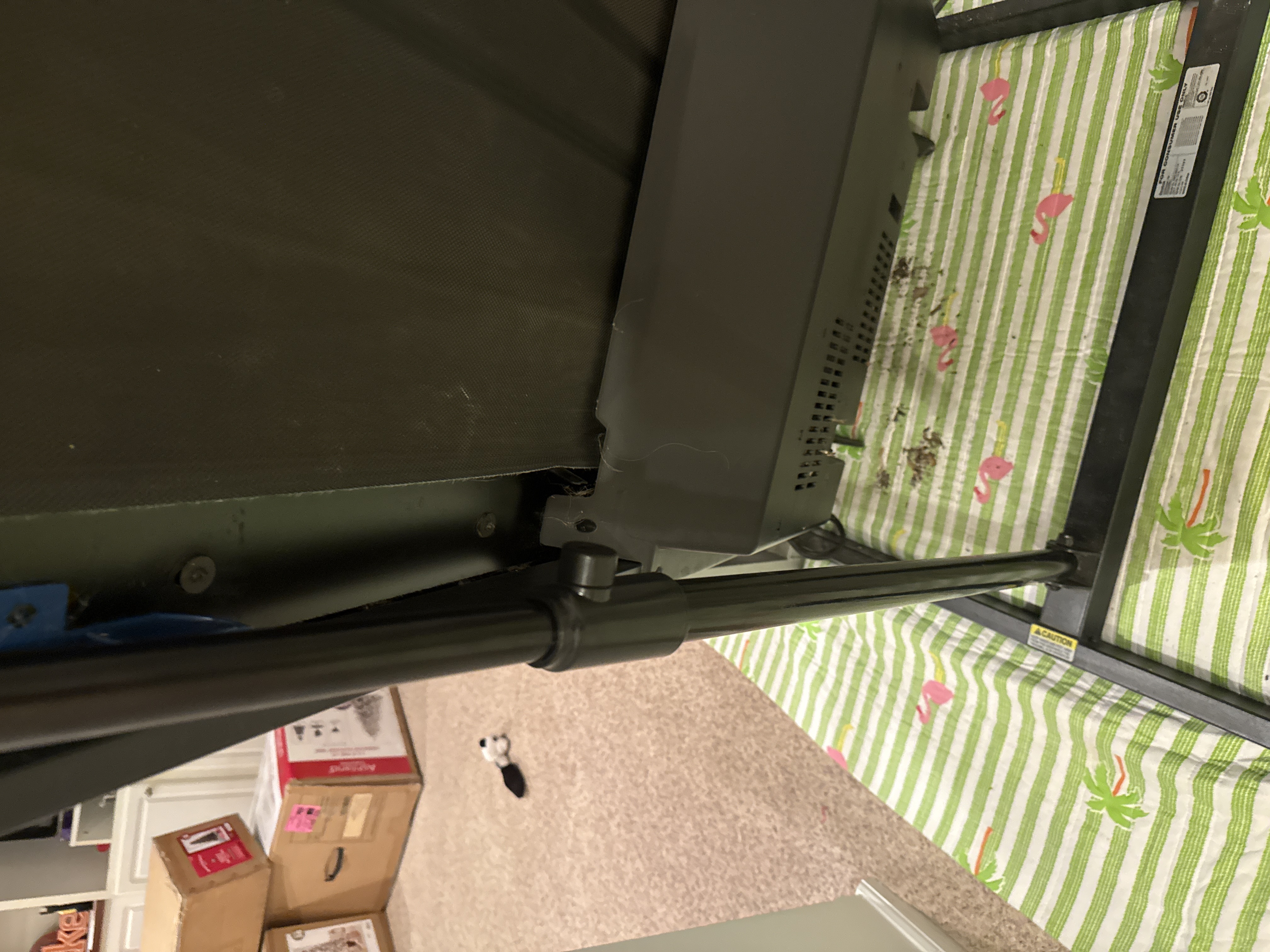

    HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL HOW TO MOVE THE TREADMILL To avoid damaging the treadmill, adjust the incline Before moving the treadmill, fold it as described at the to the lowest position before you fold the treadmill. left.

  • Page 21: Troubleshooting

    TROUBLESHOOTING Most treadmill problems can be solved by follow- b. Make sure that the power cord is plugged in. If the ing the simple steps below. Find the symptom that power cord is plugged in, unplug it, wait for five applies, and follow the steps listed.
  • Page 22 Lower the treadmill (see HOW TO LOWER THE recalibrate the incline system. If the incline does TREADMILL FOR USE on page 20). Remove not begin calibrating, press the Stop button again, the three #8 x 3/4" Screws (6). Carefully slide the and then press the Incline increase or decrease Motor Hood (57) off.
  • Page 23 SYMPTOM: The walking belt is off-center or slips b. If the walking belt slips when walked on, first when walked on remove the key and UNPLUG THE POWER CORD. Using the hex key, turn both idler roller a. If the walking belt is off-center, first remove the screws clockwise, 1/4 of a turn.

  • Page 24: Exercise Guidelines

    EXERCISE GUIDELINES Burning Fat—To burn fat effectively, you must exer- WARNING: cise at a low intensity level for a sustained period of Before beginning this time. During the first few minutes of exercise, your or any exercise program, consult your physi- body uses carbohydrate calories for energy.
  • Page 25 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch —never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.
  • Page 26 NOTES...

  • Page 27: Part List

    PART LIST Model No. RBTL60211.0 R1211A Key No. Qty. Description Key No. Qty. Description #8 x 1/2" Ground Screw Right Foot Rail 3/8" x 2 1/2" Bolt Storage Latch 3/8" Nut Right Rear Foot 3/8" x 3 1/2" Screw Left Rear Foot 3/8"...

  • Page 28: Exploded Drawing

    EXPLODED DRAWING A Model No. RBTL60211.0 R1211A...
  • Page 29 EXPLODED DRAWING B Model No. RBTL60211.0 R1211A...
  • Page 30 EXPLODED DRAWING C Model No. RBTL60211.0 R1211A...
  • Page 31 EXPLODED DRAWING D Model No. RBTL60211.0 R1211A...

  • Page 32: Ordering Replacement Parts

    ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) • the name of the product (see the front cover of this manual) • t he key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING near the end of this manual) LIMITED WARRANTY IMPORTANT: You must register this product within 30 days of the purchase date to avoid added fees for service needed under warranty.
