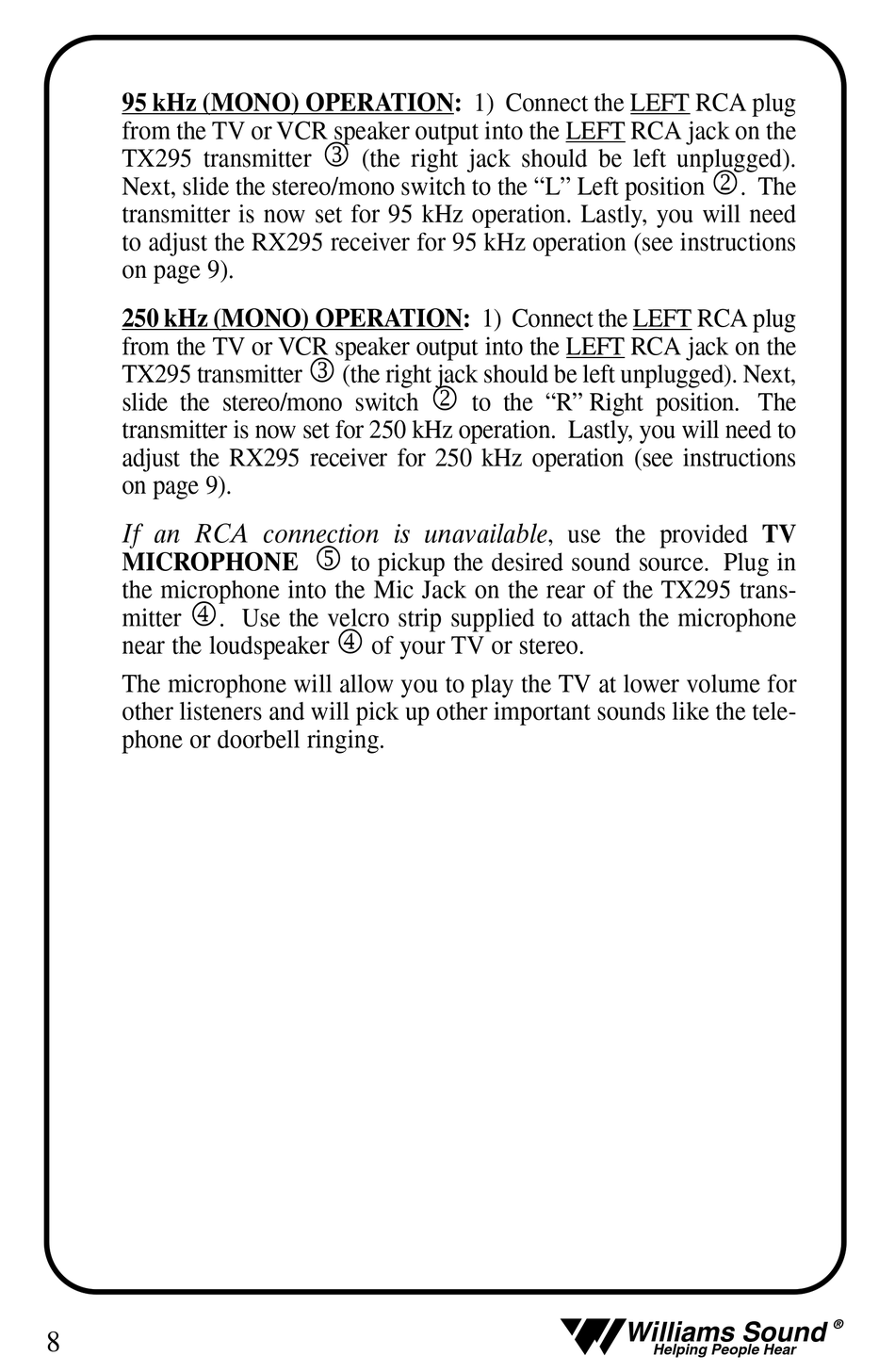

95 kHz (MONO) OPERATION: 1) Connect the LEFT RCA plug
from the TV or VCR speaker output into the LEFT RCA jack on the
3
TX295 transmitter (the right jack should be left unplugged).
2
Next, slide the stereo/mono switch to the "L" Left position . The
transmitter is now set for 95 kHz operation. Lastly, you will need
to adjust the RX295 receiver for 95 kHz operation (see instructions
on page 9).
250 kHz (MONO) OPERATION: 1) Connect the LEFT RCA plug
from the TV or VCR speaker output into the LEFT RCA jack on the
3
TX295 transmitter (the right jack should be left unplugged). Next,
2
slide the stereo/mono switch to the "R" Right position. The
transmitter is now set for 250 kHz operation. Lastly, you will need to
adjust the RX295 receiver for 250 kHz operation (see instructions
on page 9).
If an RCA connection is unavailable, use the provided TV
5
MICROPHONE to pickup the desired sound source. Plug in
the microphone into the Mic Jack on the rear of the TX295 trans-
4
mitter . Use the velcro strip supplied to attach the microphone
4
near the loudspeaker of your TV or stereo.
The microphone will allow you to play the TV at lower volume for
other listeners and will pick up other important sounds like the tele-
phone or doorbell ringing.
®
