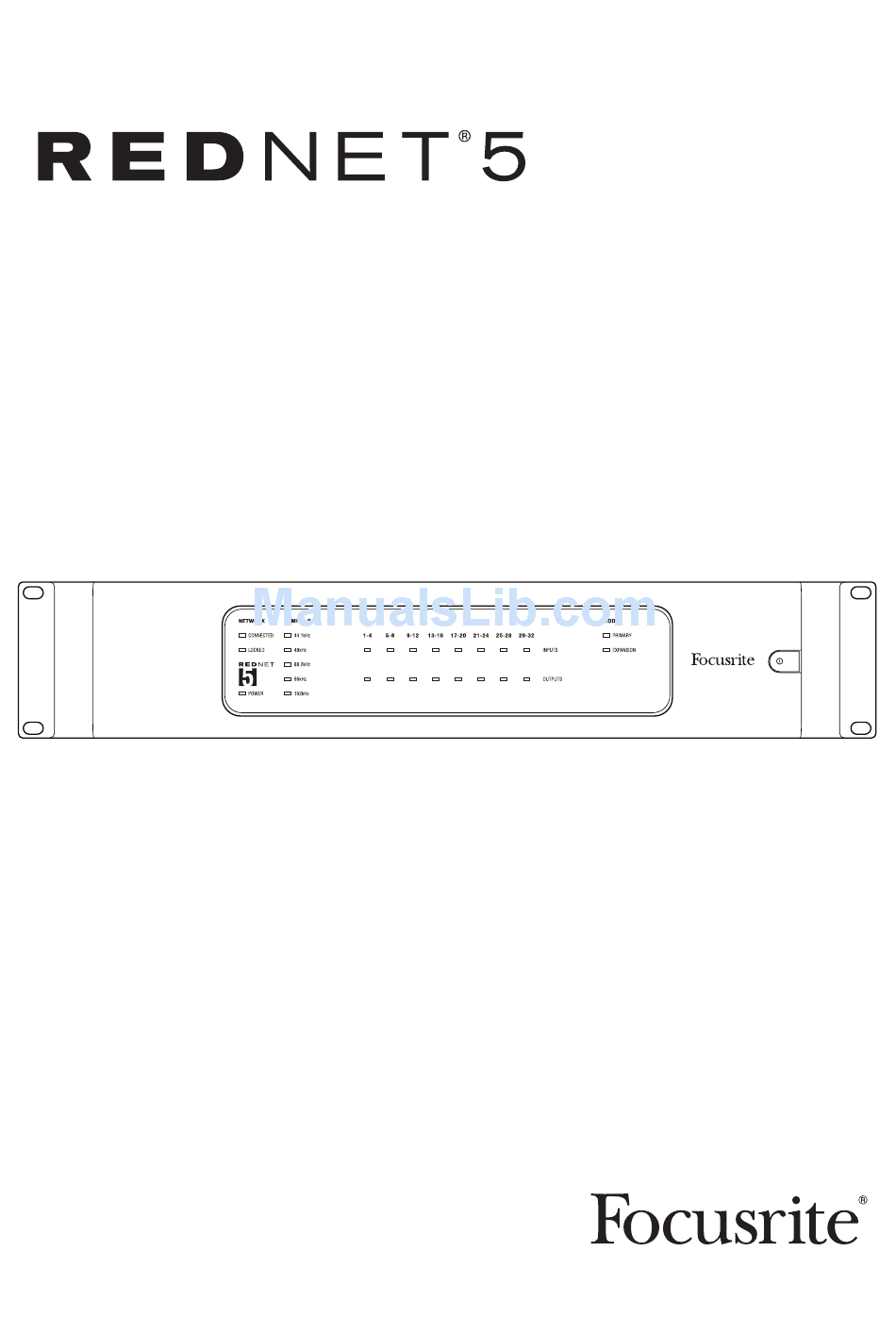

Page 1: User Guide
User Guide www.focusrite.com FA0773-01... -
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. No naked flames, such as lighted candles, should be placed on the apparatus. The appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. Do not use a damaged or frayed power cord. If the mains plug supplying the apparatus incorporates a fuse then it should only be replaced with a fuse of identical or lower rupture value. The apparatus shall be connected to a mains socket outlet with a protective earthing connection. Laite on liitettävä suojamaadoituskoskettimilla va rustettuumpistorasiaan Apparatet må tikoples jordet stikkontakt Apparaten skall anslutas till jordat uttag CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. -
Page 3: Environmental Declaration
• Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. For Canada To the User: This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. RoHS Notice Focusrite Audio Engineering Limited has conformed and its product conforms to the European Union’s Directive 2002/95/EC on Restrictions of Hazardous Substances (RoHS) as well as the following sections of California law which refer to RoHS, namely sections 25214.10, 25214.10.2, and 58012, Health and Safety Code; Section 42475.2, Public Resources Code. -
Page 4: Table Of Contents
Focusrite RedNet Warranty and Service ......... -
Page 5: Introduction

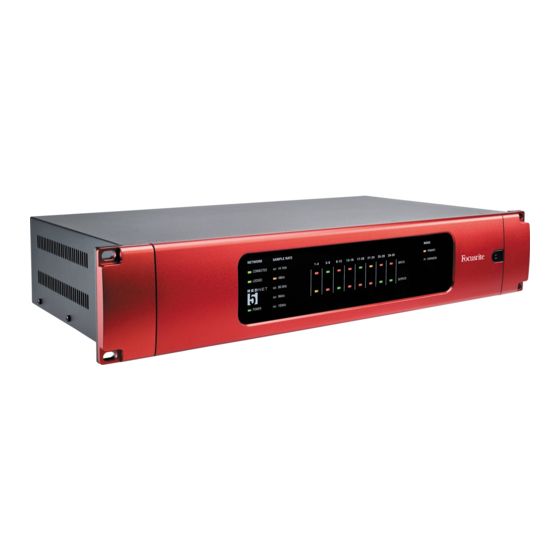

INTRODUCTION Thank you for purchasing this Focusrite RedNet 5. RedNet 5 is a multichannel, bi-directional digital audio interface, which allows an Avid Pro Tools|HD ® system to be connected to a RedNet digital audio networking system. RedNet is a powerful, low latency, digital audio networking system designed specifically for music and recording studio applications. It is based on Audinate’s Dante™, a well-established audio networking technology known for its extreme robustness. Dante - and the RedNet system - is capable of transporting up to 512 channels of bidirectional audio (at 48 kHz sample rate) over standard Cat6 Ethernet cable. RedNet 5 allows any 96 channels of these to be routed in and out of a Pro Tools|HD system, or 192 channels with a Pro Tools|HDX system (at 48 kHz or 96 kHz sample rates; channel counts are halved at 192 kHz). A single RedNet 5 unit acts as a 64 channel (32 inputs plus 32 outputs) digital break-in/break-out box between a Pro Tools system and a RedNet network. Connectivity between RedNet 5 and Pro Tools is via Pro Tool’s standard DigiLink connectors; an adaptor cable is included to allow compatibility with Pro Tools|HD systems that use the Mini DigiLink connectors. Connectivity between RedNet 5 and other RedNet units is via Ethernet, over Cat6 cable. Several other RedNet system interfaces are available which provide physical analogue or digital audio I/O; thus by including one or more RedNet 5 units in a RedNet network, audio sources of any format, at any location in the system can provide inputs to the Pro Tools system, and similarly, Pro Tools outputs can be distributed over the RedNet network to wherever they are required. Up to six RedNet 5 units may be used with a Pro Tools|HDX system (three with Pro Tools|HD). This permits ProTool HDX’s maximum channel count of 192 inputs and 192 outputs (96 with Pro Tools|HD) to be achieved, with all audio being conveyed to/from the RedNet 5 units via the RedNet network. RedNet 5 is also provided with word clock input and output connectors which permit the unit to be either a master or slave to other digital audio devices outside the RedNet network. The various... -
Page 6: About This User Guide
This User Guide applies only to the RedNet 5 Pro Tools|HD/HDX interface. It provides information about installing a RedNet 5 and how to connect it into your studio system. We recommend that you also download a copy of the RedNet System User Guide, using the product registration card provided. This Guide provides a detailed explanation of the RedNet system concept, to help you achieve a thorough understanding of its capabilities. We recommend that all users, including those already experienced in digital audio networking, take the time to read through the System User Guide so that you are fully aware of all the possibilities that RedNet and its software has to offer. If either User Guide does not provide the information you need, be sure to consult www.focusrite.com/rednet, which contains a comprehensive collection of common technical support queries. Box Contents • RedNet 5 unit • RedNet 5 System Guide • 2 m Cat6 Ethernet cable • DigiLink (M) to Mini DigiLink (F) adaptor cable • IEC AC mains cable • Product registration card with Bundle Code. Registration gives access to: • RedNet Control • RedNet drivers (installed with RedNet Control) -
Page 7: Installation Guide
INSTALLATION GUIDE Unit connections and features RedNet 5 - Front Panel 1. AC Power switch 2. INPUTS – inputs to the network (i.e., outputs from Pro Tools|HD). Eight tricolour LEDs indicating the signal level in four consecutively-numbered channels; the colour indicates the highest signal in the four. Individual LEDs indicating signal level at each analogue input: • Green: signal present • Amber: -6 dBFS • Red: 0 dBFS 3. OUTPUTS – outputs from the network (i.e., inputs to Pro Tools|HD). Eight LEDs indicating the signal level in the output channels; these function in the same manner as the input channel LEDs [2] 4. NETWORK status flags – two green LEDs confirming network status: • CONNECTED – illuminates when the unit is connected to an active Ethernet network • LOCKED – illuminates when a valid sync is received via the network or an external source... -
Page 8: Rednet 5 - Rear Panel
RedNet 5 - Rear Panel 8. PRIMARY – DigiLink connector; use a standard Pro Tools I/O cable to link this to a port on the Pro Tools|HD/HDX PCIe card, using the supplied DigiLink-to-Mini DigiLink adaptor cable if necessary. 9. EXPANSION – this can be used when RedNet 5 is operated in Expansion Mode to connect to another Pro Tools|HD I/O interface. In this mode, the RedNet 5 provides only 16 channels of I/O (16 in, 16 out) instead of 32. 10. WORD CLOCK IN – a BNC socket for the connection of a dedicated wordclock sync signal, typically derived from a studio master clock source used to sync all the interconnected digital audio units in the system. 11. WORD CLOCK OUT – a BNC socket from which a wordclock signal may be obtained for connection to other digital audio devices outside the RedNet network. The clock signal available here will be derived from the source selected in software, and may be at the sample rate in use, or at the ‘base’ sample rate of 44.1 kHz or 48 kHz. -
Page 9: Physical Characteristics
Physical Characteristics RedNet 5’s dimensions are shown in the diagram below: RedNet 5 requires 2U of vertical rackspace and at least 350 mm of rack depth, to allow for cables. RedNet 5 weighs 4.6 kg, and for installations in a fixed environment (e.g., a studio), the front panel mounting screws will provide adequate support. If the units are to be used in a mobile situation (e.g., flight-cased for touring, etc.), consideration should be given to using side support rails within the rack. RedNet 5 generates no significant heat, and is cooled by natural convection. Ventilation is via slots in the enclosure at both sides. Do not mount RedNet 5 immediately above any other equipment which generates significant heat, for example, a power amplifier. Also, ensure that when mounted in a rack, the side vents are not obstructed. Power requirements RedNet 5 is mains-powered. It incorporates a ‘Universal’ power supply, which can operate on any AC mains voltage from 100 V to 240 V. The AC connection is made via a standard 3-pin IEC connector on the rear panel. A mating IEC cable is supplied with the unit, which should be terminated with a mains plug of the correct type for your country. The AC power consumption of RedNet 5 is 45 VA. Please note that there are no fuses in RedNet 5, or other user-replaceable components of any type. Please refer all servicing issues to the Customer Support Team (see page 23). -
Page 10: Other Rednet System Components
A RedNet PCIe digital audio interface card and Dante Virtual Soundcard (software) are also available, however these are not required for Pro Tools systems using RedNet 5. Audinate Dante Controller is another software option; using this it is possible, for example, to route audio between RedNet 5 and other RedNet interfaces (such as a RedNet PCIe digital audio interface card or a Dante Virtual Soundcard), if they are used elsewhere in a larger system. RedNet Control and Dante Controller are both available on the Focusrite website, and may be downloaded once the product has been registered. All RedNet system hardware components interconnect via Ethernet, using standard Gigabit switches and Cat5e or Cat6 cable. Please see the RedNet System User Guide for full details. INTERFACING TO PRO TOOLS RedNet 5 units are connected to a Pro Tools|HD/HDX system in the same manner as Avid® Pro Tools|HD I/O audio interfaces, using standard DigiLink cables (not supplied). - Page 11 PRIMARY Pro Tools|HDX card DigiLink to Mini DigiLink Adaptor DigiLink cable Mac/PC Mini DigiLink cable The diagrams below show two different methods of connecting two RedNet 5 units to a Pro Tools|HDX system; the only difference for a Pro Tools|HD system would be that the adaptor cable may be omitted: RedNet 5 #1 PRIMARY Pro Tools|HDX card RedNet 5 #2 PRIMARY DigiLink to Mini DigiLink Adaptor Mac/PC Mini DigiLink cable RedNet 5 #1...
- Page 12 If multiple RedNet 5s are in use, each is linked to a separate port on the Pro Tools cards. HDX System shown for simplicity: RedNet 5 #1 Pro Tools|HDX cards PRIMARY RedNet 5 #2 PRIMARY RedNet 5 #3 PRIMARY Mac/PC RedNet 5 #4 PRIMARY RedNet 5 #5 PRIMARY RedNet 5 #6 PRIMARY DigiLink to Mini DigiLink Adaptor Mini DigiLink cable...
-
Page 13: Pro Tools Setup
Default button. This will ensure that the RedNet 5 is correctly configured for use with Pro Tools. Note that this action is not required when using RedNet 5 for the first time, as the unit was correctly pre-configured at time of manufacture. Sample Rate RedNet 5 units will use the same sample rate that the Pro Tools session is running at. It is important that any devices routed to or from RedNet 5 are also set to the same sample rate. In simple systems, where the entire network is running at the same sample rate, RedNet Control can be used to globally change the sample rate of all units. If a more complex system is in use, where different units are running at different sample rates, please ensure that the units’ sample rates are correctly set using Dante Controller. Using RedNet 5 with other Pro Tools|HD interfaces RedNet 5 interfaces may be freely intermixed with other Pro Tools|HD I/O audio interfaces. However, it is important to remember that each Pro Tools|HD I/O audio interface allows for 16 channels bi- directionally, whereas a RedNet 5 allows for 32 channels. In most situations, RedNet 5 will be connected directly to a DigiLink port on the Pro Tools|HD or HDX card and will be used in Primary Mode (full 32 channel operation). However, if a free port is not available, then RedNet 5 can be used in Expansion Mode. This mode reduces the available channels in RedNet 5 to 16 and permits the connection of an existing 16 channel Pro Tools|HD interface to its EXPANSION port; therefore providing a combined total of 32 channels at the HD or HDX card’s port. This is achieved by selecting Expansion Mode in RedNet Control. See page 18 for more details. When connecting devices in Expansion Mode, the Pro Tools|HD card should be connected to the PRIMARY port of the first interface. Its Expansion port should then connect to the PRIMARY port of... -
Page 14: Setting The Clock Source
Other RedNet RedNet 5 Interface Other RedNet RedNet 5 Interface Other RedNet Interface Ethernet cable Set same RedNet 5 as Set one RedNet 5 as DigiLink cable Pro Tools clock source Network Master In this situation, one or more RedNet 5 units are the only audio interfaces on the Pro Tools system. 1. Any of the RedNet units may be selected in RedNet Control as the network master, but it is recommended that one of the RedNet 5 units is chosen. 2. In Pro Tools, any of the RedNet 5s may be selected to be the clock source, but it is recommended that the unit set as the RedNet network master in Step 1 should also be the Pro Tools clock... - Page 15 Pro Tools|HD I/O audio interfaces may be used as audio I/O on the same Pro Tools system as RedNet 5s. Choose the audio interface you wish to be the clock source. This may be either a RedNet 5 or a Pro Tools audio interface. If a RedNet 5 is to be the clock source: 1. It is recommended that the same Rednet 5 is set in RedNet Control as the RedNet network master .
- Page 16 Pro Tools HD I/O DigiLink cable Sync Optional Set a RedNet 5 as Set the other RedNet unit as Network Master Pro Tools clock source In this system, another RedNet interface on the RedNet network is the clock master (i.e., not a RedNet 5). For example, this situation might arise if there is also a RedNet 3 resolving its clock from...
-
Page 17: Rednet Control
REDNET CONTROL Hosting RedNet Control RedNet Control may be installed on the same computer as that hosting Pro Tools, or on a different one. This choice will be generally dictated by the scale and topology of the RedNet network. If you are adding RedNet 5 to an existing RedNet network, you will already have RedNet Control installed on the network’s host computer. However, before attempting to add a RedNet 5, you should download and install the latest version of RedNet Control from www.focusrite.com. Note that you will need to register your hardware first in order to access the download. See page 6. Using RedNet Control RedNet Control can be configured to run in one of two ‘host’ modes: RedNet PCIe/DVS or RedNet 5*. When RedNet 5 units are in use, RedNet 5 mode must be selected. To do this: • Select Host Mode from RedNet Control’s Settings menu • Select the RedNet 5 option Three panes will be displayed. The top pane (the host pane) is reserved for virtual representations of the RedNet 5 units on the network. The virtual RedNet 5 units are displayed in alphabetical order, according to the name assigned to each unit (names can be entered at the top left of each RedNet 5 unit). The host pane can be displayed or hidden from the Settings menu. The second and third panes are reserved for other RedNet units on the network (i.e., units other than RedNet 5s). -
Page 18: Rednet 5 Control Panel
RedNet 5 Control Panel Full details can be found in the RedNet System User Guide. The notes below describe only those aspects of RedNet Control which are specific to RedNet 5. For all other RedNet Control features, please see the RedNet System User Guide. Port activity: Each of RedNet 5’s 32 inputs and 32 outputs has a virtual tricolour LED which confirms the audio signal level in that channel. These LEDs effectively mimic the front panel LEDs; the colour indications are: • Green: signal present • Amber: -6 dBFS • Red: 0 dBFS Note if the number of channels is reduced due to higher sample rates, fewer LEDs will appear active. Tools menu • Expansion Mode – when enabled, the RedNet 5 appears to Pro Tools as only one 16-in/16-out interface, instead of the normal two. This allows another Pro Tools|HD I/O audio interface to be connected to the RedNet 5’s EXPANSION port, or vice versa. See page 13. • Clock Source – lets the user select the source of word clock sync. The options available are: • Internal – sync is derived from RedNet 5’s own internal clock • Wordclock – select this when using an external master clock or when RedNet 5 is to be locked to some other piece of digital audio equipment outside the RedNet network. • Loop Sync – select this when a Pro Tools|HD interface is being used as the clock source. The LOOP SYNC OUT of the Pro Tools|HD interface should be connected to the LOOP SYNC IN of the chosen RedNet 5 before selecting LOOP SYNC as the clock source. • Wordclock Termination – when set, applies a 75 ohm termination to the Wordclock Out connector. This termination should be enabled if the RedNet 5 is the “last” in a daisy-chain of... - Page 19 • Base sample rate – not all digital audio equipment is able to clock to higher sample rates, so selecting this option will output word clock at 48 kHz if the sample rate is set to 48, 96 or 192 kHz, and to 44.1 kHz if the sample rate is set to 44.1 or 88.2 kHz. • Hardware Emulation – this should be set to the mode determined by the type of Pro Tools|HD system in use: • 192 I/O – select this option when using a Pro Tools|HD software version prior to 8.1 • HD I/O – select this option when using Pro Tools|HD software versions 8.1 and above...
-
Page 20: Appendix
APPENDIX Connector pinouts Pro Tools interfaces Connector type: 2 x DigiLink female Applies to: PRIMARY, EXPANSION Ethernet connector Connector type: RJ-45 receptacle Applies to: ETHERNET Cat6 Core White + Orange Orange White + Green Blue White + Blue Green White + Brown Brown Word Clock I/O (Ext sync) Connector type: 2 x 75 ohm BNC sockets Applies to: WORD CLOCK IN and OUT Loop Sync I/O Connector type: 2 x 75 ohm BNC sockets Applies to: LOOP SYNC IN and OUT... -
Page 21: Performance Specifications
Performance Specifications Digital Performance Supported sample rates 44.1 / 48 / 88.2 / 96 / 192 kHz Internal clock sources Local, Word clock input, Loop Sync External word clock range Sample rate ±7.5% Front Panel Indicators Power Green Network connected Green Sync lock Green Sample Rate Yellow x 5 Yellow x 2 Mode Tricolour x 16 (each LED represents four channels) Green: signal present Signal present Amber: -6 dBFS, Red: 0 dBFS General Internal, Universal type: 90–260 V... -
Page 22: Focusrite Rednet Warranty And Service
Focusrite RedNet Warranty and Service All Focusrite products are built to the highest standards and should provide reliable performance for many years, subject to reasonable care, use, transportation and storage. Very many of the products returned under warranty are found not to exhibit any fault at all. To avoid unnecessary inconvenience to you in terms of returning the product please contact Focusrite support. In the event of a Manufacturing Defect becoming evident in a product within 12 months from the date of the original purchase Focusrite will ensure that the product is repaired or replaced free of charge. A Manufacturing Defect is defined as a defect in the performance of the product as described and published by Focusrite. A Manufacturing Defect does not include damage caused by post-purchase transportation, storage or careless handling, nor damage caused by misuse. While this warranty is provided by Focusrite, the warranty obligations are fulfilled by the distributor responsible for the country in which you purchased the product. In the event that you need to contact the distributor regarding a warranty issue, or an out-of-warranty chargeable repair, please visit: www.focusrite.com/distributors The distributor will then advise you of the appropriate procedure for resolving the warranty issue. In every case it will be necessary to provide a copy of the original invoice or store receipt to the distributor. In the event that you are unable to provide proof of purchase directly then you should contact the reseller from whom you purchased the product and attempt to obtain proof of purchase from them. -
Page 23: Customer Support And Unit Servicing
Customer Support and Unit Servicing You can contact Focusrite Customer Support at: Email: supportteam@focusrite.com Phone (UK): +44 (0)1494 462246 Phone (USA): +1 (310) 322-5500 Troubleshooting If you are experiencing problems with your RedNet 5, we recommend that in the first instance, you visit our Support Answerbase at: www.focusrite.com/answerbase Copyright and Legal Notices Focusrite is a registered trade mark and RedNet is a trade mark of Focusrite Audio Engineering Limited. Avid®, Pro Tools® and Pro Tools|HD are trademarks or registered trademarks of Avid Technology, Inc. or its subsidiaries in the United States and/or other countries. 2013 © Focusrite Audio Engineering Limited. All rights reserved.
