Summary of Contents for Focusrite REDNET 1
-

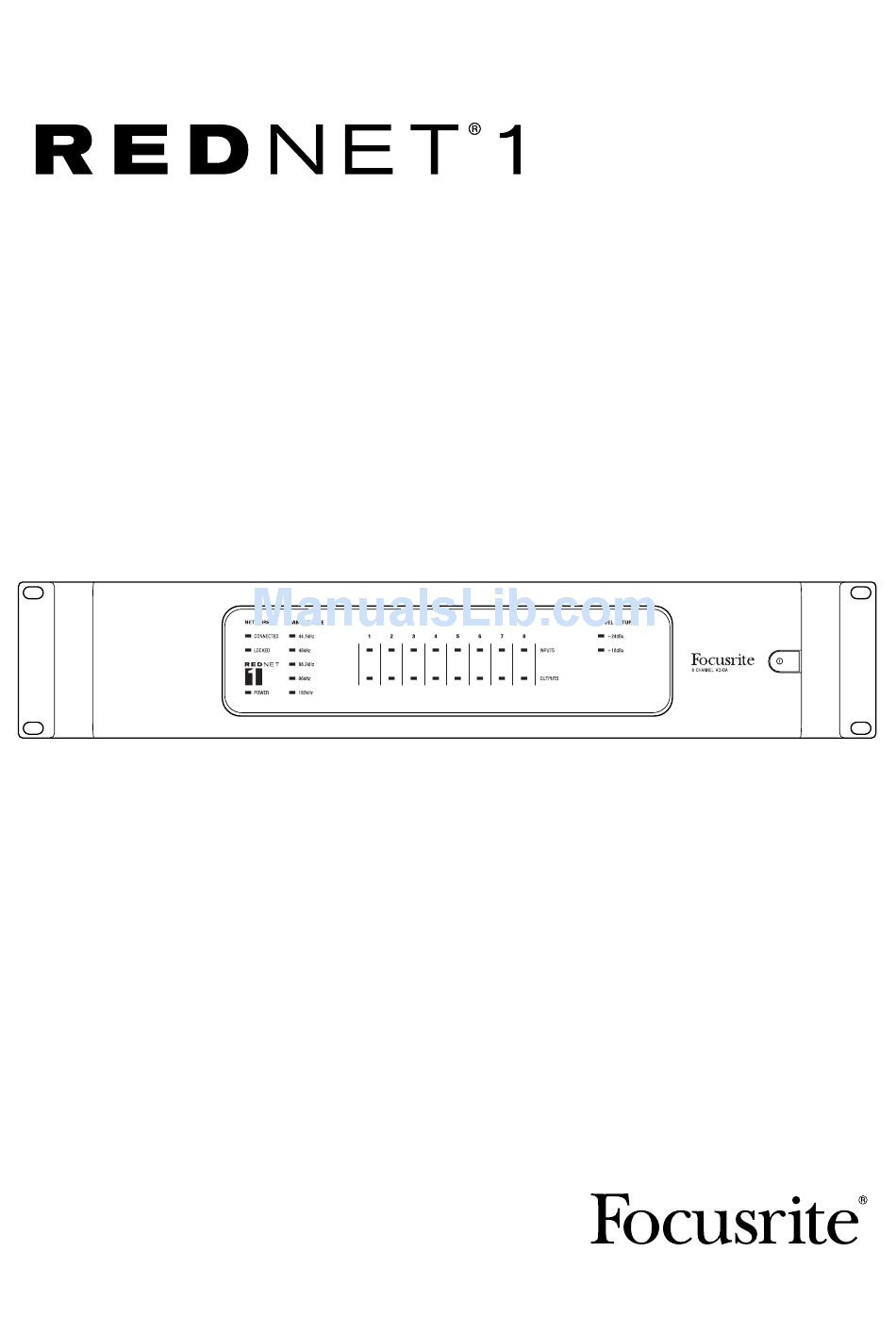

Page 1: User Guide
User Guide www.focusrite.com FA0769-02... -
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 3: Environmental Declaration
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE AND OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THIS APPARATUS. ENVIRONMENTAL DECLARATION Compliance Information Statement: Declaration of Compliance procedure Product Identification: Focusrite RedNet Responsible party: American Music and Sound Address: 4325 Executive Drive Suite 300 Southaven MS 38672 Telephone: 800-431-2609 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 4: Table Of Contents
Focusrite RedNet Warranty and Service ......... -
Page 5: Introduction
INTRODUCTION Thank you for purchasing this Focusrite RedNet 1. RedNet 1 is a multichannel, bidirectional analogue interface for use with a RedNet digital audio networking system. RedNet is a powerful, low latency, digital audio networking system designed specifically for music, recording studio and broadcast applications. It is based on Audinate’s Dante™, a well-established audio networking technology known for its extreme robustness. Dante - and the RedNet system - is capable of transporting up to 512 channels of bidirectional audio (at 48 kHz sample rate) over a single Gigabit Ethernet link. The number of channels available in your DAW will depend on the host method being used. RedNet 1 provides eight analogue inputs and eight analogue outputs. A-D and D-A conversion is 24-bit at sample rates of up to 192 kHz, and up to 119 dB of dynamic range is achievable. JetPLL™... -
Page 6: Box Contents
Box Contents • RedNet 1 unit • RedNet 1 User Guide (this manual) • RedNet System User Guide • 2 m Cat6 Ethernet cable • IEC AC mains cable • Product registration card with Bundle Code. Registration gives access to: • RedNet Control • RedNet drivers (installed with RedNet Control) • Audinate Dante Controller (installed with RedNet Control) • Dante Virtual Soundcard token and download instructions • RedNet 1 User Guide (this document) – PDF format • RedNet System User Guide – PDF format... -
Page 7: Installation Guide
INSTALLATION GUIDE Unit connections and features RedNet 1 - Front Panel 1. AC Power switch 2. Tricolour LEDs indicating signal level at each A-D and D-A converter: • Green – signal level above -42 dBFS • Yellow – signal level above -6 dBFS • Red – signal level is 0 dBFS (digital clipping) 3. NETWORK status flags – two green LEDs confirming network status: • CONNECTED – illuminates when the unit is connected to an active Ethernet network • LOCKED – illuminates when a valid sync is received via the network 4. SAMPLE RATE indication – five yellow LEDs; only one of these (44 .1 kHz, 48 kHz, 88 .2 kHz, 96 kHz, 192 kHz) will be lit at a time, to confirm the sample rate that the system is running at. 5. LEVEL SETUP indication – two yellow LEDs; one of these will be illuminated to confirm the analogue reference level set for the unit, +24 dBu or +18 dBu. This is the analogue level which equates to the internal maximum digital clip level of 0 dBFS. -
Page 8: Rednet 1 - Rear Panel
RedNet 1 - Rear Panel 6. ANALOGUE INPUTS 1-8 – 25-pin female Dsub connector for connecting up to 8 analogue sources to the RedNet system. All inputs are electronically balanced. See page 11 for connector details. 7. ANALOGUE OUTPUTS 1-8 – 25-pin female Dsub connector with 8 analogue outputs from the RedNet system. All outputs are electronically balanced. See page 11 for connector details. -
Page 9: Physical Characteristics
Physical Characteristics RedNet 1’s dimensions are shown in the diagram below: 247.5mm / 9.74" 465.0mm / 18.30" 76.2mm / 3" RedNet 1 requires 2U of vertical rackspace and at least 350 mm of rack depth, to allow for cables. RedNet 1 weighs 4.12 kg and for installations in a fixed environment (e.g., a studio), the front panel mounting screws will provide adequate support. If the units are to be used in a mobile situation (e.g., flight-cased for touring, etc.), consideration should be given to using side support rails within the rack. RedNet 1 generates no significant heat, and is normally cooled by natural convection, though an internal cooling fan is fitted. We recommend that the unit should not be used in locations where the ambient temperature is greater than 30°C. However, if this is unavoidable, the fan can be turned on and off from RedNet Control. -
Page 10: Other Rednet System Components
OTHER REDNET SYSTEM COMPONENTS The RedNet hardware range includes various types of I/O interface and a PCIe digital audio interface card which is installed in the system’s host computer. All the I/O units can be considered as “Break- Out” (and/or “Break-In”) boxes to/from the network, and all are built in mains-powered, 2U 19” rackmounting housings. There are also three software items, RedNet Control (see below), Dante Controller and Dante Virtual Soundcard. USING REDNET CONTROL A virtual depiction of RedNet 1 will appear on-screen in RedNet Control when a unit is included in the active system. Metering: Each input and output has 3 virtual LEDs corresponding to the levels indicated by the tricolour LEDs on the physical front panel. These illuminate at -42 dBFS, -6 dBFS and 0 dBFS respectively. -
Page 11: Appendix
APPENDIx Connector pinouts 8-channel analogue input and output connectors Connector type: 25-pin female Dsub Applies to: ANALOGUE INPUTS 1-8 ANALOGUE OUTPUTS 1-8 Signal Signal Ch 8 ‘hot’ (+) Ch 8 ‘cold’ (-) Ch 8 screen Ch 7 ‘hot’ (+) Ch 7 cold (-) Ch 7 screen Ch 6 ‘hot’ (+) Ch 6 ‘cold’ (-) Ch 6 screen Ch 5 ‘hot’ (+) Ch 5 cold (-) Ch 5 screen Ch 4 ‘hot’ (+) Ch 4 ‘cold’ (-) Ch 4 screen Ch 3 ‘hot’ (+) Ch 3 cold (-) Ch 3 screen Ch 2 ‘hot’ (+) Ch 2 ‘cold’ (-) Ch 2 screen Ch 1 ‘hot’ (+) Ch 1 cold (-) Ch 1 screen... - Page 12 Ethernet connector Connector type: RJ-45 receptacle Applies to: ETHERNET Cat6 Core White + Orange Orange White + Green Blue White + Blue Green White + Brown Brown...
-
Page 13: Performance Specifications
Performance Specifications Inputs Analogue line inputs Connector 25-way female Dsub, wired to AES 59 0 dBFS reference levels +18 or +24 dBu (switchable) Frequency response 20 Hz – 20 kHz ±0.05 dB THD+N < 0.001% unweighted; -1 dBFS input, 20 Hz – 22 kHz Dynamic range 119 dB ‘A’-weighted (-60 dBFS method) Converter dynamic range 120 dB Signal-to-noise ratio 119 dB ‘A’-weighted; 20 Hz – 20 kHz Outputs Analogue line outputs Connector 25-way female Dsub, wired to AES 59 0 dBFS reference levels +18 or +24 dBu (switchable) Frequency response 20 Hz – 20 kHz ±0.15 dB < 0.001% unweighted; -1 dBFS input, 20 Hz – 22 kHz THD+N Dynamic Range 119 dB ‘A’-weighted (-60 dBFS method) Converter dynamic range 120 dB Signal-to-noise ratio 119 dB ‘A’-weighted; 20 Hz – 20 kHz Crosstalk Input or Output to Input <-90 dB (all other channels at 0 dBFS) <-100 dB (all other channels at 0 dBFS) Input or Output to Output Digital Performance Supported sample rates... -
Page 14: Focusrite Rednet Warranty And Service
Focusrite RedNet Warranty and Service All Focusrite products are built to the highest standards and should provide reliable performance for many years, subject to reasonable care, use, transportation and storage. Very many of the products returned under warranty are found not to exhibit any fault at all. To avoid unnecessary inconvenience to you in terms of returning the product please contact Focusrite support. In the event of a Manufacturing Defect becoming evident in a product within 12 months from the date of the original purchase Focusrite will ensure that the product is repaired or replaced free of charge. A Manufacturing Defect is defined as a defect in the performance of the product as described and published by Focusrite. A Manufacturing Defect does not include damage caused by post-purchase transportation, storage or careless handling, nor damage caused by misuse. Whilst this warranty is provided by Focusrite the warranty obligations are fulfilled by the distributor responsible for the country in which you purchased the product. In the event that you need to contact the distributor regarding a warranty issue, or an out-of-warranty chargeable repair, please visit: www.focusrite.com/distributors The distributor will then advise you of the appropriate procedure for resolving the warranty issue. In every case it will be necessary to provide a copy of the original invoice or store receipt to the distributor. In the event that you are unable to provide proof of purchase directly then you should contact the reseller from whom you purchased the product and attempt to obtain proof of purchase from them.
