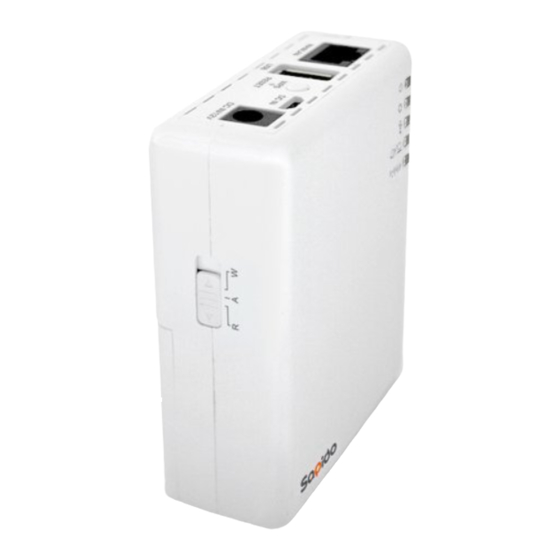

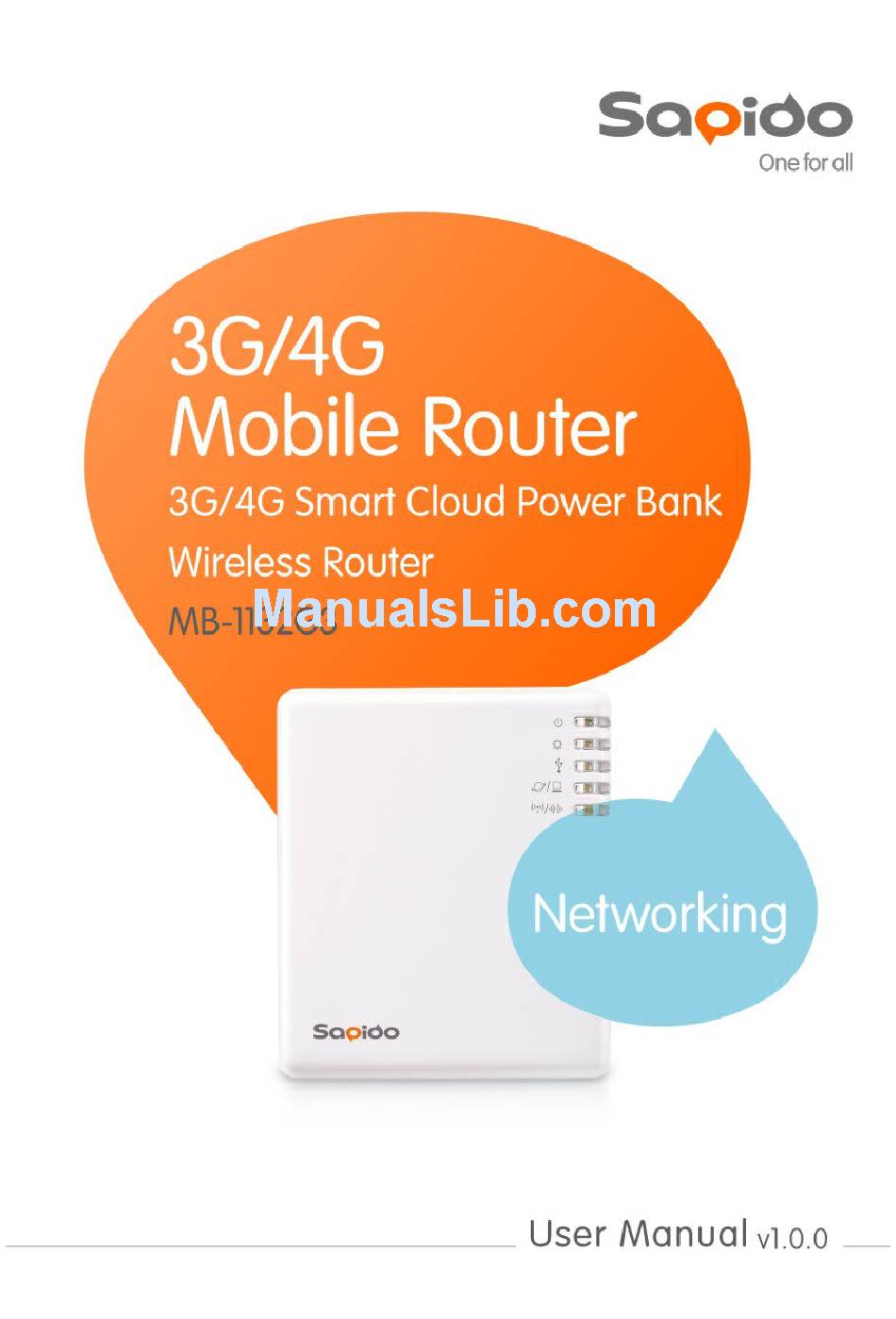

Sapido MB-1132G3 User Manual

3g/4g smart cloud power bank wireless router
Hide thumbs Also See for MB-1132G3:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the MB-1132G3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sapido MB-1132G3

Summary of Contents for Sapido MB-1132G3

  • Page 2: Important Note

    FCC Caution FCC Part 15.19 Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to • the following two conditions: ◦ this device may not cause harmful interference and ◦ this device must accept any interference received, including interference that may cause undesired operation This device and its antenna(s) must not be co-located or operating in •...
  • Page 3 Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which • the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. • CE Statement of Conformity Our product has been tested in typical configuration by Ecom Sertech Corp and was found to comply with the essential requirement of “Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic...
  • Page 4 1 Introduction Product Appearance 1.1 LED Indicator Status Description： Function Color Status Description Power Green Power is being applied to this indication product (Battery or external DC power supplies the system power ) System Green System is ready to work status Blinking Reset / Firmware upgrade in...
  • Page 5 2 System and Network Setup With connect to a 3.5G、LTE, and Smart phone, this MB-1132G3 allows user to share the wireless network on a moving vehicle and be an alternative or backup to fixed broadband as well. Internet Account for XDSL/Cable Modem/3.5G •...
  • Page 6 web management interface in this section. Input User Name and New Password, then input confirm password again. •...

  • Page 8: Function Introduction

    3 Function introduction Open a Web browser, and enter http://192.168.1.1 (Default Gateway) Download pdapp Logout Status page 3.1 Home menu Click Home button icon to enter MENU as below.
  • Page 9 When you connect to the internet wirelessly through PC and wireless device without wireless LAN function equipped. Firmware Upgrade This function allows you upgrade the MB-1132G3 firmware to new version. Please note do not power off the device during the upload because it may crash the system.
  • Page 10 Click Internet Setup icon to enter WAN setup as below. The Internet Setup is depended on the service that you contract with the provider. The MB-1132G3 provides five selections for the Internet Mode type, PPPoE, DHCP, Static IP , PPTP and L2TP、WiFi ISP、3.5G、Smart Phone、LTE.
  • Page 11 3.2.1 PPPoE Item Description User Name Input your user name provided by your ISP. If you don’t know, please check with your ISP. Password Input the password provided by your ISP. Wireless AP Turn on/off wireless SSID Service Set identifier, users can define to any or keep as default.
  • Page 12 Description MAC type Select "Universal” or “Specific" Universal：clone controller PC mac address as MB- 1132G3 WAN mac address Specific：use MB-1132G3 itself mac address Wireless AP Turn on/off wireless SSID Service Set identifier, users can define to any or keep as default.
  • Page 13 3.2.3 Static IP Item Description IP Address Enter the IP address which is provided by your ISP. Subnet Mask Please enter the Subnet Mask address Gateway Input ISP Default Gateway Address. Input DNS information which is provided by your ISP Wireless AP Turn on/off wireless SSID...
  • Page 14 3.2.4 PPTP Item Description Address Mode Select "Dynamic" or "Static" Server IP Address Input your server IP address provided by your ISP. If you don’t know, please check with your ISP. User Name Input PPTP account provided by your ISP. Password Input the password provided by your ISP.
  • Page 15 3.2.5 L2TP Item Description Address Mode Select "Dynamic" or "Static" Server IP Address Input your server IP address provided by your ISP. If you don’t know, please check with your ISP. User Name Input LPTP account provided by your ISP. Password Input the password provided by your ISP.
  • Page 16 3.2.6 WiFi ISP MB-1132G3 WAN get IP address from other wireless AP and LAN/Wireless LAN client get IP from MB-1132G3 Item Description Survey List all available wireless AP Pre-Shared Key Input the wireless AP key which you want to connect...
  • Page 17 Mode Input your user name provided by your ISP. If you don’t know, please check with your ISP. Network Traffic Monitor MB-1132G3 will record 3.5G traffic usage volume Limit Internet Traffic User can limit 3.5G traffic usage volume to prevent...
  • Page 18 3.2.8 Smartphone Item Description Service MB-1132G3 support 4 kinds of smart phone、Nokia、Black Berry、Sansung、iPhone and Andriod phone iPhone and Andriod phone do not need to do any setting，all you need is to turn on hotspot function and connect it to USB port...
  • Page 19 as default. Encryption Select wireless encryption type form the drop-down list.
  • Page 20 Mode Input your user name provided by your ISP. If you don’t know, please check with your ISP. Network Traffic Monitor MB-1132G3 will record 3.5G traffic usage volume Limit Internet Traffic User can limit 3.5G traffic usage volume to prevent...

  • Page 21: Ap（Hw Switch

    3.3 AP（HW switch） If a router is already set at the house, and you want to make the wireless LAN communication. This mode does not support WAN、DHCP、NAT、DDNS、QoS、Firewall、Static/Dynamic route、VPN Server features Item Description Wireless AP Turn on/off wireless SSID Service Set identifier, users can define to any or keep as default.
  • Page 22 Survey List all available wireless AP Pre-Shared Key Input the wireless AP key which you want to connect Extend SSID Provide SSID for wireless client which want to connect to MB-1132G3 Encryption Select wireless encryption type form the drop-down list.
  • Page 23 3.5 Firmware Upgrade This function can upgrade the firmware of the router. There are two methods for user upgrade firmware: Auto upgrade and Manual upgrade. Caution: To prevent that firmware upgrading is interrupted by other wireless signals and causes failure. We recommend users to use wired connection during upgrading.
  • Page 24 3.6 Parental Control Parental Control provide URL Filtering and MAC Filter Schedule for setup 3.6.1 URL Filtering URL Filtering is used to restrict users to access specific websites in internet Item Description Enable URL Filtering Please select Enable MAC Filtering to filter MAC addresses URL Address Please enter the MAC address that needs to be filtered.
  • Page 25 3.6.2 MAC Filter Schedule When enabled, filtering will be based on the MAC address of LAN computers. Any computer with its MAC address on this list will be blocked from accessing the Internet.
  • Page 26 3.6.3 Wireless Schedule Wireless available schedule, this page allows you setup the wireless schedule rule. Please do not forget to configure systeim before enable this feature...
  • Page 27 Office control provide Multiple AP、Wireless Access Control、IP Filtering、IP Binding、QoS 3.7.1 Multiple AP The MB-1132G3 can register up to 4 SSIDs (wireless LAN group). It can be used as if there are multiple wireless LAN access points with one product. Item...
  • Page 28 3.7.2 Wireless Access Control Access Control allows user to block or allow wireless clients to access this router. Users can select the access control mode, then add a new MAC address with a simple comment and click on “Apply Change” to save the new addition. To delete a MAC address, select its corresponding checkbox under the Select column and click on “Delete Selected”...
  • Page 29 3.7.4 IP Binding This function allows you reserve IP addresses, and assign the same IP address to the network device with the specified MAC address any time it requests an IP address. This is almost the same as when a device has a static IP address except that the device must still request an IP address from the DHCP server.
  • Page 30 3.7.5 QoS The QoS can let you classify Internet application traffic by source/destination IP address and port number. To assign priority for each type of application and reserve bandwidth can let you have a better experience in using critical real time services like Internet phone, video conference …etc.

  • Page 31: File Menu

    3.8 File Menu Only support one USB disk for Samba and FTP 3.8.1 Samba Storage Item Description Share mode User can access USB disk without account and password User mode User need account to access USB disk（login account is “admin”，password is “admin”）. 3.8.2 FTP Server...
  • Page 32 Item Description Enable FTP Server FTP server start or stop Enable Anonymous to Agree anonymous account login to FTP server Login Enable FTP Access Allow user access device FTP server from WAN from WAN side（internet） FTP Server Port Default FTP server port is 21 Idle Connection Time- FTP process should have an idle timeout, which will terminate the process and close the control connection if...
  • Page 33 3.9 Webcam Server Webcam server only support one webcam Item Description Enable Webcam Webcam start or stop Access from WAN Allow user to see webcam image from WAN side（internet） Connection Port Define webcam access port，default is 8080 Preview See webcam image Archive Format Setting Set remote FTP server information for recording webcam image...
  • Page 34 3.10 VPN Server The VPN Server function providing PPTP/L2TP mode are designed to allow users to an external network device / computer and office local area network to establish a secure network connection. And User can safe login office local area network and access to personal documents, files Sharing and other resources.
  • Page 35 3.11 DoS Item Description Home Check “Home” to enable DoS function for prevention. You also can check “No Prevention” to disable DoS function. Enterprise Check “Enterprise” to enable DoS function for prevention. You also can check “No Prevention” to disable DoS function.
  • Page 36 3.12 Remote Management This page allows you to access the GUI on WAN Item Description HTTP Connection Port Users can access GUI by this port，default is 80 Enable Web Server Allow user access GUI from WAN side Access on WAN...
  • Page 37 3.13 Status You could check WAN, LAN, Client network in status WAN Configuration • LAN Configuration •...
  • Page 38 Client Configuration • Allow or block client to access internet Client Configuration •...
  • Page 39 3.14 Factory Default You could reset the current configuration to factory default. 3.15 Reboot This function is used to reboot 3.16 Logout This page is used to logout...
  • Page 40 4 Advance Setup 4.1 Internet Mode 4.1.1 Internet Setup Please refer Internet Setup 4.1.2 AP（switch to AP mode ） Please refer AP mode 4.1.3 WiFi AP（switch to WiFi AP mode） Please refer WiFi AP mode 4.1.4 WiFi ISP Please refer WiFi ISP mode 4.2 IP Config 4.2.1 WAN...
  • Page 41 Password Input the password provided by your ISP. Service Name Input the service name provided by your ISP. Connection Type Three types for select: Continues, Connect on Demand, and Manual. MTU Size Maximum Transmission Unit. Usually provide by computer operation systems (OS). Advanced users can set it manually.
  • Page 42 4.2.1.2 DHCP Item Description Host Name You can keep the default as the host name, or input a specific name if required by your ISP. MTU Size Maximum Transmission Unit. Usually provide by computer operation systems (OS). Advanced users can set it manually.
  • Page 43 4.2.1.3 Static IP Item Description IP Address Enter the IP address which is provided by your ISP. Subnet Mask Please enter the Subnet Mask address Gateway Input ISP Default Gateway Address. MTU Size Maximum Transmission Unit. Usually provide by computer operation systems (OS). Advanced users can set it manually.
  • Page 44 4.2.1.4 PPTP Item Description Enable Dynamic Route Enable or Disable dynamic route IP Address Enter the IP address which is provided by your ISP. User Name Input PPTP account provided by your ISP. Password Input the password provided by your ISP. Enable MPPE Microsoft Point-to-Point Encryption (MPPE) provides Encryption...
  • Page 45 to "Clone MAC Address" Save & Apply Click on Save to save the setting date, the Apply button for execute current configuration. 4.2.1.5 L2TP Item Description Enable Dynamic Route Enable or Disable dynamic route IP Address Enter the IP address which is provided by your ISP. User Name Input L2TP account provided by your ISP.
  • Page 46 Mode Input your user name provided by your ISP. If you don’t know, please check with your ISP. Network Traffic Monitor MB-1132G3 will record 3.5G traffic usage volume Limit Internet Traffic User can limit 3.5G traffic usage volume to prevent...
  • Page 47 Region Select correct phone service region Select correct phone service ISP Phone Type MB-1132G3 support 4 kinds of smart phone、Nokia、Black Berry、Sansung、iPhone and Andriod phone iPhone and Andriod phone do not need to do any setting，all you need is to turn on hotspot function and connect it to USB port Provide 3 kinds of speed，auto is recommended...
  • Page 48 recommended Select Attain DNS Automatically. Or select Set DNS Manually, if you want to specify the DNS, and enter the DNS provided by your ISP in DNS 1 2 3. Clone Mac Address Some ISPs require MAC address registration. In this case, enter the MAC address registered to the provider to "Clone MAC Address"...
  • Page 49 Mode Input your user name provided by your ISP. If you don’t know, please check with your ISP. Network Traffic Monitor MB-1132G3 will record 3.5G traffic usage volume Limit Internet Traffic User can limit 3.5G traffic usage volume to prevent...
  • Page 50 4.2.2 LAN Use this page to set up the local IP address and subnet mask for your router. Please select LAN Interface Setup under the IP Config menu and follow the instructions below to enter the LAN setting page to configure the settings you want. Item Description IP Address...
  • Page 51 DDNS service provider automatically. Service Provider Choose correct Service Provider from drop-down list, here including DynDNS, TZO, ChangeIP, Eurodns, OVH, NO-IP, ODS, Regfish embedded in MB-1132G3 . User Name/Email User name is used as an identity to login Dynamic-DNS service.
  • Page 52 4.3 Ipv6 Config Item Description Origin Type SLAAC、DHCPv6、IP。Please check ISP to get correct type WAN Link Type PPPoE、IP PPPoE Use IPv4 PPPoE account and password to do IPv6 connect Child Prefix Address Check ISP to get this data Static IP Check ISP to get IP address and default gateway IP address Router Name...
  • Page 53 4.4 Wireless 4.4.1 Wireless Basic Settings Item Description Disable Wireless Turn off the wireless service. Band Select the frequency. It has 6 options: 2.4 GHz (B/G/N/B+G/G+N/B+G+N). Mode Select the mode. It has 3 modes to select: (AP, Client, WDS, AP+WDS). Multiple AP: Please check Section 4.1.2.1.
  • Page 54 SSID to give the bottom layer user search. Multiple AP MB-1132G3 can register up to 4 SSIDs (wireless LAN group). It can be used as if there are multiple wireless LAN access points with one product. Each SSID could be set with different data rate, WMM and access type Save &...
  • Page 55 4.4.2 Advanced Settings Item Description Fragment Threshold To identify the maxima length of packet, the over length packet will be fragmentized. The allowed range is 256- 2346, and default length is 2346. RTS Threshold This value should remain at its default setting of 2347. The range is 0~2347.
  • Page 56 Aggregation Enable this function will combine several packets to one and transmit it. It can reduce the problem when mass packets are transmitting. Short GI Users can get better wireless transmission efficiency when they enable this function. WLAN Partition Shut down the communication between the connected wireless LAN devices.
  • Page 57 4.4.3 Security Here users define the security type and level of the wireless network. Selecting different methods provides different levels of security. Please note that using any encryption may cause a significant degradation of data throughput on the wireless link. There are five Encryption types supported: “None”, “WEP”, “WPA”, ”WPA2”, and “WPA-Mixed”.
  • Page 58 long time. "AES" is harder to decode comparing to "TKIP", so it can say tougher encryption scheme than "TKIP" WPA-Mixed Support WPA and WPA2 at the same time 802.1x Authentication For radius server authentication Radius Personal (Pre-Shared * If you configure Pre-Shared Key as Key) "Hexadecimal in 64 digits", please select "Hex (64 characters) ".
  • Page 59 Access Point in a minute without any hassle. SAPIDO MB-1132G3 could support both Self-PIN or PBC modes, or use the WPS button (at real panel) to easy enable the WPS function.
  • Page 60 ◦ Wireless dongle should connect to MB-1132G3 Start PBC: • ◦ Press the MB-1132G3 WPS button and wait for WPS LED blinking ◦ Press the dongle WPS button ◦ Wireless dongle should connect to MB-1132G3...
  • Page 61 4.4.6 WDS When selected in the Basic Settings page and enabled here, Wireless Distribution System (WDS) enables the router to be used as a wireless bridge. Two Wireless-N Routers in bridge mode can communicate with each other through their wireless interfaces.
  • Page 62 b Please check the MAC address c Enable WDS function from the page – “WDS Setting”, and then fill in the MAC address of Router_B. Click Apply Changes to save the setting data d The WDS AP List will show the WDS device MAC address...
  • Page 63 Router_B： a Setup Router_B WDS b Router_B LAN PC will get IP address from Router_A If you failed the WDS setting, please check you setting with refer to the list below 4.4.7 Wireless Schedule Please refer Wireless Schedule...
  • Page 64 4.5 NAT This section contains configurations for the MB-1132G3 ’s advanced functions such as: virtual server, and DMZ to provide your network under a security environment 4.5.1 DMZ The DMZ feature allows one local user to be exposed to the Internet for special- purpose applications like Internet gaming or videoconferencing.
  • Page 65 Current Port It will display all port forwarding regulation you made. Forwarding Table Delete Selected & Click Delete Selected will delete the selected item. Click Delete All Delete All will delete all items in this table. Please find the following figure to know that what the virtual server is. The web server is located on 192.168.1.100, forwarding port is 80, and type is TCP+UDP.
  • Page 66 4.6 AirCloud Storage Please refer File Menu 4.7 AirCloud Monitor Please refer Webcam Server 4.8 VPN Server Please refer VPN Server 4.9 Firewall 4.9.1 DoS Please refer 4.9.2 QoS Item Description Enable QoS Check “Enable QoS” to enable QoS function for the WAN port.
  • Page 67 Automatic downlink Check the Automatic downlink speed. speed Manual Downlink Input downlink bandwidth manually speed Address Type Set QoS by IP Address or MAC address Local IP Address Set local IP Address if the address type is by IP Address MAC Address Set MAC Address if the address type is by MAC Address Mode...
  • Page 68 4.9.3 Port Filtering Item Description Enable Port Filtering Select Enable Port Filtering to filter ports. Port Range Enter the port number that needs to be filtered. Protocol Please select the protocol type of the port. Click on Add to save the setting data. Current Filter Table Check ISP to get IP address and default gateway IP address...
  • Page 69 4.9.6 URL Filtering Please refer URL Filtering 4.9.7 IP Binding Please refer IP Binding 4.9.8 VLAN Item Description Forwarding Rule Bridge or NAT mode Add VLAN tag to packet Set VLAN ID（1~4096 ） Priority It indicates the frame priority level. Values are from 0 (best effort) to 7 (highest);...
  • Page 70 4.10 System Management This section including Wake on LAN, Change Username/Password, Upgrade Firmware, Profiles Save, Remote Management, Time Zone, UPnP, Route Setup, VPN Passthrough, and Wan Type Auto Detection. It is easy and helpful for users making more detailed settings 4.10.1 Wake on LAN Switch your computer ON through your LAN or the Internet .
  • Page 71 4.10.4 Profiles Save Users can create a backup file that contains current router settings. This backup file can be used to restore router settings. This is especially useful in the event you need to reset the router to its default settings. 4.10.5 Remote Management This page allows you to access the GUI on WAN...
  • Page 72 4.10.6 Time Zone Users can select time zone and synchronize the local clock on the router. 4.10.7 UpnP UpnP • Universal Plug and Play (UPnP) is a standard of networking protocols promulgated by the UPnP Forum. The goals of UPnP are to allow devices to connect seamlessly and to simplify the implementation of networks in the home (data sharing, communications, and entertainment) and in corporate environments for simplified installation of computer components.
  • Page 73 audio/video/picture/files) 4.10.8 Router Setup Dynamic routing is a distance-vector routing protocol, which employs the hop count as a routing metric. RIP prevents routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination. The maximum number of hops allowed for RIP is 15 Static routing is a data communication concept describing one way of configuring path selection of routers in computer networks.
  • Page 74 IP Address Destination IP address Subnet Mask Destination IP subnet mask Gateway Gateway IP address for destination Metric Metric number on router’s routing table Interface Static route rule for LAN or WAN interface 4.10.9 VPN Passthrough Virtual Private Networking (VPN) is typically used for work-related networking. For VPN tunnels, the router supports IPSec, Pass-through, PPTP Pass-through, and L2TP Pass-through.

  • Page 75: Installation

    A:There are two ways to know. Way 1:Check with your Internet Service Provider. Way 2:Check the setting screen of MB-1132G3 . Click on Status & Log item to select Network Configuration on the Main Menu. WAN IP is shown on the WAN interface.
  • Page 76 A:Yes, the Router mode allows for customization of your public IPs and Domain. 5.4 OS Setting Why can’t my computer work online after connecting to MB-1132G3 ? • A: It’s possible that your Internet protocol (TCP/IP) was set to use the following IP address.
  • Page 77 Why does MB-1132G3 ’s setup page shut down unexpectedly? • A:If one of the pages appears incompletely in MB-1132G3 ’s setup pages, please click on Logout item on the Main Menu before shutting it down. Don’t keep it working. Then, close Internet browser and open it again for going back to the previous page.
  • Page 78 A:MB-1132G3 will start to run after the setting finished applying, but the setting isn’t written into memory. Here we suggest if you want to make sure the setting would be written into memory, please reboot the device via Reboot under System Management directory.
  • Page 79 ◦ Both your PC and the Wireless Access Point must have the same setting for WEP. The default setting for the Wireless Router is disabled, so your wireless station should also have WEP disabled. ◦ If WEP is enabled on the Wireless Router, your PC must have WEP enabled, and the key must match.
  • Page 80 MB-1132G3’s wireless interface. A:The default WEP of WinXP is Authentication Open System - WEP, but the WEP of SAPIDO MB-1132G3 is only for Shared Key - WEP, it caused both sides couldn’t communicate. Please select the WEP of WinXP from...
  • Page 81 5.8 Support What is the maximum number of IP addresses that the XDSL Router will • support? A:The Router will support to 253 IP addresses with NAT mode. Is the Router cross-platform compatible? • A:Any platform that supports Ethernet and TCP/IP is compatible with the Router.
  • Page 82 6 Appendices 6.1 Operating Systems Microsoft：Windows 2000, XP, Vista, Windows 7. • Apple：Mac OS X 10.4.7, Leopard and the following related versions. • Linux：Redhat 9, Fedora 6 & 7, Ubuntu 7.04 and the following related • versions. • 6.2 Browsers Internet Explorer ver.
