Sonata III
User's Manual
Manuel de l'utilisateur
Anwenderhandbuch
Manuale per l'operatore
Manual del usuario

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sonata III and is the answer not in the manual?

Questions and answers

Summary of Contents for Antec Sonata III

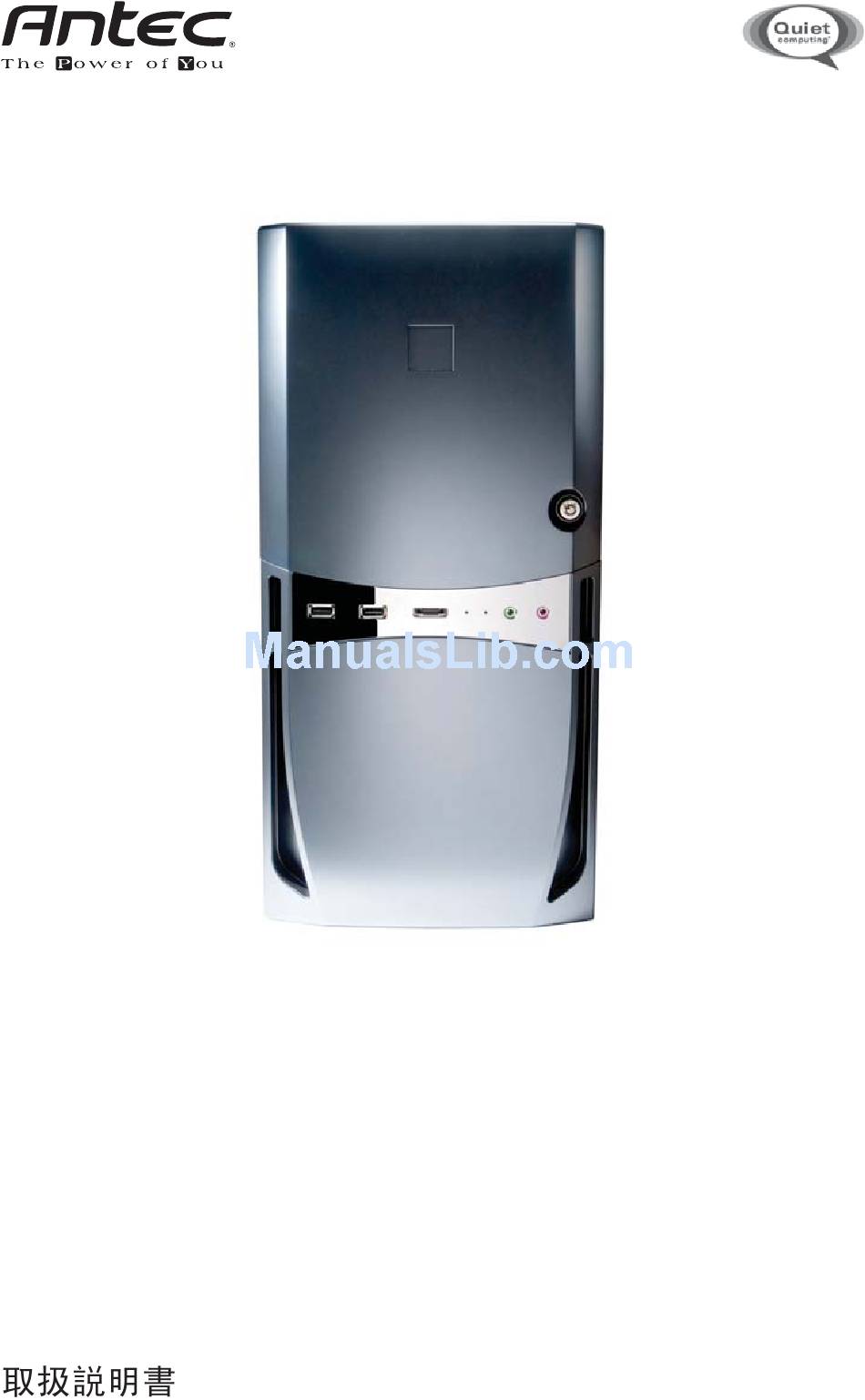

  • Page 1 Sonata III User’s Manual Manuel de l’utilisateur Anwenderhandbuch Manuale per l’operatore Manual del usuario...
  • Page 2 Disclaimer This manual is intended only as a guide for Antec’s Computer Enclosures. For more comprehensive instructions on installing the motherboard and peripherals, please refer to the user’s manuals that come with those components.
  • Page 3 INSTALLING THE MOTHERBOARD This manual does not cover CPU, RAM, or expansion card installation. Please consult your motherboard manual for specific mounting instructions and troubleshooting. Lay the case down, with the open side facing up. The drive cages and power supply should be visible.
  • Page 4 NOTE: Please check your motherboard manual for your USB header pin layout and make sure it matches the table below. If it does not match this Intel® standard, please visit the Antec store at http://www.antec.com/StoreFront.bok and search for part number 30095 to buy a USB internal adapter cable. This adapter will allow you to connect the front USB to your motherboard on a pin-by-pin basis.
  • Page 5 Pin Assignment for Audio Ports (HDA and AC’97) Signal Names Signal Names (HDA) (AC’97) MIC2 L MIC In AGND MIC2 R MIC Power AVCC FRO-R Line Out (R) MIC2_JD Line Out (R) F_IO_SEN Key (no pin) Key (no pin) FRO-L Line Out (L) LINE2_JD Line Out (L)
  • Page 6 COOLING SYSTEM The Rear Exhaust TriCool™ fan The Sonata III comes with one 120mm TriCool fan preinstalled in the rear. This fan has a three-speed switch that lets you choose between quiet, performance, or maximum cooling. (See specifications below.) The fan is installed so that the air is blowing out of the case.
  • Page 7 NOTE: We recommend AGAINST using a front fan for maximum quiet computing. If you choose to install a front fan, we recommend you use an Antec TriCool™ 120mm fan and set the speed to LOW.
  • Page 8: Customer Support

    1-800-22ANTEC customersupport@antec.com Europe +31 (0) 10 462-2060 europe.techsupport@antec.com www.antec.com © Copyright 2007 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited. Printed in China.
