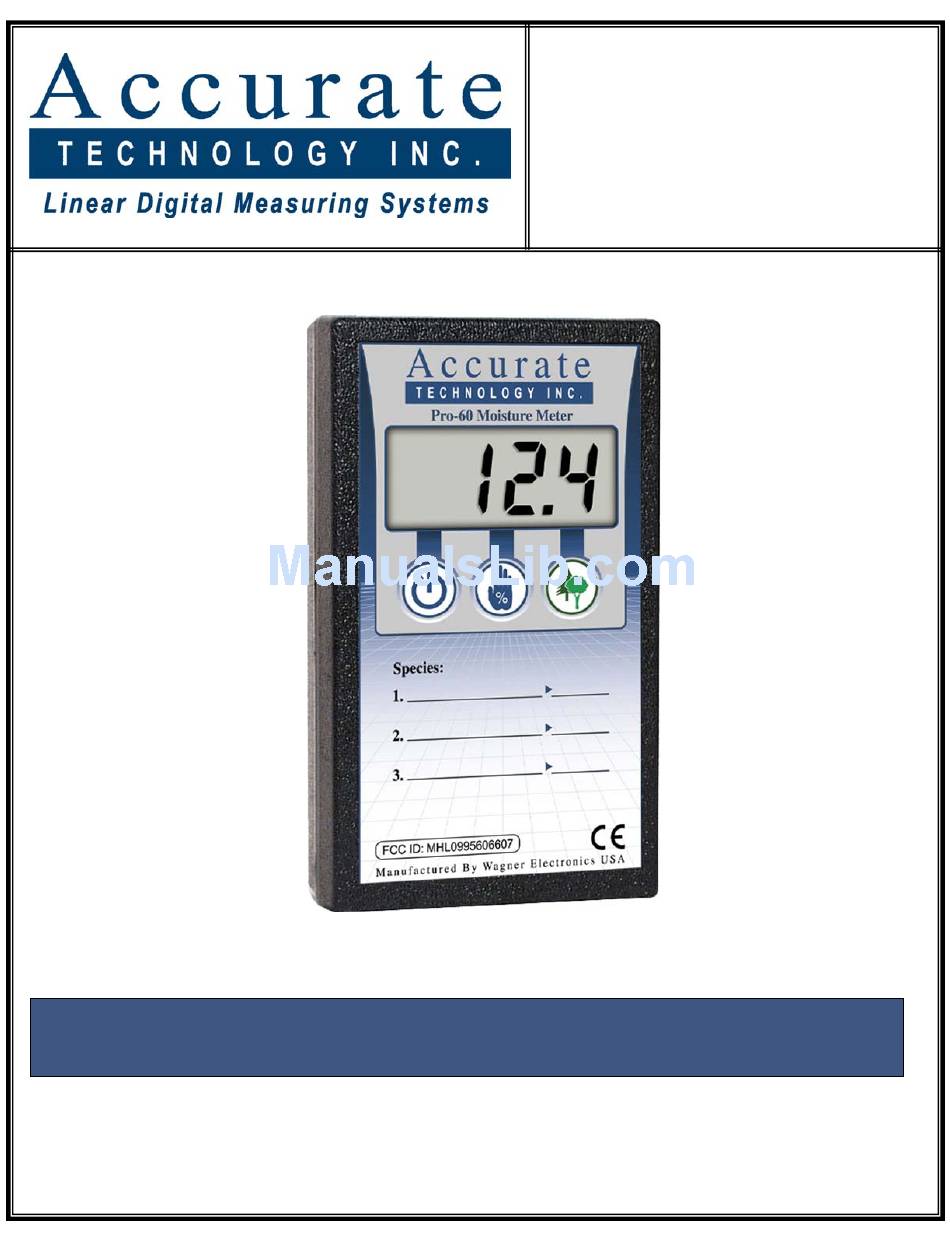

- Page 1 Pro-60 ™ User Manual for: Wood Moisture Meter Part Number 701-2000-001...
-
Page 2: Warranty
Such services shall be the customer's sole and exclusive remedy. Expenses incidental to repair, maintenance, or replacement under warranty, including those for labor and material, shall be borne by Accurate Technology, Inc. Freight or transportation charges to Accurate Technology, Inc., shall be paid by the customer. -
Page 3: Table Of Contents
Wagner Electronics, this hand-held meter has been proven by universities and institutes worldwide to provide superior measurement results. The Pro-60 meter measures the moisture content in a 38mm, (1.5 inch) wide by 63mm, (2.5 inch) long by up to 38mm, (1.5 inch) thick area of your wood. This closely approximates the full-thickness cross-section method used when performing the ASTM D 4442-92 Oven Dry lab test for determining moisture content in wood. -
Page 4: Douglas Fir
Douglas Fir value of 0.50 would be “50” when programming the Species Setting Value. The Pro-60 can store 3 different species settings at a time, which can be selected by the Species Table Index value. Momentarily pressing the Species Button will cause the display to show the current Species Table Index (Index value 1, 2, or 3), and the species setting value (SG) for that index number. -
Page 5: Programming
Avoid using a permanent marker because staining of the decal may occur. Accurate Technology Pro-60 Page 5 of 12... -
Page 6: Taking Measurements
* Additional meter corrections may be necessary if you are measuring Raft Wood (salt water permeated), or lumber treated with Copper, Chrome, Arsenic (CCA), or Ammonical, Copper, Quantenary (ACQ). Contact Accurate Technology for further information for these applications. METER STORAGE For a long service life, it is important to store your meter properly. -
Page 7: Species Corrections
Handbook at: http://www.fpl.fs.fed.us/documnts/fplgtr/fplgtr113/fplgtr113.htm The Pro-60 meter can be used to measure non-wood materials if the density is similar to wood products. Non-wood species can be measured by using the meter reading as a relative value such as in “go/no-go” applications, or when determining if one measurement area contains more moisture than another, i.e. -
Page 8: Determining Specific Gravity
Dense rules. If the specific gravity of a lumber sample is known, species adjustment can be determined by the species adjustment equation. The species adjustment equation provides a way to expand the use of the Pro-60 Hand-Held Moisture Meters for lumber of any species groups having similar species- specific gravity values. -
Page 9: Meter Calibration
Accurate Technology to purchase a calibration verification block. Should the meter need to have a calibration adjustment, it will need to be returned to Accurate Technology. See WARRANTY for return information. -
Page 10: Species Specific Gravity Chart
Opepe 0.51 Laurel, California 0.40 Redwood, Old-growth 0.54 Parana pine 0.69 Locust, Black 0.35 Redwood, Young-growth 0.63 Peroba de campos 0.58 Madrone, Pacific 0.42 Spruce, Black 0.75 Peroba rosa (Continued on next page) Accurate Technology Pro-60 Page 10 of 12... - Page 11 Sweetgum slightly and some plywood and OSB of the same species may 0.49 Sycamore, American vary slightly. 0.58 Tanoak 0.50 Tupelo, Black 0.50 Tupelo, Water 0.55 Walnut, Black 0.39 Willow, Black 0.42 Yellow-poplar Accurate Technology Pro-60 Page 11 of 12...
-
Page 12: Product Registration
PRODUCT REGISTRATION Fill out for your records and FAX to Accurate Technology @ (+1) 828.654.8824 or Register on line at www.proscale.com Name E-Mail Company Address Address City State/Region Zip/Postal Code Country Purchased From: Purchased When: Pro-60 Serial Number: Accurate Technology Pro-60...
