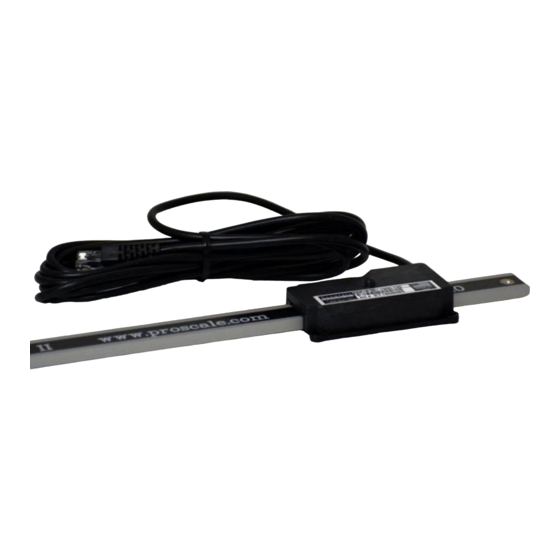

- Page 1 ProScale ® Model 19 Model 19 Quick Start Installation Guide...
- Page 2 Accurate Technology, Inc. shall not be liable for any special, incidental, or consequential damages or for loss, damage or expense directly or indirectly...
- Page 3 Specifications Measuring Range: 0-6 inches (150mm) ± .005 inches (0.13mm) – (before linear Accuracy: compensations are applied) Operating Temp: 0 to 50C; 32 to 120F Maximum Velocity: 80 inches/second (2000mm/sec) Encoder connection: Six-conductor cable terminated by RJ12 connector. Cable lengths are available up 10 feet (3m). Dimensions: Available at www.proscale.com...
- Page 4 Model 19 Scales Model 19 scales use Series 2 Inductive Incremental technology. These scales have a repeating “bar” pattern on a black colored laminate. There is a “SPLICE or JOINT” approximately every 477mm (18.8in). To shorten Model 190 Scales, simply cut to desired length. Model 19 Encoders The orientation for Model 19 encoders on the scale is not critical.
- Page 5 Installation ProScale Model 19 can be used in many different measurement applications, and with numerous types and brands of equipment. Therefore, all installations will be a little different, and it is the responsibility of the user to choose the bolts, screws, or other mounting hardware that guarantee proper installation for optimum operation in their application.
- Page 6 Model 19 Installation Note orientation of the connector link: Moving Part Connector Link Scale Encoder Stationary Part Encoder stationary, scale moves Stationary Part Scale Moving Part Encoder Guide Clip Scale stationary, encoder moves Manual Part # 800-1416-001 Page 6 of 8...
- Page 7 Frequently Asked Questions Can I mount the scale/encoder without the connector link or guide clip? The connector link and guide clip provide an accurate and reliable method of transferring the movement of the machine to the electronics, while also absorbing any stresses due to slight misalignments.
- Page 8 IT WAS PROUDLY MADE IN THE USA Accurate Technology, Inc. 270 Rutledge Rd. Unit E Fletcher, NC 28732 USA 828-654-7920 www.proscale.com Part # 800-1415-001 Copyright © 2020 Accurate Technology, Inc. All rights reserved. Manual Part # 800-1416-001 Page 8 of 8...
