Summary of Contents for Accurate Technology ProPanel-HD

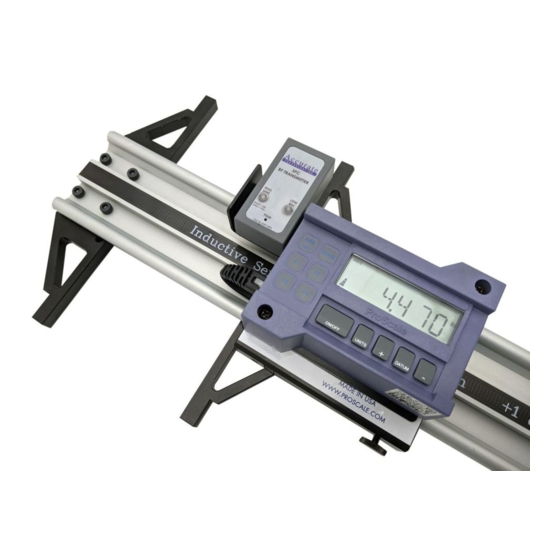

- Page 1 ProPanel-HD shown with optional transmitter and steel brace. SERIAL # _______________ ProPanel-HD (Systems with Firmware version 4)
- Page 2 Accurate Technology, Inc. shall not be liable for any special, incidental, or consequential damages or for loss, damage or expense directly or indirectly...
- Page 3 PARAMETER 33 (Offset Value #3) PARAMETER 39 (Non-Linear correction used?) 1 (yes) PARAMETER 40 (Non-Linear correction Interval) 5.0000 inches PARAMETER 41 (Temperature correction enabled?) 1 (yes) www.proscale.com/700-1600-246 for more details about these settings. ProPanel-HD (FW4), Revised August 2020 Page 3 of 24...
-
Page 4: Table Of Contents
WHAT DO ALL THE SYMBOLS MEAN? ..............16 SPC PORT, SPECIAL MODES, AUTOMATIC ON/OFF ..........18 PROGRAMMING MODE .................... 19 COMMON ERROR MESSAGES ................20 ACCESSORIES ......................21 FREQUENTLY ASKED QUESTIONS ................ 22 ProPanel-HD (FW4), Revised August 2020 Page 4 of 24... -
Page 5: Introduction
ProPanel-HD has been designed using high quality anodized aluminum extrusion and machined parts to provide the best accuracy and repeatability over a wide variety of environments. The measurement system used for ProPanel-HD is based on the ProScale® Model 590 Digital Measuring System. Cylinders are included; these are... -
Page 6: Specifications
Mitutoyo Digimatic® SPC Calibration Each ProPanel-HD system is calibrated at factory when initially built. Systems should be checked at least once per year for accuracy, and serviced as needed. If you see a NoCo message, the readout is trying to show a dimension that is outside the range of calibration. -
Page 7: Initial Set-Up
PLUS, MINUS, or DATUM keys from affecting accuracy. CUSTOMIZE: Many operations/features of the ProPanel system can be configured to suit best way you will use the gage. See Programming Mode section for details about the numerous controls/settings available. ProPanel-HD (FW4), Revised August 2020 Page 7 of 24... -
Page 8: Outside Measuring
Outside Measuring Use the ProPanel-HD like a handheld caliper or T-square. Close the jaws against the edges of the item being measured, keeping the jaws as square to the edges as possible, and read the result on the readout. Tips: •... -
Page 9: Inside Measuring
3. Using the upper or lower tips of the jaws, measure the inside dimension of interest, and read the result on the readout. Note: Videos showing how these measurements are made are posted at web site: www.proscale.com/propanel/ ProPanel-HD (FW4), Revised August 2020 Page 9 of 24... -
Page 10: Hole-To-Hole Measurements
Press the F1 key until the #2 superscript appears. d. The reading should equal 1.500 inches. Note: Videos showing how these measurements are made are posted at web site: www.proscale.com/propanel/ ProPanel-HD (FW4), Revised August 2020 Page 10 of 24... -
Page 11: Edge To Hole Measurements
Press the F1 key until the #3 superscript appears. d. The reading should equal 0.750 inches. Note: Videos showing how these measurements are made are posted at web site: www.proscale.com/propanel/ ProPanel-HD (FW4), Revised August 2020 Page 11 of 24... -
Page 12: Comparing Diagonals
7. Press the ABS/INC key to return to the absolute mode. Note: Videos showing how these measurements are made are posted at web site: www.proscale.com/propanel/ ProPanel-HD (FW4), Revised August 2020 Page 12 of 24... -
Page 13: General Maintenance
General Maintenance ProPanel-HD will operate in a dry environment with non-conductive debris such as sawdust, plastic, metal dust, and small amounts of water splash with no adverse effects. The system should be cleaned of excess debris when necessary to prevent premature damage to the electronic scale and encoder/sensor. -
Page 14: Primary Key Functions
Then quickly press and Action release ON/OFF UNITS LOCK (or unlock) the keypad. UNITS DATUM Enters or exits the programming menu.* *Requires programming jumper to be in position 1; see image on page 13. ProPanel-HD (FW4), Revised August 2020 Page 14 of 24... -
Page 15: Supplemental Key Functions
Starts editor for Go/NoGo editor. (If Go/NoGo feature is enabled.) Turns HOLD mode on or off. (If None hold feature is enabled in the programming menu.) Edits values in Go/NoGo editor. (If Go/NoGo feature is enabled.) ProPanel-HD (FW4), Revised August 2020 Page 15 of 24... -
Page 16: What Do All The Symbols Mean
Offsets are useful for applications with multiple fixed data points. These are used with the 16 fractional inch modes. Each bar represents an extra 1/64 long/heavy on the dimension. ProPanel-HD (FW4), Revised August 2020 Page 16 of 24... - Page 17 Vinculum – used in fractions mode to separate numerator from denominator. Units indicator. IN is for INCHES or fractions. MM for millimeters. CM for centimeters. (Press UNITS key to change.) ProPanel-HD (FW4), Revised August 2020 Page 17 of 24...
-
Page 18: Spc Port, Special Modes, Automatic On/Off
Auto On: Any motion of the carriage greater than 0.004 inches will wake up the readout and restart the Auto Off timer. (The amount of motion required can be changed using the programming mode, parameter Pr5.) ProPanel-HD (FW4), Revised August 2020 Page 18 of 24... -
Page 19: Programming Mode
0 (None) Pr39 * Turn on non-linear compensation 0 (Disabled) Pr40 * Non-linear correction step value 5.000 inches Pr41 * Temperature compensation on/off 0 (Off) Pr44 * Coefficient used for temperature ProPanel-HD (FW4), Revised August 2020 Page 19 of 24... -
Page 20: Common Error Messages
Limits mode is turned on, and a limit has been exceeded. The digital readout’s parameters have just been defaulted. Reset Bad pt The readout expected an entry different than it received. ProPanel-HD (FW4), Revised August 2020 Page 20 of 24... -
Page 21: Accessories
Accessories The ProPanel-HD readout outputs Mitutoyo Digimatic® SPC. This signal can be converted to USB or RS232 using a ProRF Wireless SPC System. Cone Kit includes 2 full cones plus a half cylinder (all steel). These parts can be attached to ProPanel’s jaws to provide edge-to-hole and hole-to-hole measurement ability. -
Page 22: Frequently Asked Questions
2. The system’s datum has changed. Place the moving carriage against the fixed jaw, then press DATUM key. 3. The readout is in INC mode. Return to ABS mode and verify system is datumed. ProPanel-HD (FW4), Revised August 2020 Page 22 of 24... - Page 23 ProPanel-HD (FW4), Revised August 2020 Page 23 of 24...
- Page 24 IT WAS PROUDLY MADE IN THE USA Accurate Technology, Inc. 270 Rutledge Rd. Unit E Fletcher, NC 28732 USA 1-828-654-7920 www.proscale.com P/N 800-1090-105 Copyright © 2020, Accurate Technology, Inc. All rights reserved. ProPanel-HD (FW4), Revised August 2020 Page 24 of 24...
