Delfield ST4532N Specifications

Delfield
™
®

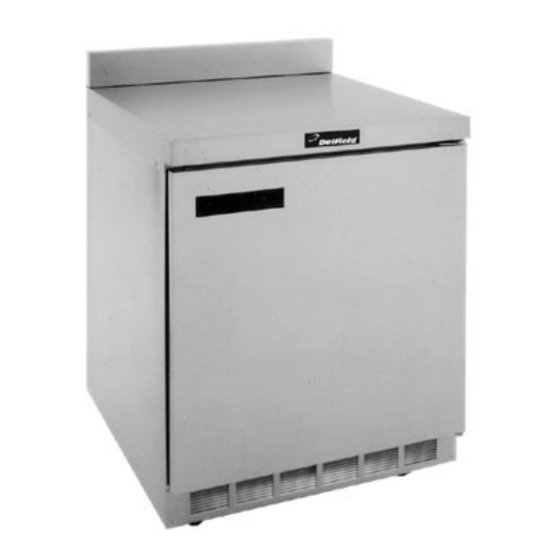

ST4532N Flat Top
Front-Breathing Self-Contained Compact Flat Top Freezers
Models
• ST4532N Single section freezer with doors
• STD4532N Single section freezer with drawers
ST4532N

Specifications

Exterior top is one-piece, 22-gauge stainless steel with
integral square nosing on the front.
Exterior back and bottom are two-piece 24-gauge galvanized
steel.
Exterior ends are stainless steel.
Interior sides are thermoformed ABS plastic with shelves
supported on plugs. Interior back is one-piece 22-gauge
stainless steel. Interior bottoms are thermofoamed ABS
plastic. Base is fully insulated with high-density foamed in
place environmentally friendly, Kyoto Protocol Compliant, Non
ODP (Ozone Depletion Potential), Non GWP (Global Warming
Potential) polyurethane.
Refrigeration system uses HFC-404A refrigerant. Compressor
is 1/5 H.P., with condenser coil and hot gas condensate
evaporator mounted on rear of the cabinet. Evaporator coils
are located on the interior rear wall of the cabinet. Refrigerant
flow is controlled by a capillary tube. Cabinet maintains an
interior cabinet temperature of 0°F to 10°F (-18°C to -12°C).
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
Standard Features
• 100% front breathing, which allows the unit to be
pushed against a wall or built into a cabinet or an
existing line up
• Durable, rugged stainless steel sides, top and front
• Features Delfield's exclusive ABS interior (on sides).
ABS is extremely durable - it won't dent, chip or
corrode and is backed by a limited lifetime warranty
• Heavy duty self-closing hinges
• "ST" prefix models have a 4" stainless steel backsplash
• "D" prefix models feature Delfield's exclusive new
drawer system.
warranty on the track assembly
• Environmentally friendly R404A refrigerant
• High density foamed in place environmentally friendly,
Kyoto Protocol Compliant, Non ODP (Ozone Depletion
Potential), Non GWP (Global Warming Potential)
polyurethane keeps energy costs low
• Black recessed quick grip handle
• Standard on 2" casters for easy cleaning and
installation
• 60-cycle single phase electrical system
• 7' cord and plug supplied
• Cord spring relief - prevents cord rollover
• One epoxy coated wire shelf standard, installed per
door section
• ACT solid state electronic control
• One year parts and 90 day labor standard warranty.
Electrical connection is 115 volt, 60 Hertz, single phase. Unit
has a 7' (2.1m) long electrical cord and NEMA 5-15P plug.
Casters Equipment is mounted on 2" (5.08cm) (2.5" ride
height), diameter plate casters with front two locking.
Door has a 24-gauge stainless steel exterior, with thermoformed
ABS plastic interior liner.
Drawers have 24-gauge stainless steel exterior with
thermoformed ABS plastic interior liner. Drawer frames are
12-gauge stainless steel. Drawer slides are 11-gauge stainless
steel with Delrin bearings. Top drawer holds two full size 12"
x 20", 4"-6" (30.5cm x 50.8cm x 10.2cm) deep pans. Bottom
drawer holds one full size 12 x 20" and three 1/6 size 4" deep
pans. Pans are supplied by others.
Phone: 800-733-8948 or 989-773-7981
Fax: 800-669-0619
Project __________________________________
Item ____________________________________
Quantity ________________________________
CSI Section 11400
Approved _______________________________
Date ____________________________________
Drawers are backed by a 10-year
www.delfield.com
Options &
Accessories
• Flat lift off cover
• 18" wide single tier overshelf
• Stainless steel finish on back
• Plastic laminate on front
• Additional wire shelves
• Door lock
• Exterior thermometer
• Interior lights
• Glass door(s)
• *220V/50 Hertz electrical system
* Inclusion of this option will
alter electrical specifications
of the unit.
