Summary of Contents for Reebok R9.5e

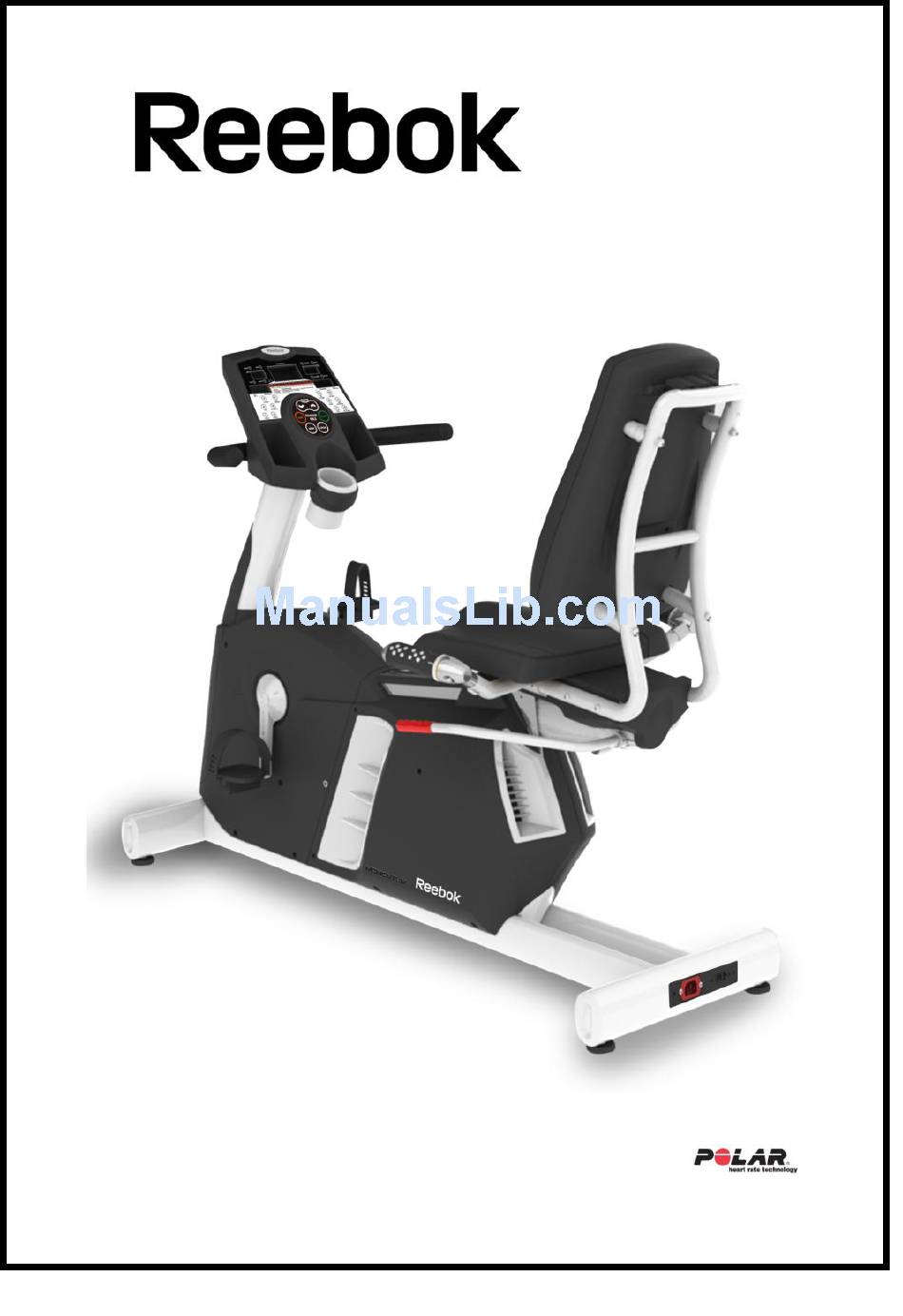

- Page 1 R9.5e User’s Manual User’s Manual Reebok R9.5e-20100518...
- Page 3 Dear Customer, We are pleased, that you have chosen a Reebok Fitness Equipment. This quality product has been designed for light commercial use and has been tested and certified according to the European Norm EN 957-1/5. Please carefully read the instructions prior to assembly and first use and be sure to keep the instructions for reference and maintenance.
-
Page 4: Model Name
Customer Service To best possible support you in the case of problems with your product, we would ask you to please quote the product Model Name and Serial Number. These can be found on the sticker underside your product. Modelname: Serialnumber: Waste Disposal Reebok products are recyclable. - Page 5 Precautions Before assembling or using the exercise cycle, please read the following instructions carefully. They contain important information for use and maintenance of the equipment as well as for your personal safety. Keep these instructions in a safe place for maintenance purposes or for ordering spare parts. ...
- Page 6 Product-Maintenance: If the equipment is in regular use, check all its components thoroughly every 1 – 2 month. Pay particular attention to the tightness of bolts and nuts. This applies especially to the securing bolts for saddle and handlebars. ...
- Page 7 Check List...
- Page 8 Description Qty. Computer Console Upright Tube Computer Protect Cover Handlebar -Left Handlebar -Right Back pad Front Upright Cover Main Frame Bottle Holder Water Bottle Seat Post Cover Power cord Back Pad Support Tube Hand Pulse Connect Bracket-Left Hand Pulse Connect Bracket-Right M8 x 10mm Bolt M6 x 15mm Screw 4 x 19mm Bolt...
- Page 9 Assembly STEP1. Assembly STEP2.
-
Page 10: Assembly Step3
Assembly STEP3. 8mm Wrench Assembly STEP 4. -
Page 11: Assembly Step
Assembly STEP 5. Assembly STEP6. Sleeve... -
Page 12: Assembly Step7
Assembly STEP7. -
Page 13: Exploded View
Exploded view 13 19... - Page 14 Exploded view 48-1 50-1 108-1 109-1...
- Page 15 Exploded view...
- Page 16 Exploded view 58-R 58-L...
- Page 17 Parts Description Part No. Part name Quantity R9.5E-001 M6 x 10mm Bolt R9.5E-002 Flywheel Shock Absorber R9.5E-003 17 x 22 x T1.5 Plastic Washer R9.5E-004 6003 Bearing R9.5E-005 Flywheel Pulley R9.5E-006 20 x 32 x T1 Plastic Washer R9.5E-007 6004 Bearing R9.5E-008...
- Page 18 R9.5E-033 Crank Shaft R9.5E-034 Drive Belt R9.5E-035 Crank Disk R9.5E-036 20 x 30 x T2 Washer R9.5E-037 3/4" Nut R9.5E-038 Crank - Right R9.5E-039 Seat Post R9.5E-040 Rear Vent Cover - Left R9.5E-041 Rear Vent Cover - Right R9.5E-042 Computer R9.5E-043...
- Page 19 R9.5E-067 Small Vent Cover - Rear R9.5E-068 Pedal - Right R9.5E-069 Chain Cover - Rear Right R9.5E-070 Computer Wire Lower R9.5E-071 Hand Pulse Wires - Upper R9.5E-072 Computer Wire Upper R9.5E-073 Hand Pulse Wire - Middle R9.5E-074 Computer Wire Middle R9.5E-075...
- Page 20 R9.5E-101 5 x 10mm Screws R9.5E-103 Hand Pulse Wires - Lower R9.5E-104 4 x 19mm Screws R9.5E-105 Hand Pulse Holder - Left R9.5E-106 Hand Pulse Cap R9.5E-107 Hand Pulse Holder - Right R9.5E-108 Hand Pulse Connect Bracket - Left R9.5E-109 Hand Pulse Connect Bracket - Right R9.5E-110...
- Page 21 R9.5E-136 M8 x 25mm Bolt R9.5E-137 Seat Post Slider Wheel - Lower R9.5E-138 M4x19 Bolt R9.5E-139 Slide tube R9.5E-140 M8 x 100mm Bolt R9.5E-141 Wheel R9.5E-142 Back cushion ring R9.5E-144 Back cushion ring-F R9.5E-145 Slide tube axle ring R9.5E-146 Slide tube back cover R9.5E-147...
