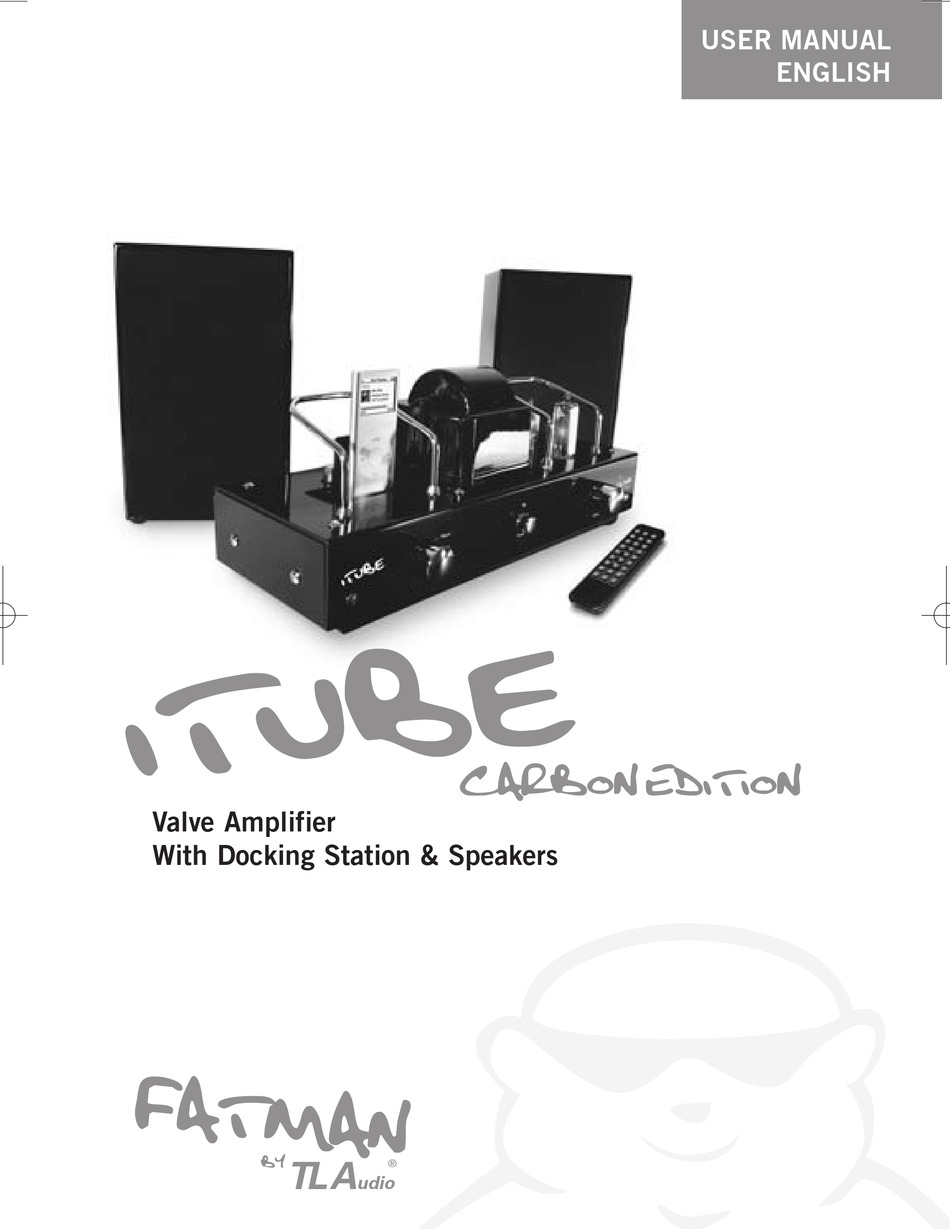

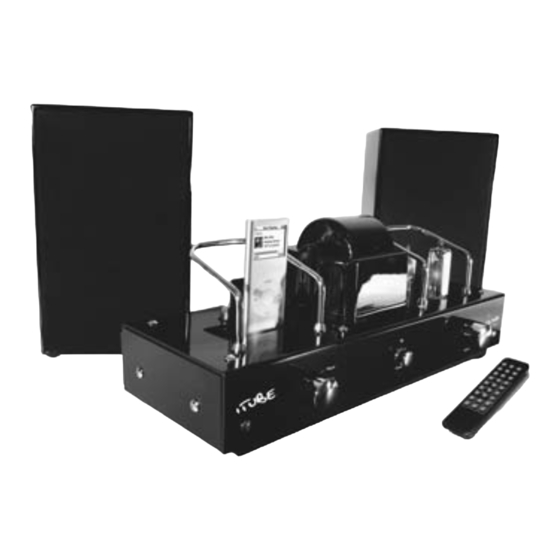

- Page 1 USER MANUAL ENGLISH CARBON EDITION Valve Amplifier With Docking Station & Speakers ® udio...
-
Page 2: Table Of Contents
......Congratulations on your choice of the Fatman iTube by TL Audio. We have used years of audio engineering experience to bring you a product that will truly enhance your listening experience. -
Page 3: Kit Contents
ENGLISH Kit Contents • iTube Vacuum Tube Amplifier with iPod dock • Fatman 2-way bookshelf speakers in black high-gloss finish • Banana Plug speaker cables • Aux source audio cable for connecting CD player etc • Video cable to connect from docking station to TV... -
Page 4: Safety Instructions
Fatman iTube • This product can get hot. Do not touch the tubes • Retain Instructions in a safe place for future... -
Page 5: Amplifier Controls
USER MANUAL ENGLISH Amplifier controls Input select IR receiver LED Power button Volume FRONT PANEL The indicator light above the power switch will illuminate when the power is ON. To switch power OFF, simply turn switch in the alternate direction. Before switching on the power, please set the volume control to a low setting to avoid damage to your speakers. -
Page 6: Remote Control
Remote Control Play / Down Menu Pause Menu Menu menu Album, Chapter, Playlist Mute Back Power Skip FF / RW Shuffle Repeat Bass Treble Master Button Light Button Track Volume Volume Volume Control speaker functions Control iPod functions Power Button Press to turn on the iTube, When an iPod is docked into the dock and dock is power indicator will illuminate. - Page 7 USER MANUAL ENGLISH iTube Carbon Edition Connections...
-
Page 8: How To Use
How to Use CONNECTIONS SPEAKERS • Before attempting to make any connections • When connecting speakers, ensure they have to or from the iTube firstly ensure that the an impedance of between 4 & 8 ohms. iTube and all connecting devices are •... -
Page 9: Maintenance
USER MANUAL ENGLISH Maintenance • Switch off units when out of use • Allow units to cool completely before cleaning • Clean using a soft cloth or supplied brush periodically • When cleaning the Vacuum tube, take great care, please only gently shake the tube to take it down and then install tubes in the same way after clean •... -
Page 10: Troubleshooting
Troubleshooting If your iTube fails to operate normally, please check the following points to determine if the fault can be corrected with one of the simple suggestions below. If you feel your unit is still faulty after reading this, please contact your authorised dealer or service centre. SYMPTOM POSSIBLE CAUSE REMEDY... - Page 11 USER MANUAL ENGLISH SYMPTOM POSSIBLE CAUSE REMEDY Sound is distorted - Volume level on iTube is - Decrease the volume to a too high more appropriate level - Sound source is distorted - WAV and MIDI files are often of poor quality;...
- Page 12 Specification • Power Output: 25Wx2 • Frequency Response: 20Hz - 20KHz (±1.5Db) ≤0.5% • Harmonic Distortion: ≥86Db • Signal-To-Noise Ratio: • Input Impedance: 4.7KΩ • Output Impedance: 4Ω, 8Ω • Valve Type: 2x6N1(ECC85) 1x6E2(EM87) • Power Supply: AC100~120V/50~60Hz AC220~240V/50~60Hz • Dimensions: iTube: 372x152x172 mm ( WxHxD) Speakers: 144x240x200 mm (WxHxD) •...
