- Page 1 USER MANUAL ENGLISH Carbon Trinity Hybrid Valve Amplifi er Hybrid Valve Amplifi er Market-leading, award-winning Fatman system with added USB input and sub-woofer output. F at m a n b y t L a u d i o...
-
Page 2: Table Of Contents

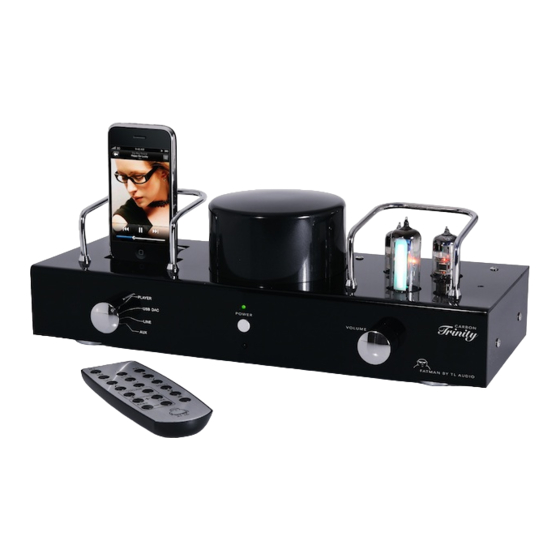

We’d like to congratulate you on your excellent taste in choosing the Fatman Carbon Trinity by TL Audio. We’ve put many, many years of audio engineering experience and a whole lot of love into bringing you a marvel of modern engineering that will enhance your listening experience, and in its own small way, your life. - Page 3 USER MANUAL ENGLISH In the box Here’s what you’ll find inside • Carbon Trinity Vacuum Tube Amplifier with iPod Dock. • High quality, directional Speaker Cables. • Aux Audio Cable - connects another source like a phone, MP3 player, CD player or computer. •...
-
Page 4: Safety Instructions
Carbon Trinity Carbon Trinity Hybrid Valve Amplifier Hybrid Valve Amplifier Safety Instructions They’re Important, So Please Read Carefully! Please DO... Please DON’T... • Keep these instructions in a safe place for future • Don’t put your Carbon Trinity anywhere near water reference - you may need ‘em. -
Page 5: Amplifier Connections
USER MANUAL ENGLISH Amplifier Connections • Before connecting anything to or from your • Always turn OFF the power switches when you’re Carbon Trinity, switch OFF the power to the connecting or disconnecting from the mains. Carbon Trinity and to the components you want to •... -
Page 6: Speaker Connections
Carbon Trinity Carbon Trinity Hybrid Valve Amplifi er Hybrid Valve Amplifi er Speaker Connections • Connect to your speakers using high quality, bare • Make sure the wire holders are firmly screwed in to (stripped) speaker wire. If your speaker wires are stop the wires from becoming loose. -
Page 7: Connecting Other Devices
USER MANUAL ENGLISH Connecting other devices Video Output Mini USB Output Connect the video cable (yellow) from the video Connect your computer for direct digital streaming or output connector (yellow) of the Carbon Trinity to the an external DAC. video input (you guessed it, probably yellow) of your Subwoofer Out You can connect to a powered subwoofer using a Audio Output... -
Page 8: The Front
Carbon Trinity Carbon Trinity Hybrid Valve Amplifier Hybrid Valve Amplifier The Front • Power switch Press to on for power - the indicator will light up while the power is on. Later on, try pressing it off to give it a rest. •... -
Page 9: Remote Control
USER MANUAL ENGLISH The Remote Control • iPod control Some iPod functions can be controlled using the Carbon Trinity’s remote. Play/pause song Press play/pause Turn off iPod Press and hold ‘Play’ Skip to next song Press ‘Next/fast forward’ Start a song again Press ‘Previous/rewind’... - Page 10 Carbon Trinity Carbon Trinity Hybrid Valve Amplifier Hybrid Valve Amplifier Dr Feelgood Your Carbon Trinity should give you years of trouble- free audio fitness, but if it isn’t performing as it should, it could be due to one of these simple problems. If you’re still having trouble, please contact your authorised dealer or service centre.
- Page 11 USER MANUAL ENGLISH SYMPTOM DIAGNOSIS CURE Crackling sound from Bad connection Check docking station connection (or the 3.5mm cable con- speakers A problem with your audio source nection if using). Make sure it’s using ‘line out’ ‘audio out’ or ‘headphone out’ from your source, NOT ‘speaker out’ Test the 3.5mm cable with another audio source eg CD player, MP3 player Sound is distorted...
-
Page 12: Specifications
Carbon Trinity Hybrid Valve Amplifier Specification Max output power: 25Wx2 Frequency response: 20Hz-20KHz (±1.5dB) Distortion: ≤0.5% Signal to noise ratio: ≥86dB Input sensitivity: 200mV Input impedance: 10KΩ Output impedance: 4Ω /8Ω Size (WxHxD): 374mm x 205mm x 155mm Weight: Amp/dock 5.8kg, single speaker 2.4kg Tubes: 6N2 x 2, 6E2 x 1 Sub out: Yes Type of amp: Hybrid...
