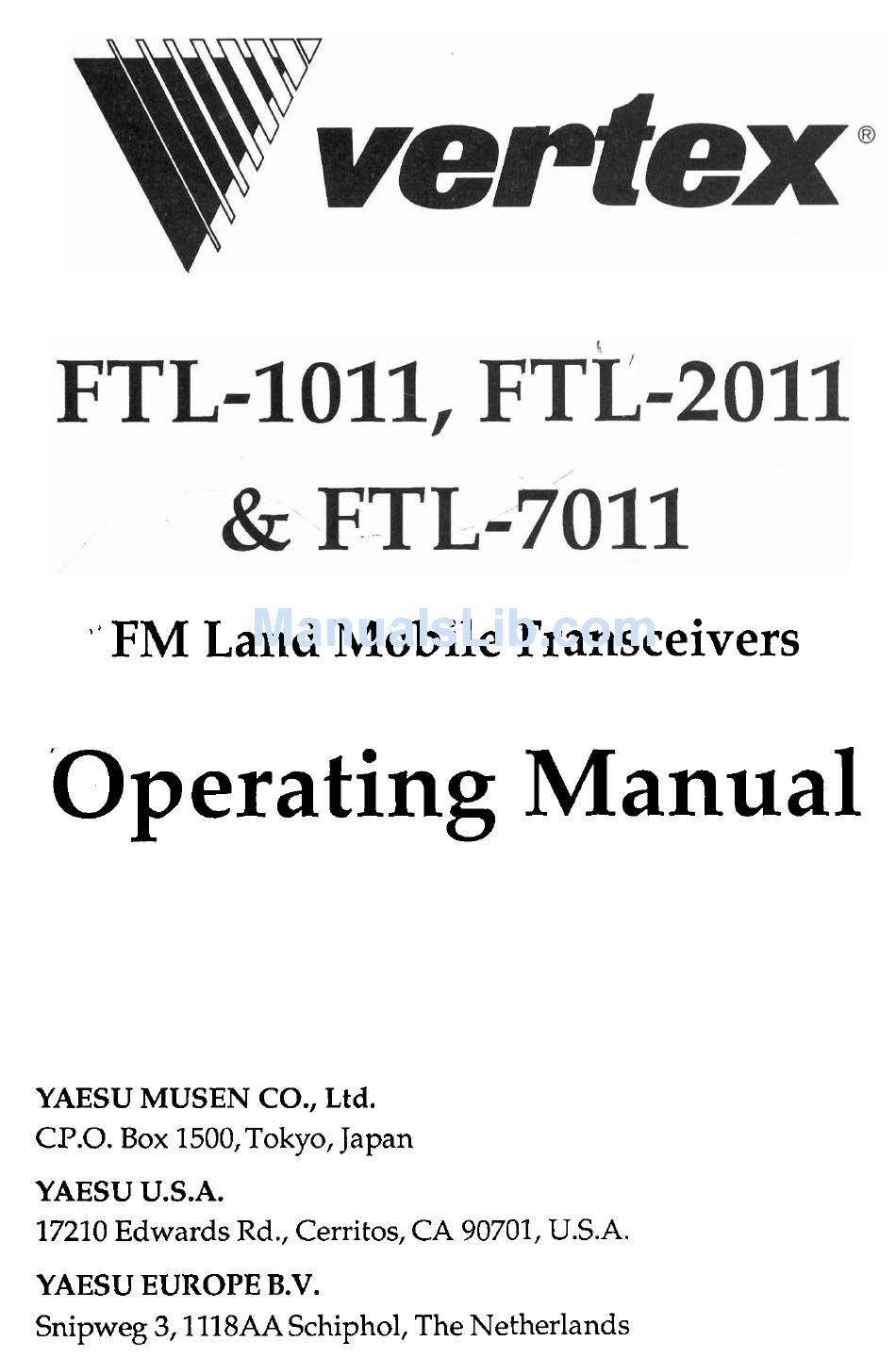

- Page 1 FM Land Mobile Transceivers " 'Operating Manual YAESU MUSEN CO., Ltd. CP.0. Box 1500, Tokyo, Japan YAESU U.S.A. 17210 Edwards Rd., Cerritos, CA 90701, U.S.A. YAESU EUROPE B.V. Snipweg 3,1118AA Schiphol, The Netherlands...
- Page 2 Congratulations! You now have at your fingertips a valuable communications tool a Yaesu two-way radio! Rugged, reliable and easy to use, your Yaesu radio will keep you in constant touch with your colleagues for years to come, with negligible maintenance down time.
- Page 3 FTH-1011, FTL-2011 VHF and FTL-7011 UHF FM Land Mobile Transceivers The 60-watt VHF Low-Band FTL-1011, 40-watt VHF High- Band FTL-2011 and 25-watt UHF FTL-7011 are rugged, full-fea- tured FM transceivers designed for flexible mobile and base station business communications. Each model is available with...
-
Page 4: Front Panel
Controls Connectors & Front Panel 0 0 0 0 -4 Suffix (Cchannel) Models -12 Suffix (12-channel) Models Microphone Jack Connect the microphone plug to this jack. MON Button Indicator & This button selects the squelch (receiver mute) mode. When the indicator is off, tone (or coded) squelch is active. - Page 5 Vertex FTL-1011, FTL-2011 & FTL-7011 Operating Manual green indicator lights when the function is active. Your network administrator can advise you of the function of this button (if any). Otherwise, it may be disabled. Volume and Power OnfOff Knob This knob adjusts the receiver volume, and turns the transceiver off when turned all the way to the left into the click-stop.
- Page 6 Vertex Opevati/?g Mnnual FTL-1011, FTL-2011 FTL-7011 REAR (Heatsink) 13.6VDC Cable Pigtail wlconnector The supplied DC power cable must be connected to .this 2-pin connector. Use only the supplied fused cable, extended if neces- sary, for power connection. Antenna Socket The 50-ohm coaxial feedline to the antenna must be connected here using a type-M (PL-259) plug.
- Page 7 How To Use The Transceiver Important! Before turning on the radio the first time, confirm that the power connections have been made correctly and that a proper If the transceiver is not antenna is connected to the antenna jack. Installation installed, see near the back of this manual.
- Page 8 Vertex FTL-1011, FTL-2011 t 3 FTL-7011 Operating Manual Setting the Volume If no signals are heard and the indicator is not glowing BUSYrrX green (so you can adjust the volume on a signal), press and hold the button for two seconds until a beep is heard and the yellow indicator above the button blinks.
- Page 9 Vertex FTL-1011, FTL-2011 FTL-7011 Operating Manual & when the transceiver is turned off, or when scanning is disabled (by pressing the button again, so that a channel number is dis- SCAN played). The modes and their corresponding displays are as...
- Page 10 Vertex Operating Manual FTL-1011, FTL-2011 & FTL-7011 to hear only calls intended for you. While scanning, if a signal is received which includes the correct code to open your squelch, the channel number on which the signal appears will be displayed as you hear their call, and the display will then alternate between the scan mode indicator and the channel number.
-
Page 11: Installation
Installation Normally, your Yaesu Dealer will provide complete installation of all stations in your system. However, basic installation informa- tion is provided here for your reference. For mobile service, your transceiver should be installed so the controls, indicators and microphone are easily accessible for opera- tion and viewing, without interfering with road vision, and so that the loudspeaker may be easily heard. -
Page 12: Base Station Installation
Vertex FTL-1011, FTL-2011 FTL-7011 Operating Manual & Base Station Installation The FP-711 AC Power Supply can operate the transceiver from a variety of AC voltages. Connect the fused DC Cable supplied with the transceiver to the terminals on the rear of the FP-711. - Page 13 Vertex Operating Manual FTL-1011, FTL-2011 & FTL-7011 to the cigarette lighter or other existing circuits may result in over- load, or degrade transceiver performance. Always use the supplied DC power cable, which includes fuses to protect you, the vehicle and the equipment. If the cable is too short, use #12 AWG stranded, insulated copper wire to lengthen it.
-
Page 14: Maintenance And Service
Maintenance And Service Keep the outside of the transceiver clean by wiping with a soft cloth as necessary. Avoid rain or immersion in water, and protect the radio from dust as much as possible. Do not open the case. If the radio fails to operate, check the cable connections, and inspect the fuses in the DC cable. -
Page 15: Specifications
5042, unbalanced (SO-239 socket) Voltage Requirement 10.8 to 15.6 V DC, negative ground Current Consumption 300 mA Stby, 700 mA Rx, 7.0 A Tx (FTL-1011: 9A) (approx.) Operating Temperature Range -30 to +60 O C (-22 to +I40 OF) Size... -
Page 16: Supplied Accessories
