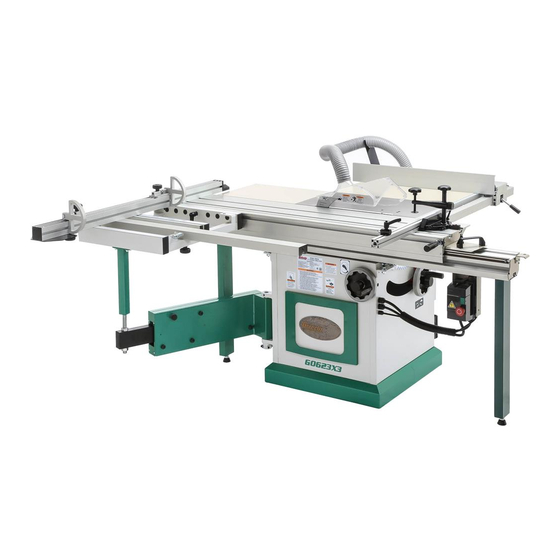

Grizzly G0623X3 Parts List
10" sliding table saw
Hide thumbs
Also See for G0623X3:
- Owner's manual (80 pages) ,
- Owner's manual (96 pages) ,
- Owner's manual (100 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Owner's Manual
��
��
��
��
��
REF PART #
DESCRIPTION
1
P0623X0001
CABINET
2
P0623X0002
COVER PLATE
3
P0623X0003
EMERGENCY STOP BUTTON
4
PHTEK19M
TAP SCREW M5 X 16
5
P0623X0005
BLADE TILT SCALE
6
PLW06M
LOCK WASHER 10MM
7
PN02M
HEX NUT M10-1.5
8
P0623X0008
SWITCH BOX
9
P0623X0009
STRAIN RELIEF
10
PSBS05M
BUTTON HD CAP SCR M6-1 X 20
11
PN01M
HEX NUT M6-1
12
P0623X0012
STRAIN RELIEF M20
13
PN02M
HEX NUT M10-1.5
14
PSS73M
SET SCREW M10-1.5 X 30
15
P0623X0015
DUST PORT 4"
16
PLW03M
LOCK WASHER 6MM
17
PS11M
PHLP HD SCR M6-1 X 16
-60-

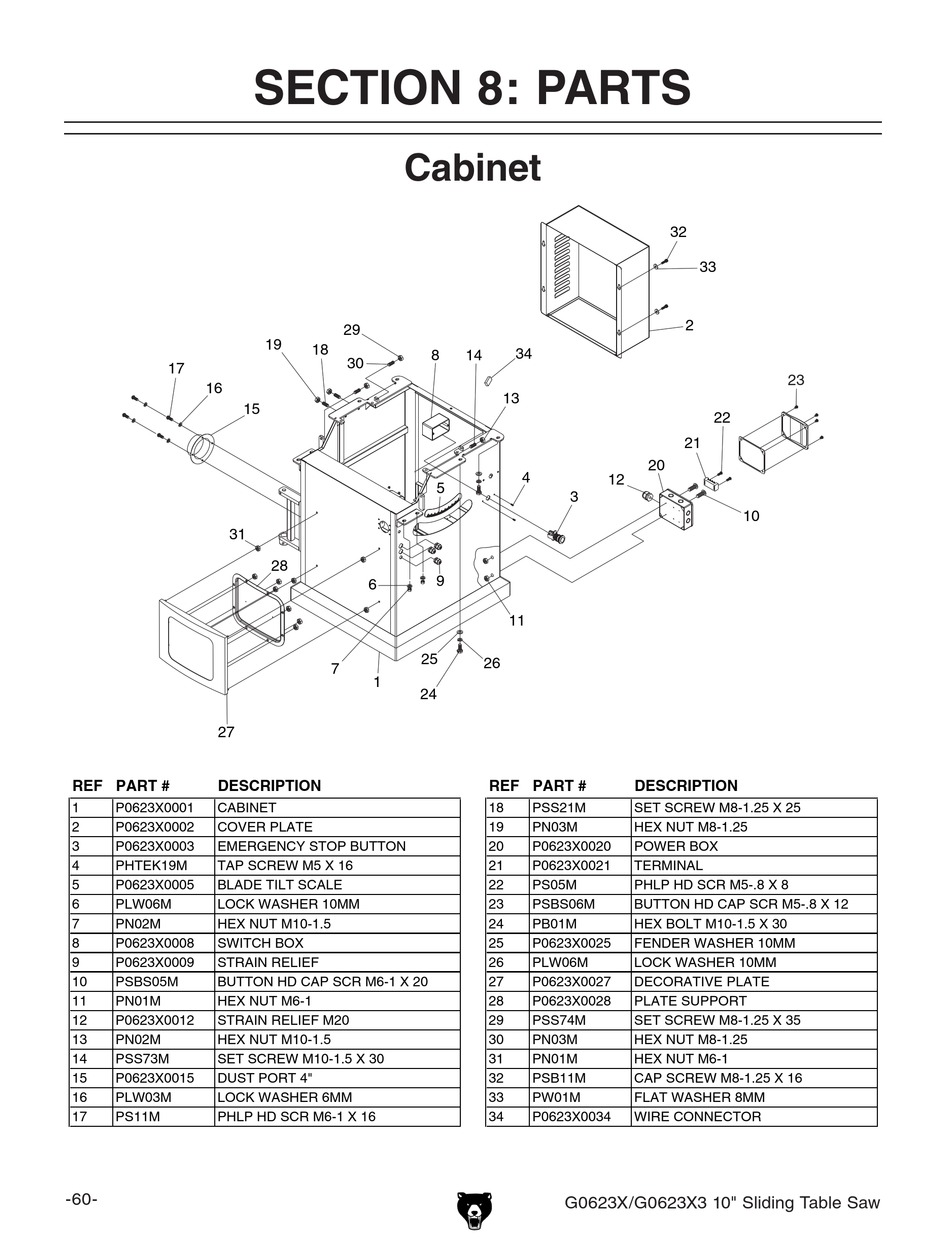

SECTION 8: PARTS
Cabinet
��
��
��
�
��
��
�
��
�
�
��
��
��
��
�
��
�
�
�
��
��
REF PART #
18
PSS21M
19
PN03M
20
P0623X0020
21
P0623X0021
22
PS05M
23
PSBS06M
24
PB01M
25
P0623X0025
26
PLW06M
27
P0623X0027
28
P0623X0028
29
PSS74M
30
PN03M
31
PN01M
32
PSB11M
33
PW01M
34
P0623X0034
G0623X/G0623X3 10" Sliding Table Saw
��
��
�
��
��
��
��
��
DESCRIPTION
SET SCREW M8-1.25 X 25
HEX NUT M8-1.25
POWER BOX
TERMINAL
PHLP HD SCR M5-.8 X 8
BUTTON HD CAP SCR M5-.8 X 12
HEX BOLT M10-1.5 X 30
FENDER WASHER 10MM
LOCK WASHER 10MM
DECORATIVE PLATE
PLATE SUPPORT
SET SCREW M8-1.25 X 35
HEX NUT M8-1.25
HEX NUT M6-1
CAP SCREW M8-1.25 X 16
FLAT WASHER 8MM
WIRE CONNECTOR
