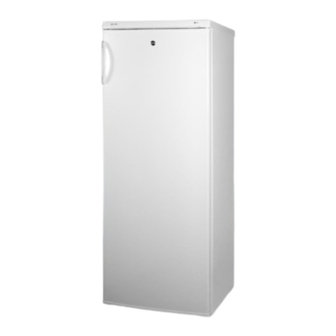

- Page 1 6.4 ft Upright Freezer Model UF850L Owner's Manual Felix Storch, Inc. Summit Appliance Division Write the Serial Number here: 770 Garrison Avenue Bronx, NY 10474 _________________________...
-
Page 2: Table Of Contents
® products, this unit has been manufactured to the high standards identified with the SUMMIT name. We fully expect it to bring you many years of excellent service. Please read this manual before installing and using the unit, and keep the manual in a handy spot for future reference. - Page 3 SUMMIT APPLIANCE Page 2 Do not use an extension cord. This appliance is designed for free-standing installation only. It should not be recessed or built in. Use care not to plug into outlets controlled by wall switches.
-
Page 4: Technical Information
Page 3 SUMMIT APPLIANCE Technical Information Model: UF850L Capacity: 6.4 cubic feet Electrical Input: 115V AC / 60Hz Power Input: 110W Refrigerant: R134a, 4.41 oz. Installation: Free-standing Unit Weight: 117 lbs Unit Dimensions: 21.3"W x 22.3"D x 56.7"H Location of Parts 1. -
Page 5: Installation
SUMMIT APPLIANCE Page 4 Installation When the appliance is to be moved, at least two people should participate. Grasp the freezer firmly at the base and lift carefully while keeping the unit upright. Never tilt it more than 45 degrees. Never turn the unit upside down or lay it on its side, back or front. -
Page 6: Operation
Page 5 SUMMIT APPLIANCE Operation Temperature Control 1. The temperature in the freezer is controlled by the thermostat which is located on the right side of the control panel near the top of the unit. It is marked TEMP CONTROL. Use a coin to change the setting of the thermostat. -
Page 7: Power Light
SUMMIT APPLIANCE Page 6 Note: Fresh fish and meat that will be stored for long periods of time should be fast frozen. To operate Fast Freeze, turn on the left-hand switch on the control panel by pushing "―". The Fast Freeze indicator light will turn on, showing that the unit is now in the Fast Freeze mode. -
Page 8: Operation
Page 7 SUMMIT APPLIANCE 5. Connect your freezer to an independent power outlet. Make sure it is safely grounded. The voltage should be limited to the range of 90V to 127V, otherwise the motor will be damaged. 6. After a power outage, wait 5 minutes before turning the freezer on. Otherwise the compressor may become damaged. -
Page 9: Care And Maintenance
SUMMIT APPLIANCE Page 8 Care and Maintenance Once a month, clean the freezer. See below for cleaning instructions. If you wish to stop using the freezer for a long period of time, make sure you unplug it from the outlet, remove all food, clean and dry the freezer and leave the door open to eliminate any unpleasant odors. -
Page 10: Troubleshooting
If your freezer shows other symptoms than those described above, or if you have checked all items listed as the cause and the problem still exists, then call SUMMIT® Customer Service at 1-800-932-4267 The following are part of normal operation and should not be a cause for concern: 1. - Page 11 SUMMIT APPLIANCE Page 10 Notes...
-
Page 12: Warranty
Page 11 SUMMIT APPLIANCE WARRANTY ONE YEAR LIMITED WARRANTY Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship.
