Wall Mount

Select a site to install the EP10 time recorder that will be
convenient to employees clocking In and Out. The EP10 time
recorder can be mounted directly to a wall. When deciding
where the time recorder will be installed, keep in mind that
115VAC power outlet should be within 6 feet of the mounting
location.

Mounting to a Wall

Note: If you are installing the time recorder on a wall with
drywall, it is recommended to use a "Molly Bolt" or Toggle
Bolt" type of wall anchor.
Run wall adapter
cord from
underneath through
the center hole in
wall-mount bracket.
EP10 Time Recorder User Guide

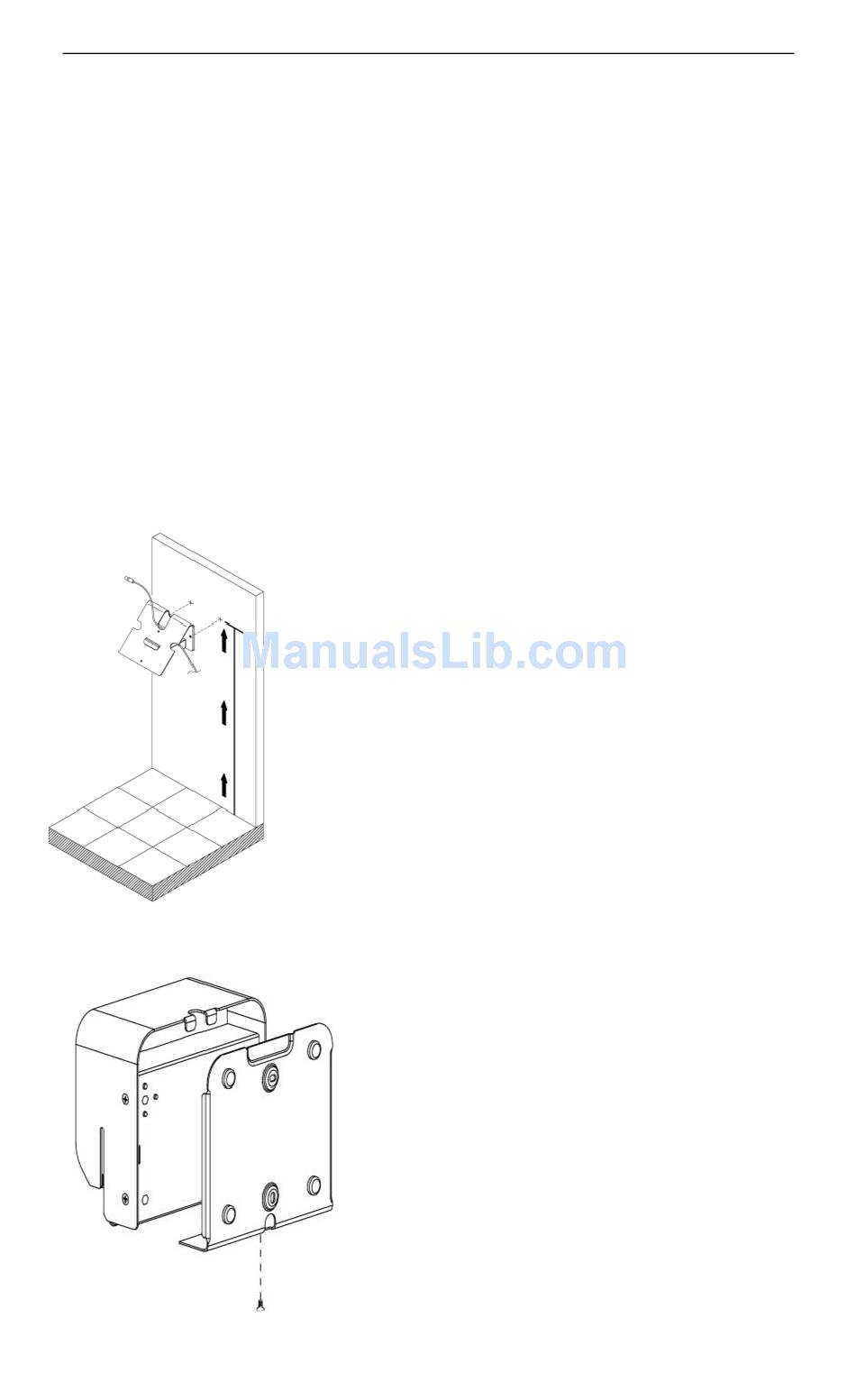

Step 1
Using the wall-mount bracket as a
guide, mark the location on the wall
of where the screws will be installed.
Run the AC wall adapter cord through
hole in the wall-mount bracket and
then install the wall-mount bracket to
48 inches
the wall using the supplied wall-
mount screws. Note: The time
recorder should be mounted for best
visibility, about 48 inches from the
floor.
Step 2
Remove the Philips head screw
holding the back-plate on the
time recorder. Be sure to retain
the Philips head screw for
later.
