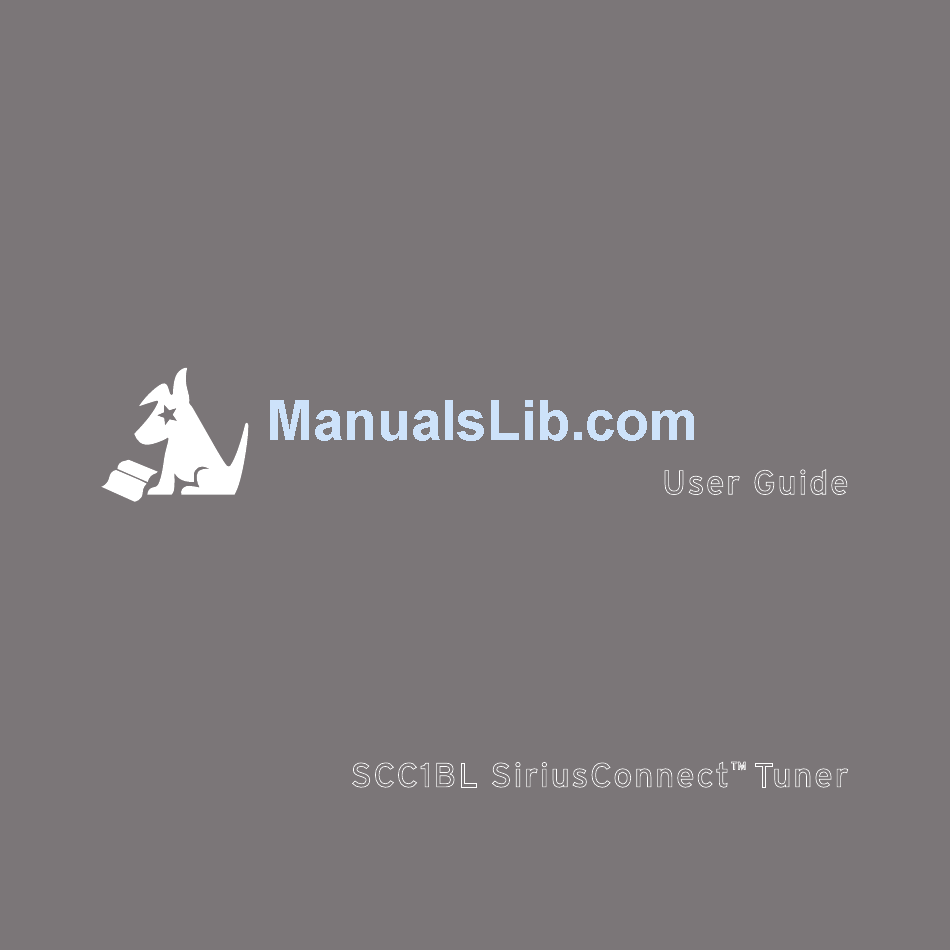

- Page 1 User Guide SCC1BL SiriusConnect Tuner ™ For Special Market Applications...

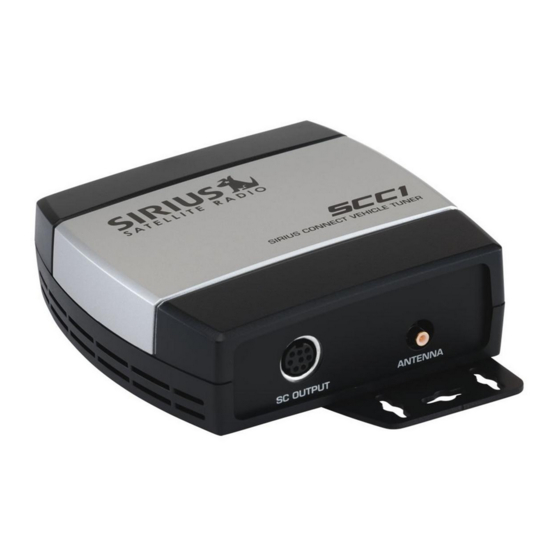

- Page 2 Congratulations on the Purchase of your new SIRIUS SCC1BL SiriusConnect Tuner Kit. The SCC1BL is packaged for Special Market applications which includes the SCC1 SiriusConnect Tuner, SiriusConnect Interface Cable and requires a SIRIUS approved antenna (not included). The SCC1 SiriusConnect Tuner is designed to work with any Sirius-Ready or SAT Radio Ready headunit.
-
Page 3: Table Of Contents
SPeCIfICaTIonS ......13 SIRIUS Id ....... 14... -
Page 4: Warning And Safety Information
Warning and Safety Information Safety Precautions Be sure to observe the following warnings. Failure to follow these safety instructions and warnings may result in a serious accident and/or personal injury. • Install the cables and wiring so that it is not crimped or pinched by screws or sharp metal edges. -
Page 5: Fcc Warning
• Do not install the unit to high levels of humidity, moisture or dust. Doing so can result in electric shock or product failure. FCC Warning This equipment may generate or use radio frequency energy. Changes or modifica- tions to this equipment may cause harmful interference unless the modifications are expressly approved in this User Guide. -
Page 6: Copyrights & Trademarks
Copyrights & Trademarks © 2008 Sirius Satellite Radio Inc. All Rights Reserved. ® “SIRIUS”, the SIRIUS dog logo, “SiriusConnect”, channel names and logos are trademarks of Sirius Satellite Radio Inc. All Rights Reserved. Hardware, subscription, and activation fee required. For full Terms & Conditions, visit http://www.sirius.com. -
Page 7: Package Contents
Package Contents The following items are included with your purchase of the SIRIUS SCC1BL Sirius- Connect Vehicle Tuner Kit. Unpack the kit carefully and make sure that everything shown is present. If anything is missing or damaged, or if the unit fails to operate properly, notify your dealer immediately. -
Page 8: Connections
Audio Ground Audio Left figure 2 Note 1: The Serial Data TX and RX lines in the SiriusConnect Interface cable are crossed. Note 2: The Audio output is 1volt RMS. Note 3: Only use SIRIUS approved antennas with this tuner. Connections... -
Page 9: Basic System Wiring Options
System 1 Antenna SiriusConnect 8-pin DIN Cable Connection Sirius-Ready or SAT Radio Ready headunit with a SiriusConnect 8-pin DIN connector. Note that the headunit must be capable of directly communicating to the SCC1 tuner protocol. System 2 Antenna Headunit cable to SiriusConnect Interface Cable Connection Sirius-Ready or SAT Radio Ready headunit with an optional headunit specific connector/adapter. -
Page 10: Installation
Any location where the tuner cannot get adequate ventilation. • Any location that would interfere with moving parts on the vehicle or hamper driving. A SIRIUS satellite radio antenna (not included) is required for installation. mounting the SCC1 Tuner Be sure that you find a location that is flat and has clearance above the unit to prevent any damage as well as allowing for ventilation. -
Page 11: Alternate Mounting Methods
Alternate Mounting Methods The mounting plate can be removed allowing the SCC1 to be mounted directly to a surface using either double-sided stick tape, hook and loop, or other adhesive material. Simply remove the 2 screws on the bottom of the SCC1 tuner to remove the bracket, as shown in Figure 3 (right). -
Page 12: Operation
Operation Activating Your SCC1 Tuner You must activate the SCC1 tuner before you can begin to receive the SIRIUS Satel- lite Radio Service. In order to activate your radio subscription, you will need the SIRIUS ID (SID) which uniquely identifies your tuner. The SID can be found on a sticker located on the SCC1 packaging, or on the bottom of the SCC1 itself. -
Page 13: Specifications
Specifications Operation Frequencies ........... Satellite . -
Page 14: Sirius Id
SIRIUS ID Write down the SIRIUS ID (SID) of your SCC1 Tuner in the space provided below. SID: SIRIUS ID... - Page 16 SIRIUS Satellite Radio Inc. 1221 Avenue of the Americas New York, NY 10020 800.869.5590 SCC1BL (SCC1BL063008a) OO.ABCD1.001...
