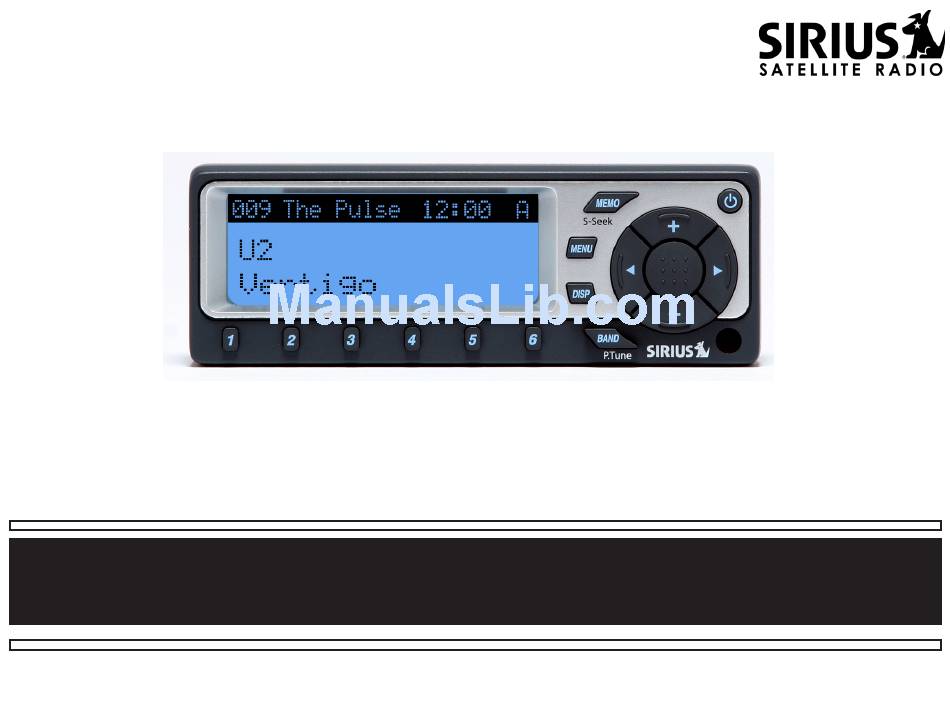

SC-FM1 Universal FM Modulated
SIRIUS Satellite Radio Tuner
User Guide

Advertisement

Table of Contents
loading

Related Manuals for Sirius Satellite Radio Sirius Starbase SC-FM1

Summary of Contents for Sirius Satellite Radio Sirius Starbase SC-FM1

  • Page 1 SC-FM1 Universal FM Modulated SIRIUS Satellite Radio Tuner User Guide...

  • Page 2: Table Of Contents

    CONGRATULATIONS! Your new SC-FM1 Universal FM Modulated SIRIUS you enjoy SIRIUS Satellite Radio’s digital entertainment in your vehicle. Use this guide to familiarize yourself with all of SC-FM1’s features and capabilities. For the latest information about this and other SIRIUS products, please visit http://www.siriusradio.com Table of Contents Safety Precautions ...

  • Page 3: Safety Precautions

    © 2004 SIRIUS Satellite Radio Inc. ® “SIRIUS,” the SIRIUS dog logo, channel names and logos are trademarks of SIRIUS Satellite Radio Inc. “NFL” and the NFL Shield logo, and the NFL Sunday Drive name and logo are registered trademarks of the National Football League. “NHL” and the NHL Shield are registered trademarks of the National Hockey League.

  • Page 4: Fcc Warning

    subject it to strong shocks. • If the LCD display on the Display Control Unit becomes damaged or broken, do not touch the liquid crystal fluid. The fluid can be dangerous to your health. If the liquid crystal fluid contacts your body or clothing, immediately wash it off with soap and water.

  • Page 5: Cleaning The Display Control Unit

    of more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the SC-FM1 system. • Connect the equipment to a different circuit from the one to which the SC-FM1 system is connected.
  • Page 6 Display Control Unit (DCU) MEMO ..S-Seek MENU DISP BAND P-Tune SC-FM1 User Guide...

  • Page 7: Display Control Unit (Dcu) Controls And Features

    Display Control Unit (DCU) Controls and Features 1. POWER Button : Turns the Display Control Unit On and Off. 2. CHANNEL Buttons ( –): Navigates through channels and display screens, and highlights items on the display. Pressing the + button increases or moves up in the menus.

  • Page 8: Remote Control

    Remote Control 1. POWER Button : Turns the Display Control Unit ON and OFF. 2. CHANNEL Buttons (< >): Navigate through channels and display screens. 3. CATEGORY Buttons: Navigates through categories and display screens. 4. MUTE Button: Mutes the audio. 5.

  • Page 9: Activating Your Sirius Subscription

    Activating your SIRIUS Subscription Before you can listen to the SIRIUS service, you must subscribe to the SIRIUS Satellite Radio service. 1. Make sure that the SC-FM1 Tuner and Display Control Unit is properly connected and that its antenna is oriented to receive the SIRIUS satellite signal.

  • Page 10: Basic Operation

    Basic Operation After you have successfully activated your SIRIUS subscription, the Default screen will appear ( shown below ). Use the + and – buttons to highlight channels. • The selected channel will automatically start playing. The artist name and song title of the currently playing song will display.

  • Page 11: Direct Tuning (Remote Control Only)

    1. Use the < and > buttons to scroll through the music and entertainment categories. 2. Use the + and – buttons to scroll through the available channels in each category. 3. When the channel you want is highlighted, press the SELECT button to tune to the channel. The channel will change and the display will revert to the default screen for the new channel.

  • Page 12: Advanced Features

    Advanced Features Setting Channel Presets You can store up to 30 of your favorite channels as presets, for quick access. Presets are stored in 5 banks, each containing 6 channel presets, numbered 1 to 6. 1. Press the BAND button to activate the preset bank you want.

  • Page 13: Preset Tune Mode

    CH NAME 12:00 Artist Name Artist Name Song Title Song Title Default Display To exit the Preset Tune Mode and return to Channel Tune Mode, press and hold the BAND button. Preset Tune Mode In the Preset Tune Mode, you can view your list of presets showing Channel Name, artist Name, or Song Title just like in the Channel List Mode: 1.

  • Page 14: Memory (Memo) And Song-Seek (S-Seek) Functions

    Memory (MEMO) and Song-seek (S-Seek) Functions This feature allows the user to capture and store information about the programming (Artist/Song or sports team) on the currently tuned channel, up to a total of 20 listings. The Display Control Unit also has the capability to continuously search all incoming SIRIUS channels and alert the user when a saved program is being played.
  • Page 15 Alert Type Initial Game Alert All Score Updates “Initial Game Alert” will sound an alert when the team you have chosen is playing a game. “All Score Updates” will sound an alert when the team you have chosen is playing a game, and also when the scores are updated for the team.

  • Page 16: Viewing Programmed Information Stored In Memory

    Viewing Programmed Information stored in Memory 1. Press and hold the MEMO button for 1½ seconds to enter S-Seek Mode. The program information stored in memory will be displayed one-at-a-time in page format. 2. Use the + or – buttons to scroll through the listings.
  • Page 17 confirmation screen will appear. Highlight the “Yes” option using the + and – buttons and press the SELECT button to confirm. S-Seek With the S-Seek option enabled, whenever the Display Control Unit is turned on, it automatically searches the incoming channels to determine if a match exists with the program information stored in Display Control Unit’s memory.

  • Page 18: Menu Display Options

    Menu Display Options To enter the Menu Options page, press the MENU button. The “Menu Options” list will be displayed. Menu Options Sirius ID Game Alert Using the + and – buttons, highlight the option you wish to adjust and press the SELECT button. The following options are available: Sirius ID Confirmation Tone...
  • Page 19 You may select one team from each sports league and the college category, however, more teams may be chosen by using the MEMORY (MEMO) function. (See the section titled, “Memory (MEMO) and Song Seek (S-Seek) Functions” for more information to add additional teams.) To choose teams to add to your stored game alerts: 1.

  • Page 20: Fm Frequency

    FM Frequency The FM frequency that the SC-FM1 Tuner transmits on can be changed with this option. For best performance, first find a frequency on your FM radio that is clear of any broadcast station, and then select the corresponding frequency on the Display Control Unit.

  • Page 21: Auto Select

    menu, press the MENU button. Auto Select Auto Select chooses whether Unit immediately tunes to a channel when the channel is highlighted or whether you must first press the SELECT button in order to tune to a highlighted channel in any of the list modes. Turn Auto Select ON if you would like to automatically tune to the highlighted channel without pressing the SELECT button.

  • Page 22: Add Or Skip

    is ON. To change the tone option, perform the following: 1. Use the + and – buttons to highlight the “Confirmation Tone”. Press the SELECT button. Confirm. Tone 2. Use the + and – buttons to highlight “ON” or “OFF”. Press the SELECT button to choose the selected option.

  • Page 23: To Add A Channel

    To Add a Channel: To add a skipped channel back into the channel list: 1. Use the + and – buttons to highlight “Add or Skip”. Press the SELECT button. 2. A list of channels for the category you were in is displayed.

  • Page 24: To Change The Lock/Unlock Code

    from 1111 to 6666. The numbers 0, 7, 8, and 9 are not valid entries. If you should exit this prompt without entering a code, you will be prompted to set a code next time you enter the Channel Lock feature. 4.

  • Page 25: Memory Options

    Lock/Unlock Enter Code Edit Code 3. At the prompt, enter your four digit code. 4. The “New Code” prompt will appear. Enter your new four digit code using the 1-6 number buttons on the Display Control Unit, or the 1-6 numbers using the remote.

  • Page 26: Time Based Features

    Clear All Memory To exit, press the MENU button. Time Based Features This feature allows for adjustment of the following items: Clock - Sets the time zone and daylight savings time function. Alarm Clock - Sets an alarm for a specific time.

  • Page 27: To Set Daylight Savings Time

    Time Zone (GMT -8:00) Pacific (GMT -7:00) Mountain To exit the Clock menu, press the MENU button. To Set Daylight Savings Time: 1. From the “Clock” menu, use the + and – buttons to highlight “Daylight Savings Time” and press the SELECT button. Clock Time Zone Daylight Savings Time...

  • Page 28: To Turn The Alarm Clock On Or Off

    5. Press the SELECT button to set the alarm time and exit. To exit the Clock menu, press the MENU button. To Turn the Alarm ON or OFF: 1. From the “Alarm Clock” menu, use the + and – buttons to highlight “Set Alarm”. Press the SELECT button.

  • Page 29: Factory Default

    Based Features” and press the SELECT button. 2. Use the + and – buttons to highlight “Sleep Mode” and press the SELECT button. 3. Use the + and – buttons to highlight a selection and press the SELECT button. The unit will now turn itself off after the chosen period of time has elapsed.
  • Page 30 • Auto Shutdown Off • Sleep Mode Off The Display Control Unit will then display “Call 1- 888-539-SIRIUS to Subscribe” and will place you in Channel 184, the SIRIUS preview channel. Your unit is still subscribed to the SIRIUS service. SC-FM1 User Guide...

  • Page 31: Troubleshooting

    Troubleshooting This section lists several common problems and suggested solutions. If, after trying the suggested solutions listed here, you are still unable to resolve the problem you’re having with your Control Unit, contact your installer, dealer, or retailer for more help. Problem Display Control Unit does not turn on...

  • Page 32: Specifications

    Specifications Satellite Frequencies ... 2322.293/2330.207 MHz Terrestrial Frequencies ... 2326.250MHz Power Requirements ... 9-16 Volts DC Audio Output ... 1.5V (normal) 2.2V (max.) (Peak-to-Peak) Total Harmonic Distortion (THD) ... <0.2% Signal-to-noise (S/N) ... Greater than 73dB Fuse Requirement ... 2A ATC Power Supply ...

  • Page 33: Month Limited Warranty

    12-MONTH LIMITED WARRANTY SIRIUS Satellite Radio Inc. (the “Company”) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company’s option) without charge for parts...
  • Page 34 Notes: SC-FM1 User Guide...
  • Page 35 Please record the SIRIUS ID (SID) in the space provided below: SIRIUS ID: SIRIUS Customer Service: 1-888-539-7474 SIRIUS Product Support: 1-800-869-5590 customercare@sirius-radio.com SC-FM1 User Guide...
  • Page 36 SIRIUS Satellite Radio Inc. 1221 Avenue of the Americas New York, NY 10020 1-888-539-7474 www.sirius.com © 2005 SIRIUS Satellite Radio Inc. SC-FM1 (Rev. 2, February 2005)
