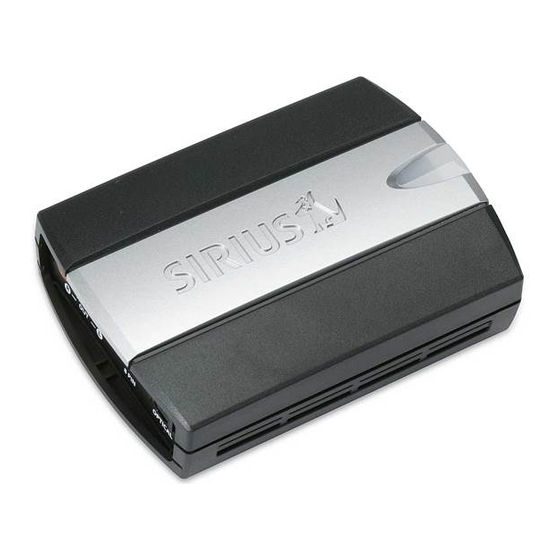

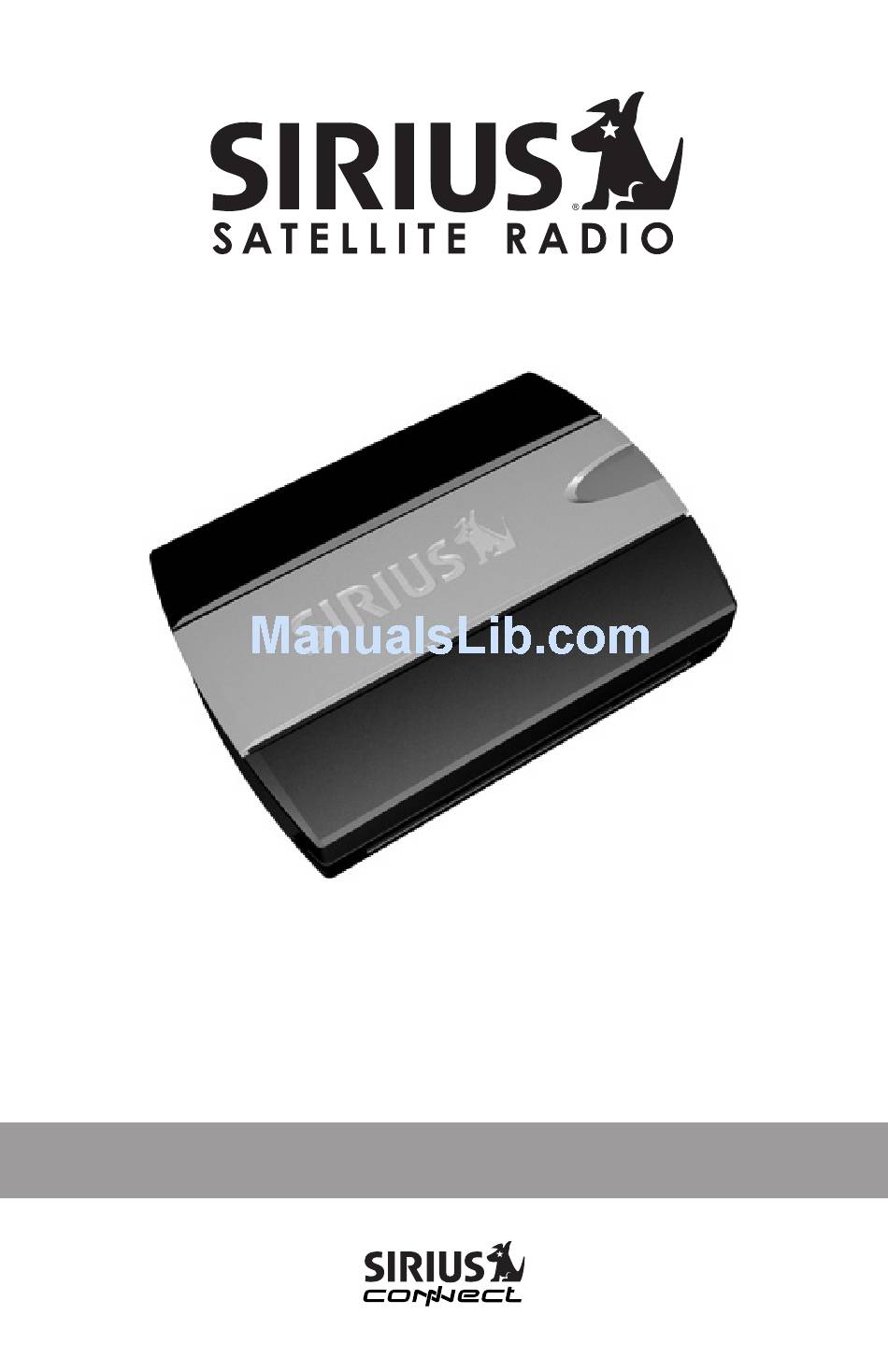

- Page 1 SC-H1 SIRIUS SATELLITE RADIO TUNER Installation Guide...
-
Page 2: What Is Sirius Satellite Radio
Your new SC-H1 SIRIUS Connect Tuner is designed to work with SIRIUS-ready receivers. Check the SIRIUS website for model compatibility. What is SIRIUS Satellite Radio? Over 10 channels of the best entertainment and completely commercial-free music for your car, home or office. -
Page 3: Table Of Contents
Table of Contents Package Contents ...3 Warnings and Cautions ...4 Installation ...5 Mounting the SC-H1 Tuner ...5 Installing the Antenna ...5 Wiring the SC-H1 Tuner ...7 Activating Your SIRIUS Subscription ...7 Operation ...8 Specifications ...9 Package Contents SC-H1 SIRIUS Connect Tuner Windowsill Antenna AC Power Adapter DIN Cable... -
Page 4: Warnings And Cautions
WARNING This symbol means important instructions. Failure to heed them can result in serious injury or death. Any function that requires your prolonged attention should only be performed after coming to a complete stop. Always stop the vehicle in a safe location before performing these functions. -
Page 5: Installation
Installation It is recommended that prior to starting the installation, you read this installation section completely and follow the instructions. In addition, consult the manual of the audio device to which you will be connecting the SC-H1 Tuner to determine the required installation configuration: •... - Page 6 antenna is located in a place where it will have a clear view of the SIRIUS satellites in the sky. Obstructions such as bushes, trees, other homes or buildings, overhangs, soffits, chimneys, gables, dormers, etc., will impair or prevent the antenna from receiving a signal.
-
Page 7: Wiring The Sc-H1 Tuner
If the tuner loses reception at times, this is indication that the antenna is not aimed in the optimal direction. Try adjusting the antenna by changing the aiming in small increments to see if you can obtain consistent signal reception. If you are having trouble locating your antenna in a place for optimal signal reception, please visit your retailer or our... -
Page 8: Operation
Operation Consult the owners manual of your SIRIUS-ready receiver for operating instructions. The SC-H1 Tuner has an indicator light which provides basic status information about the tuner. When the tuner is first powered on, this light will be red to indicate the tuner is receiving power. -
Page 9: Specifications
Specifications Operational Frequencies Satellite ...2322.293/2330.207 MHz Terrestrial ...2326.250MHz Power Requirements ... 5 Volts DC Dimensions ... 1” x 2.6” x 3.6” (WxHxD) Antenna Type ... Windowsill Antenna Cable Length ... 21’ (single micro-cable) Connector Type ... SMB Audio Interface ...RCA-type Stereo L/R Connectors Audio Output...0.75v, 550 Ohm Signal to Noise Ratio ...80dB Weight ... -
Page 10: Sirius Satellite Radio
SIRIUS Satellite Radio 11 Avenue of the Americas New York, NY 1000 (888) 9- www.sirius.com SC-H1 (091707) © 2007 SIRIUS Satellite Radio Inc. ® “SIRIUS” and the SIRIUS dog logo are registered trademarks of Sirius Satellite Radio Inc.
