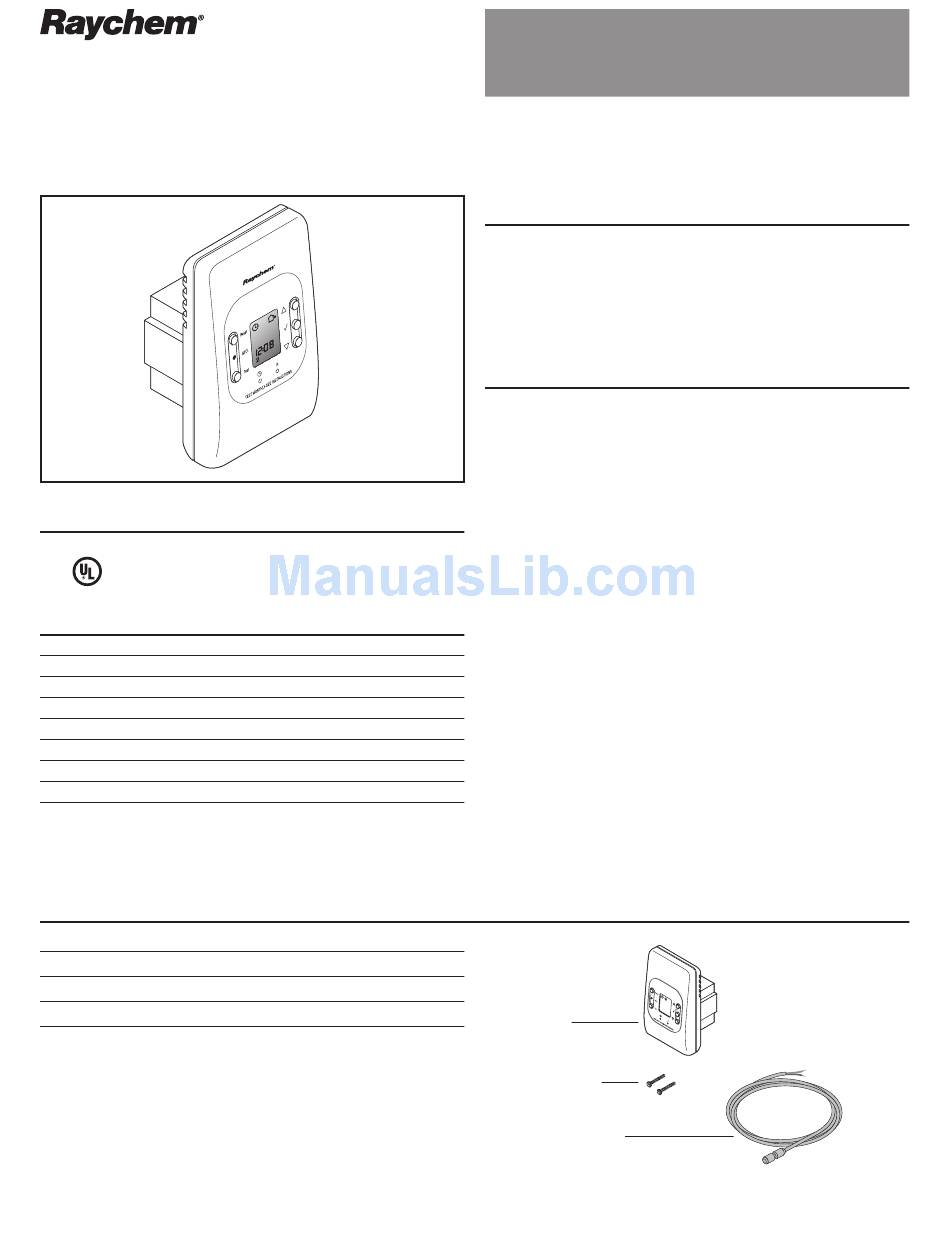

Raychem QuickStat Installation & Operation Manual

Specifications

Approvals
E255369
C US
LISTED
2D03
Technical Data
Supply Voltage
Maximum switching current
Wiring
GFCI
Temperature control range
Ambient temperature range
Thermostat
GFCI
Kit contents
A 1 QuickStat thermostat
B 2 Mounting screws
C 1 Floor temperature sensor 10 ft (3m)
120 V, 208 V, 240 V ±15%, 50/60 Hz
15 A
12 AWG to 22 AWG
Class A, 5 mA trip level (at 120 V only)
40 to 104°F (5 to 40°C)
32 to 104°F (0 to 40°C)
– 31 to 149°F (– 35 to 65°C)
QuickStat Thermostat
®
Installation & Operation Manual

General Information

Use of this Manual
This manual covers the installation and operation of the Raychem
QuickStat thermostat and must be used with the following document:
®
• QuickNet System Installation Manual (H57704)
®
Important: For the Tyco Thermal Controls warranty and agency approv-
als to apply, the instructions included in this manual and product pack-
ages must be followed.
Features
QuickStat is an electronic thermostat that must be used with the
Raychem QuickNet floor heating mats.
QuickStat provides the following features:
• Includes an integrated Class A, Ground-fault Circuit Interrupter (GFCI)
at 120 V. If the QuickStat is powered at 208 V or 240 V, a separate
GFCI must be used.
• Operates at 120 V, 208 V, 240 V 50/60 Hz.
• Switches on your heating system at predetermined times on different
days of the week.
• Offers 4 periods (called events) each day that you can set at different
temperatures.
• Comes with a preprogrammed schedule that is suitable for most
installations. However, you can customize this program any time you
wish.
• Allows you to reset the thermostat to factory settings.
• Changes the start time of a heating period automatically so that the
desired temperature is reached at the time that you set.
• Controls the temperature of the floor through a temperature sensor
that is placed in the floor construction.
A
B
C
®
