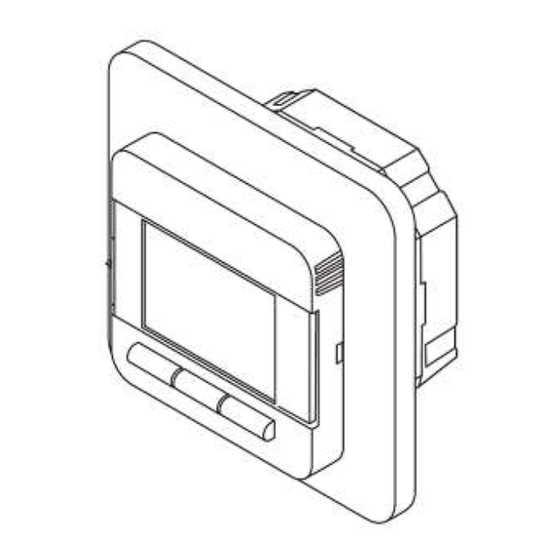

- Page 1 User guide thermostat - electrical under floor heating nVent Raychem NRG-DM Software Version 1.60 nVent.com...
-
Page 2: Table Of Contents
Indhold 1. Description ......................3 2. Navigation principle ....................4 3. Getting started ....................... 5 4. Working modes ...................... 6 4.1 Event Mode - weekly schedule mode ..............6 4.2 Constant Mode - single temperature mode ............6 4.3 Boost Mode - temporary override mode ............6 5. -
Page 3: Description
1. Description The electronic under floor heating thermostat has already been set up to function in a way which gives you the best possible comfort at the lowest possible energy consumption. This user guide only has to be used in case of power failure or other unforeseen events which call for e.g. -
Page 4: Navigation Principle
2. Navigation principle 1. On/off switch 2. Day and time 3. Working Mode 4. Heating symbol 5. Display temperature 6. Three commands 7. Three buttons Figure 1 Only 4 buttons are used to navigate, highlighted with bold above Use the button (7) in order to execute the command (6). In the example on figure 1: ... -
Page 5: Getting Started
3. Getting started The thermostat is set up with a factory setting to give you the best possible comfort at the lowest possible energy consumption. If you have changed the settings, or there has been a power failure, you can return to the factory settings by using the three buttons (no. 7 - see page 4) and press forward to the menu “Factory reset”. -
Page 6: Working Modes
4. Working modes 4.1 Event Mode - weekly schedule mode The Event Mode is the most energy efficient mode. In this mode a weekly schedule has been set up, and it can easily be adapted to your needs. The weekly schedule in the Event Mode is based on a 7 days schedule where each day can be defined as 1 to 6 events. - Page 7 When activating the Boost Mode, the thermostat will ask you to confirm the requested temperature and duration of the temporary override. The Boost Mode is identified on the screen by the following Boost icons: When coming from the Constant Mode ...
-
Page 8: Changing/Consulting Settings
5. Changing/consulting settings 5.1 Event settings - programming a weekly schedule The Event settings are used in order to program or adapt a weekly schedule used in the Event Mode. Programming the weekly schedule is done in 3 steps: Step 1: Select a day or a sequence of days to program. Figure 9 Step 2: Program up to 6 periods for this day: Period 1:... - Page 9 Figure 11 Period 2: Duration = From 07:00 to XX:XX Figure 12 Temperature = XX,X ° C Figure 13 Period 3-6 (or when 24:00 is reached) Step 3: Decide if you want to copy this programming for the next day. You can repeat steps 1 to 3 for other days if needed.
-
Page 10: User Settings
5.2 User settings 5.2.1 Time and date With the Time and date setting, you can adjust the clock and calendar. 5.2.2 Child lock By activating the child lock, the thermostat will go to the home screen and a lock sign will appear on the screen.
