Summary of Contents for Grizzly G5352
-

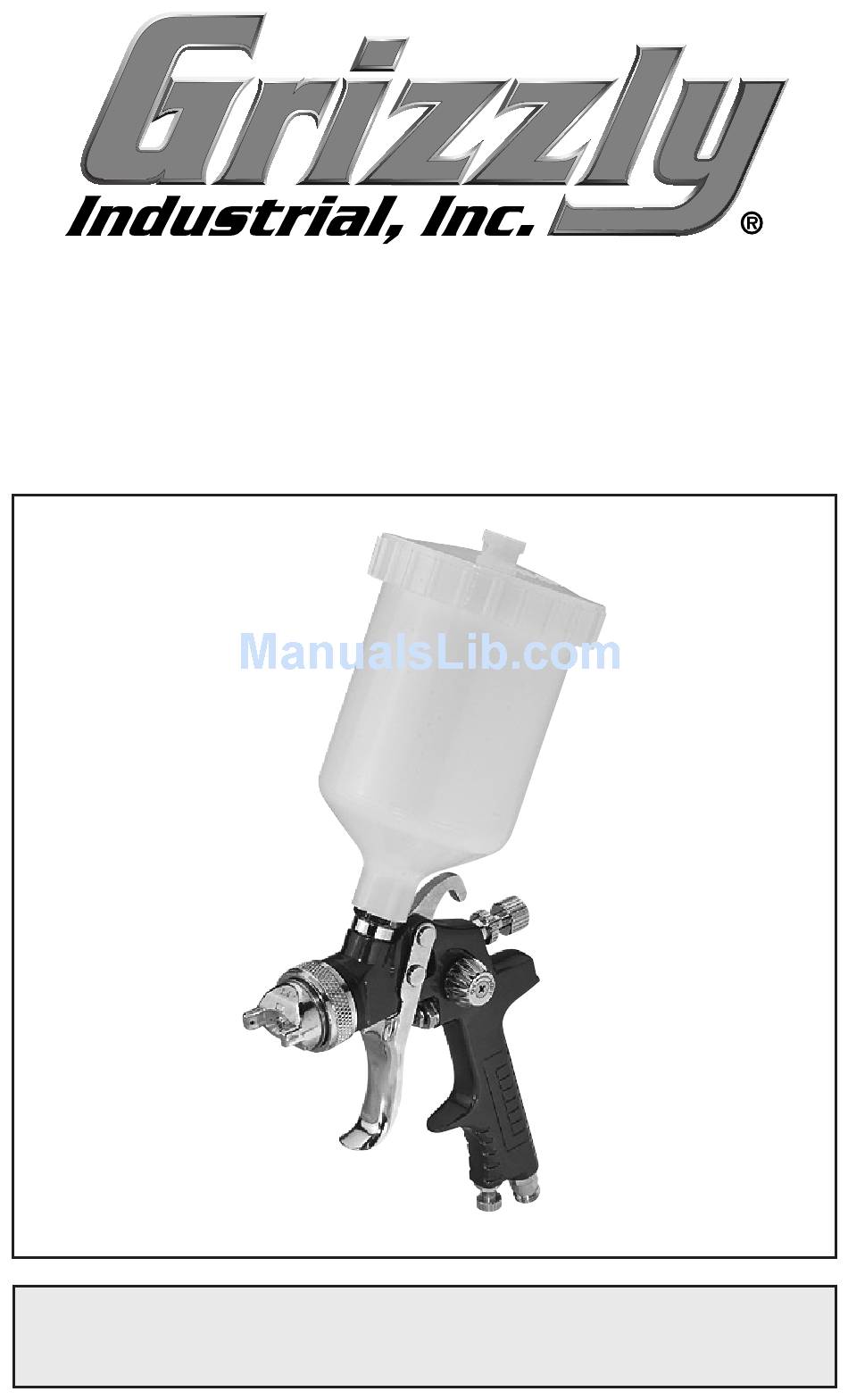

Page 1: Spray Gun
SPRAY GUN MODEL G5352 INSTRUCTION MANUAL COPYRIGHT © MAY, 2006 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. #PC8211 PRINTED IN TAIWAN... -
Page 2: Section 1: Safety
USE THE RIGHT TOOL. Do not force tool or attachment to do a job for which it was not designed. INFLUENCE ALCOHOL. WORKSHOP CHILD UNDER DRUGS Model G5352 Spray Gun... - Page 3 UNINTENTIONAL STARTING. Do not carry tool with hand on trig- ger and always disconnect from air when not in use. Model G5352 Spray Gun 17. DISCONNECT TOOLS before ser- vicing and changing accessories. 18. DO NOT OVERREACH. Keep proper footing/balance at all times.
-
Page 4: Additional Safety Instructions For Spray Guns
NOT exceed the recommended inlet air pressure. Excessive pres- sure could cause the spray gun to burst or cause other internal equip- ment damage. 14. LOCAL authorities regarding exhaust and waste disposal requirements. PRESSURE. LAWS. Consult local Model G5352 Spray Gun... -
Page 5: Section 2: Introduction
SECTION 2: INTRODUCTION Foreword We are proud to offer the Grizzly Model G5352 Spray Gun. This model is part of a growing Grizzly family of fine tools. When used according to the guidelines set forth in this manual, you can expect years of trouble-free, enjoyable operation, and proof of Grizzly’s commitment to customer... -
Page 6: Tool Data Sheet
Greater Than FLUID PRESSURE CUP MATERIAL Aluminum MAX. PATTERN WIDTH BODY MATERIAL Painted Metal Solids, i.e.. MATERIAL USAGE Enamels & Lacquers WATERBORNE MATERIAL COMPATIBLE G5352 600 ml Gravity 1.4 mm 5 CFM 10 PSI 250mm Medium Model G5352 Spray Gun... -
Page 7: Section 3: Set Up
Otherwise, filing a freight claim can be difficult. After you have unpacked the carton you should find the following: Model G5352 Inventory (Figure 1) A. Large Spray Gun ... 1 B. Cup ... 1 C. Service Wrench ... 1 D. - Page 8 Trigger: Two stage trigger. Stage one only releases compressed air for blowing off the work piece. Stage two sprays material. Lightly squeeze the trigger for stage one. Squeeze the trigger all the way to spray. Controls Fluid Control Pattern Control Model G5352 Spray Gun...
-
Page 9: Section 4: Operations
Model G5352 Spray Gun Spraying The Model G5352 gravity feed spray gun set is designed to spray a wide variety of materials such as lacquers, stains, primers, multi-component paints, clear coats, acrylics, epoxies etc. - Page 10 13. The spray stroke should have even con- sistency and parallel edges. If it doesn't, please refer to Troubleshooting on Page 15. CONTAMINATION HAZARD! Dispose of paint waste in a responsible man- ner! Follow manufacturer's recom- mendations and local laws regarding disposal. Model G5352 Spray Gun...
-
Page 11: Atomizing Cap And Fan Adjustments
Page 13). Holes Stroke Figure 6. Set up for horizontal stroke direction with vertical fan pattern. Model G5352 Spray Gun Stroke Figure 7. Set up for vertical spray stroke with horizontal fan pattern. Rotating the pattern adjustment control in Figure 7 will give you a range between the two patterns in Figure 8. -
Page 12: Section 5: Accessories
H3174—Air Blow Gun with 2 Tips This air blow gun includes a safety tip and rubber tip for all normal air cleaning jobs. ⁄ " NPT . Figure 12. H3174 Air Blow Gun with 2 ⁄ " NPT. pressure regulator. Tips. Model G5352 Spray Gun... -
Page 13: Section 6: Maintenance
Fluid Tip Needle Atomizing Spring Figure 13. Disassembly for cleaning. Model G5352 Spray Gun 5. Unscrew the atomizing cap with your fingers and the fluid tip with the ser- vice wrench. The fully disassembled gun should look like Figure 13. - Page 14 C. Trigger Pin D. Air Flow Control Valve E. Pattern Control F. Fluid Control Knob Allow the lubricant to coat threads, and run into gun body to lubricate all moving parts and seals. Figure 14. Lubrication points. Model G5352 Spray Gun...
-
Page 15: Troubleshooting
1. No pressure at gun. 2. Fluid passages dirty. 3. Fluid control closed. 4. Out of paint. 5. Material too thick. Model G5352 Spray Gun Troubleshooting Solution 1. Tighten fluid tip or replace seat with new one. 2. Add material. - Page 16 1. Lower inlet air pressure. 2. Keep gun at recommended distance. 3. Slow down and maintain consistent even parallel stroke. 1. Clean or replace both. 1. Install an in-line air filter. 2. Replace air line. Model G5352 Spray Gun...
- Page 17 P5352009 CONNECTOR FOR 0.6 CUP P5352010 GUN BODY P5352011 AIR VALVE ASSEMBLY P5352012 SPRAY REGULATING NUT P5352013 CONTROL KNOB P5352014 PAINT NEEDLE COMPLETE P5352015 SPRING FOR PAINT NEEDLE P5352016 GASKET Model G5352 Spray Gun �� �� �� �� �� �� �...
-
Page 18: Warranty And Returns
WARRANTY AND RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. - Page 19 ____20-29 ____50-59 How long have you been a woodworker/metalworker? ____0-2 Years How many of your machines or tools are Grizzly? ____0-2 Do you think your machine represents a good value? ____Yes Would you recommend Grizzly Industrial to a friend? ____Yes Would you allow us to use your name as a reference for our customers in your area? Note: We never use names more than 3 times.
- Page 20 Send a Grizzly Catalog to a friend: Name________________________________ Street________________________________ City______________State______Zip_______ FOLD ALONG DOTTED LINE GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069 TAPE ALONG EDGES--PLEASE DO NOT STAPLE Place Stamp Here...
