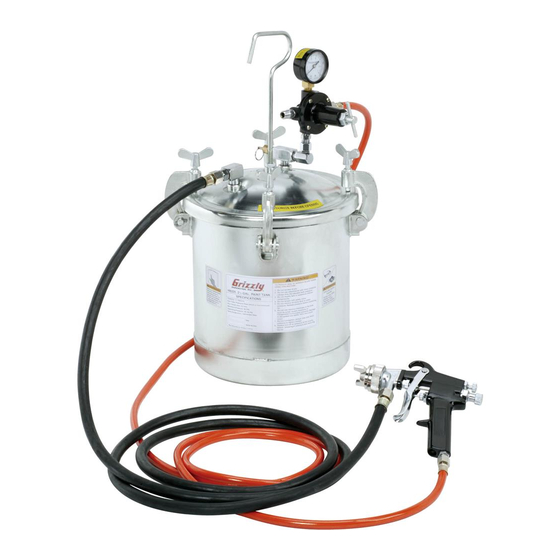

Instruction Manual
��
��
��
��
��
��
REF PART #
DESCRIPTION
1
PH8225001 FLUID OUTLET ADAPTER
2
PH8225002 FLUID TUBE
3
PH8225003 HINGE PIN
4
PH8225004 COTTER PIN
5
PH8225005 LID CLAMP
6
PH8225006 WING SCREW M10-1.5 X 40
7
PH8225007 FLUID OUTLET ADAPTER
8
PN03M
HEX NUT M8-1.25
9
PH8225009 HANDLE M8-1.25
10
PH8225010 SAFETY VALVE
11
PH8225011 T-BRANCH
-18
-

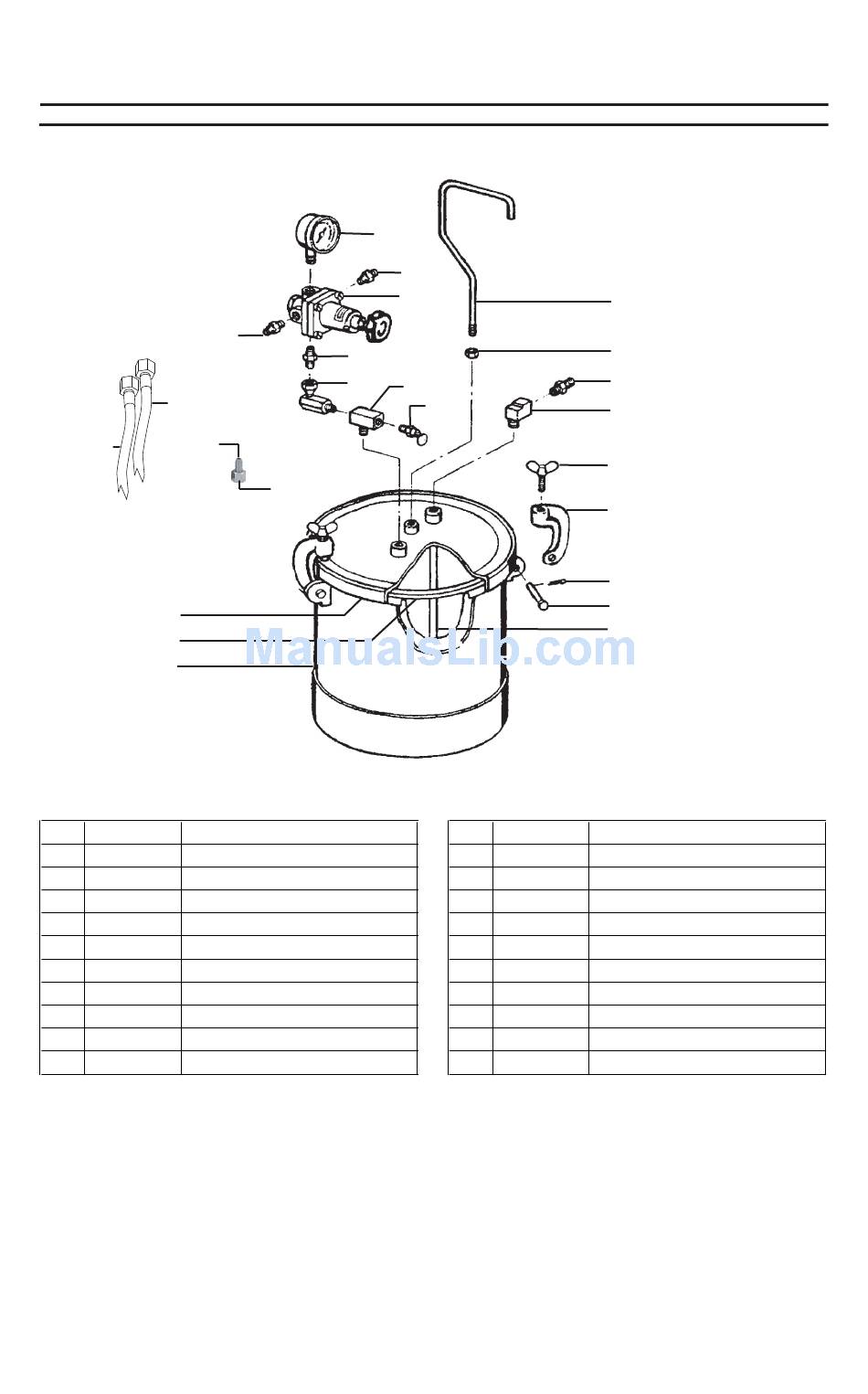

H8225 PAINT TANK
��
��
��
��
��
��
��
��
��
REF PART #
12
PH8225012 SWIVEL ADAPTER
13
PH8225013 REGULATOR
14
PH8225014 GAUGE
15
PH8225015 ADAPTER
16
PH8225016 LID ASSEMBLY
17
PH8225017 LID GASKET
18
PH8225018 TANK SHELL ASSEMBLY
19
PH8225019 MATERIAL HOSE
20
PH8225020 AIR HOSE
21
PH8225021 BARBED HOSE FITTING
22
PH8225022 COMPRESSION NUT 1/4" NPT
Model H8225 2
�
�
�
�
�
�
�
�
�
DESCRIPTION
⁄
Gallon Paint Tank with Gun
1
2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Grizzly Paint Tank H8225
Summary of Contents for Grizzly Paint Tank H8225
- Page 1 H8225 PAINT TANK �� �� �� �� �� �� �� REF PART # DESCRIPTION PH8225001 FLUID OUTLET ADAPTER PH8225002 FLUID TUBE PH8225003 HINGE PIN PH8225004 COTTER PIN PH8225005 LID CLAMP PH8225006 WING SCREW M10-1.5 X 40 PH8225007 FLUID OUTLET ADAPTER PN03M HEX NUT M8-1.25 PH8225009 HANDLE M8-1.25...
- Page 2 H8225 SPRAY GUN ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� REF PART # DESCRIPTION PH8225101 AIR INLET PLUG PH8225102 BLOCK PH8225103 GUN BODY PH8225104 DIRECTION PIPE PH8225105 FLUID ADJ. NEEDLE PH8225106 SPECIAL WASHER PH8225107 FLUID CONTROL SCREW PH8225108 FLUID ADJ.
