SWR LA 8 User Manual

La series combo amp
Hide thumbs

Advertisement

Quick Links

S
W
R
S
O
U
N
D
C
O
R
P
O
R
A T
I
O
N
LA SERIES
USER GUIDE
SWR SOUND CORPORATION
9130 Glenoaks Blvd.
Sun Valley, CA 91352 USA
PHONE: (818) 253-4797
FAX: (818) 253-4799
EMAIL: support@swrsound.com
WEB: swrsound.com
© 2001 SWR SOUND CORPORATION

Advertisement

loading

  Also See for SWR LA 8

  Summary of Contents for SWR LA 8

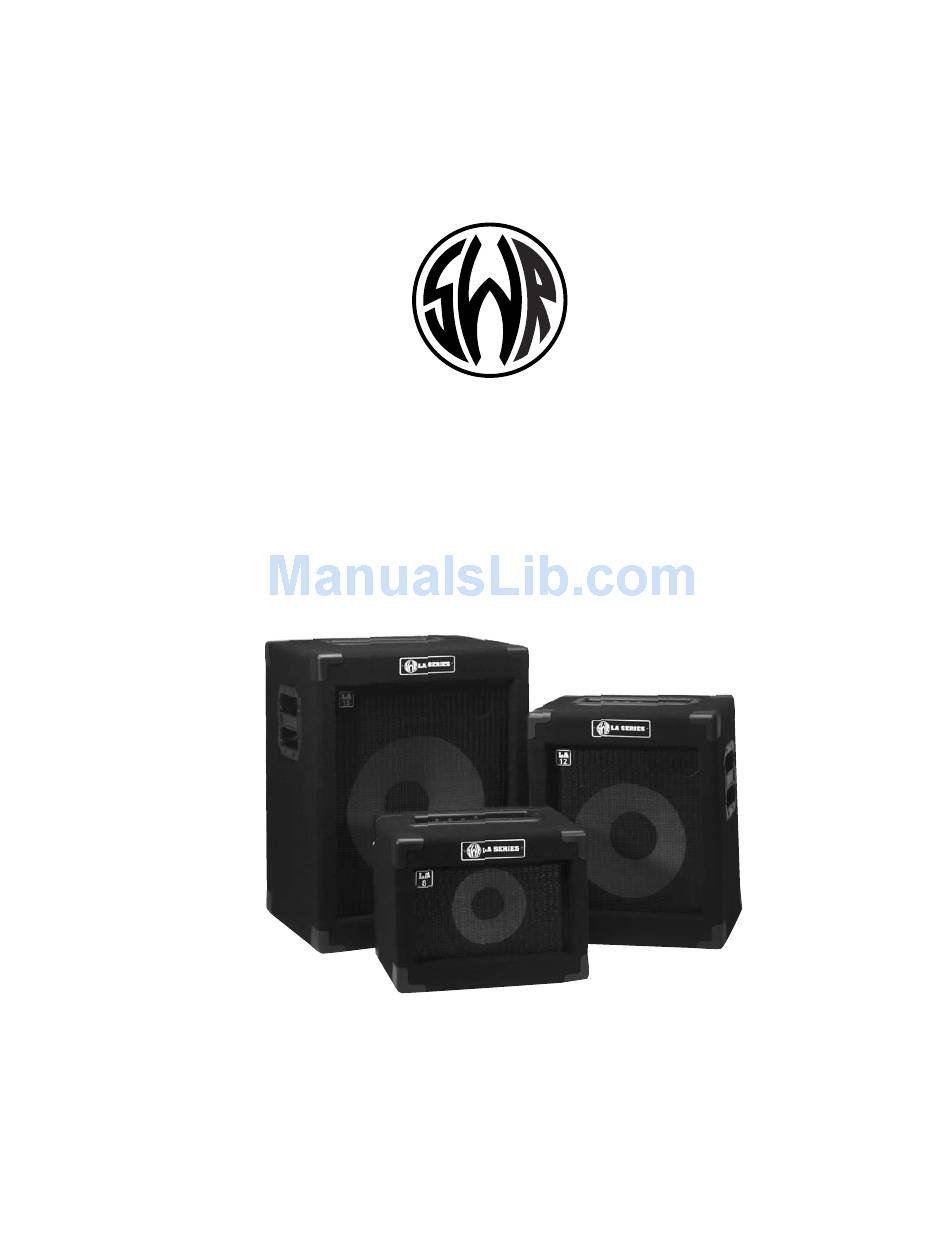

  • Page 1 LA SERIES USER GUIDE SWR SOUND CORPORATION 9130 Glenoaks Blvd. Sun Valley, CA 91352 USA PHONE: (818) 253-4797 FAX: (818) 253-4799 EMAIL: support@swrsound.com WEB: swrsound.com © 2001 SWR SOUND CORPORATION...
  • Page 2 SWR LA Series. All of the models—LA 8, LA 12 and LA 15—come with a basic SWR preamp designed by company founder Steve Rabe, easy-to-use tone controls, a tuner out jack, a headphone jack that automati- cally defeats the speaker system, and a “mix in”...
  • Page 3 = 20 lbs. LA 12 = 36 lbs. LA 15 = 50 Lbs. Dimensions LA 8 = 11"H x 14"W x 11"D LA 12 = 18"H x 15"W x 13"D LA 15 = 23"H x 18"W x 16"D Power Output...
  • Page 4: Getting Started

    Speaker Impedance (all models) 8 ohms Line Fuse Ratings 120 Volt Models: LA 8 & LA 12 = 2 amp slo-blo LA 15 = 3 amp slo-blo 230 Volt Models: LA 8 & LA 12 = 1 amp slo-blo LA 15 = 1 _ amp slo-blo GETTING STARTED Remove the A/C cable from the accessory pack and connect it from the amp’s A/C RECEPTACLE...
  • Page 5 Tone Controls The preamp and tone control circuit in all SWR LA Series amps is the same basic circuit featured in our acclaimed Professional and Workingman’s lines. We’ve condensed many of our “Pro” features into the circuit…...
  • Page 6: Rear Panel Features

    The VOLUME control serves as the control for volume of the headphones as well. We suggest you begin with the VOLUME control off (fully counter-clockwise), then slowly bring the volume up to your desired level. If you hear some distortion in your headphones, turn down the VOLUME control. You’re probably overdriving your headphones and could ruin them through continued use in this fashion (not to mention damage your ears in the process).
  • Page 7 In the case where the unit must be shipped, pack your unit carefully (using original packaging whenever possible), and include a copy of your bill of sale. Ship the unit PREPAID to the SWR Authorized Service Center of your choice.

This manual is also suitable for:

La 12La 15
