sigma
170
Cashmaster Sigma 170
User Manual
www.cashmaster.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sigma 170 and is the answer not in the manual?

Questions and answers

Related Manuals for Cashmaster Sigma 170

Summary of Contents for Cashmaster Sigma 170

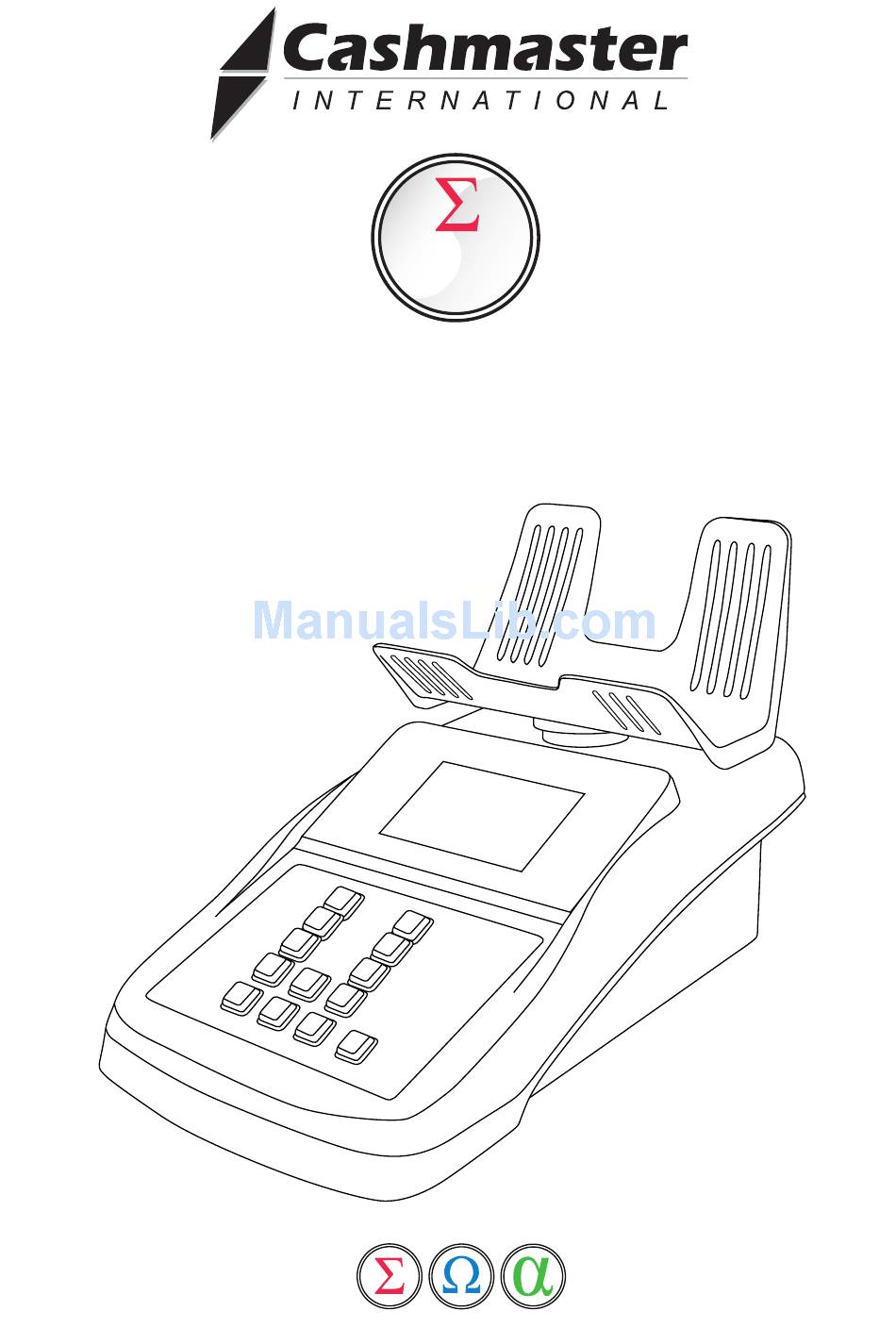

  • Page 1 Cashmaster Sigma 170 User Manual www.cashmaster.com...
  • Page 2 Thank you for choosing the Cashmaster Sigma 170 money counter. The Sigma 170 is an invaluable, easy to use, and highly accurate money counting device. The Sigma 170 is designed to manage your cash intelligently, with accuracy and efficiency. With the Sigma 170 you will speed up cash counting and reconciliation up to six times faster than by hand.

  • Page 3: Table Of Contents

    Cashmaster International. We reserve the right to make changes to this document and to the product described herein without obligation to notify any persons of such changes.

  • Page 4: Introduction

    The Cashmaster Sigma 170 supports your domestic currency: bills and coins. The intuitive user friendly interface guides you through the cash counting process. The Cashmaster Sigma 170 is programmed to count the contents of a typical cash register: ·...

  • Page 5: Box Items And Guidelines

    Do not spill any liquids on device. If liquid is spilled on device, disconnect the power cable and contact your supplier. Do not leave any objects on the Cashmaster or tray when not in use. Charging Charging takes approximately 3 hours.

  • Page 6: Guidelines

    Unpack your Cashmaster machine and check that you have a Cashmaster scale, a tray and a power adapter. Fit the tray into the top of the Cashmaster scale. Push down very firmly until it “clicks” into place. (To remove the tray, hold Cashmaster machine firmly and twist the tray until it “clicks”, then lift the tray from the base)

  • Page 7: Keys And Display

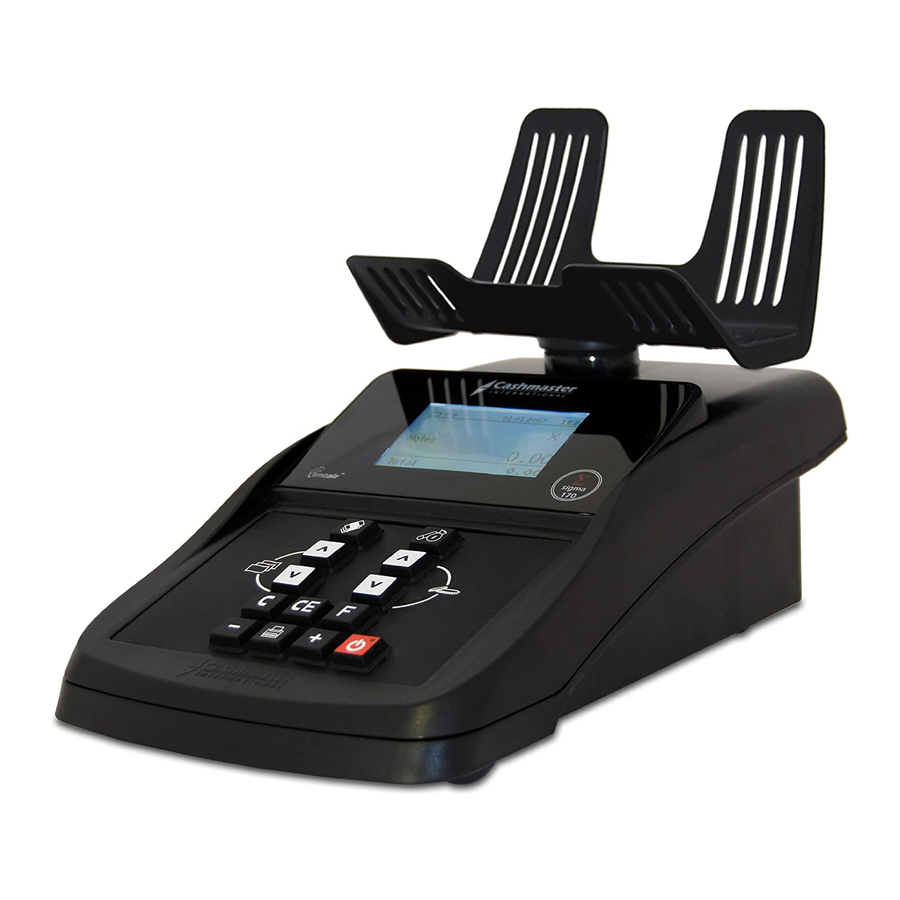

    Keys and Display Cashmaster Sigma 170 Tray Screen Keypad The Cashmaster Sigma 170 shown above is the device you are going to use. There are three main component parts: · the keypad · the screen · the tray The Cashmaster is robust, and will stand up to all normal Cash Office activities. Treat it with sensible care.
  • Page 8 Coins Total The Tray The tray is designed to hold scoops, cups, rolled coins, loose bills and banded bills. To insert, place the tray on the Cashmaster and push down very frmly, until your hear a “click”. 10244A page 6...

  • Page 9: Cashmaster Key Identification

    Fast Keys Fast key functions are controls that allow you to quickly access settings within the Cashmaster. More information is available on further pages. To perform the fast key functions press keys simultaneously. Auto Add...

  • Page 10: Getting Started

    Getting Started What you can count BILLS Loose - for counting loose bills. Loose bills are counted by placing up to 30 bills at any one time. Continue to add bills of the same denomination in quantities of up to 30, until all bills from the selected denomination have been counted.

  • Page 11: Switching On

    Getting Started Switching On Press When the Cashmaster is initially switched on, the display will show the following “Place Empty Scoop On Scale”. You must now place the scoop provided on top of the tray. This container is now ready to use with the machine.

  • Page 12: Setting The Time And Date

    Getting Started Setting the time and date The clock facility on the Cashmaster must be set as follows when you receive the machine. From count screen: Press and hold the key and press the coin key. Set Time Use the coin...

  • Page 13: Setting Bank Mode

    Bank mode is a feature that enables the user to set and activate the bank amount prior to counting. When bank mode is enabled the Cashmaster will take into account the bank amount previously entered and adjust the count accordingly.

  • Page 14: Auto Add And Auto Scroll

    Getting Started Switching Auto-Add on/off Auto Add is a feature that allows the Cashmaster to automatically add the value of any bill/coin amount (that is placed on the tray) to the total amount. If Auto-Add is on, the value displayed will automatically be added to the totals whenever the cash is placed on the tray.

  • Page 15: Switching Auto Scroll On/Off

    Switching Auto Scroll On/Off Auto Scroll feature allows the Cashmaster to automatically advance to the next denomination. This will occur after the value has been registered with the Cashmaster and the money has been removed from the tray. If Auto-Scroll is on, once cash is removed from the tray the denomination will automatically be advanced.

  • Page 16: Counting

    Place the scoop/cup of the selected coins on the tray; the Cashmaster will “beep” and the display will show the value of the coin and the number of coins in the scoop/cup: 19.01.2009...
  • Page 17 10.15 Rolls Total Place a roll of coins on the tray. If the roll is full the Cashmaster recognizes the weight. The denomination, together with the value, is shown on the display. For typical Roll quantities see page 23. For certain denominations of rolls the display will show:...
  • Page 18 All Cashmaster machines are calibrated at the factory to the average bill weights of the enabled currency. As bill weights vary slightly depending on age and usage, the following should be completed on receipt of your new machine.
  • Page 19 Counting Counting Loose Bills Press the bill key until the following is displayed. 19.01.2009 10.15 Bills Total Use the bill keys to select the correct denomination for counting. Place bills of the selected denomination on the tray. Bills should be applied in slices of up to 30 bills at a time.
  • Page 20 If the denomination is not the one you want, press bill until you reach the correct one. Place the strapped bills on the tray. The Cashmaster accepts bundles of $1, $2, $5, $10, $20, $50, and $100. If the strapped bills are good, its value is displayed: 19.01.2009...

  • Page 21: Totalling, Clearing And Print

    Totalling, Clearing & Printing Adding To add a value, currently on the display to the total, press the key. Auto Adding/Scrolling For Auto Adding and Auto Scrolling see page 12 and 13. Subtracting To subtract the last value added to the total, press the key while the value is still being displayed and the money is still on the machine.

  • Page 22: Grams/Calculator Mode

    The display will show : 0.0g Grams Mode If the Cashmaster drifts from 0.0g when the tray is empty, press to reset scale to zero. To exit Grams Mode and return to normal operation : Press at the same time.

  • Page 23: Coins

    Description Coins Too much There is too much weight on the scale, simply Loose/ weight on remove some. The Cashmaster will weigh up to Rolled scale a maximum of 1.5kg. Roll applied is suspect. User may leave roll on Roll...

  • Page 24: Faq's

    FAQ’s How do I clear sub totals? Select the desired denomination and press key once. How do I clear grand totals for one register? From the count screen hold down the key until the confirmation is displayed. Press the key again to confirm and clear. How do I clear grand totals for all registers? From the main screen hold down the key until the confirmation is...
  • Page 25 FAQ’s The SUSPECT ROLL message displayed Roll applied has a suspect weight – select the correct denomination by using the arrow keys. What is the maximum weight the machine can weigh? 1.5kg. What do I do if my printer does not work? Ensure printer is connected to machine Ensure printer has power Ensure printer is loaded with paper...

  • Page 26: Technical Specification

    Technical Specification Cashmaster Sigma 170 Specification Weight 1.2kg Dimension 162mm (W) x 188mm (H) x 282mm (D) Load Capacity 1.5kg Power Supply Mains adapter 12V 2.5A Power Indication LED red: Powered from mains, battery charging LED Green: Powered from mains, battery fully charged...

  • Page 27: Declaration Of Conformity

    Declaration of Conformity EC Declaration of Conformity Cashmaster Sigma models manufactured in Scotland, Rosyth are in conformity with the provisions of the following European Directives: 89/336 and 93/68/EEC Electromagnetic Compatibility Directive 73/23 and 93/68 /EEC Low Voltage Directive FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 28 Contact Details Cashmaster Turkey Head Office (UK) Istanbul HERTEL Innovation Buildings Bagdat Caddesi Burc Sitesi Fairykirk Road No:123 / 7 Rosyth, Fife Feneryolu KY11 2QQ ISTANBUL 34724 SCOTLAND t. +90 216 348 6555 t: +44 (0) 1383 416 098 t. +90 533 566 5707 f: +44 (0) 1383 414 731 f.
  • Page 29 Notes 10244A...
  • Page 30 Notes 10244A...
  • Page 31 Notes 10244A...
  • Page 32 www.cashmaster.com...
