Cashmaster Sigma 105
User Manual
www.cashmaster.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sigma 105 and is the answer not in the manual?

Questions and answers

Related Manuals for Cashmaster Sigma 105

Summary of Contents for Cashmaster Sigma 105

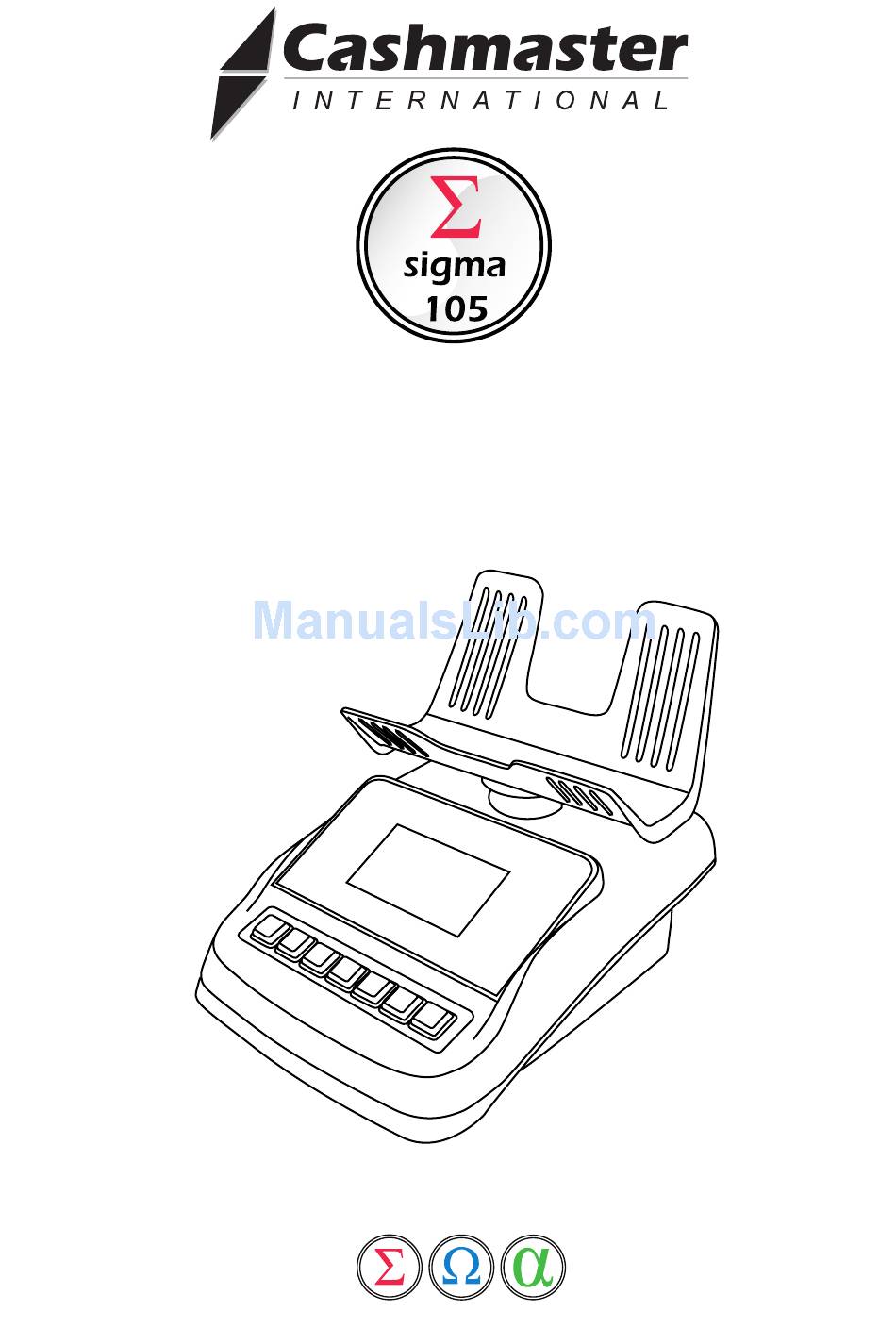

  • Page 1 Cashmaster Sigma 105 User Manual www.cashmaster.com...
  • Page 2 User Manual Thank you for choosing the Cashmaster Sigma 105 money counter. The Sigma 105 is an invaluable, easy to use, and highly accurate money counting device. The Sigma 105 is designed to manage your cash intelligently, with accuracy and efficiency. With the Sigma 105 you will speed up cash counting and reconciliation up to six times faster than by hand.

  • Page 3: Table Of Contents

    Cashmaster International. We reserve the right to make changes to this document and to the product described herein without obligation to notify any persons of such changes.

  • Page 4: Introduction

    The Cashmaster Sigma 105 supports your domestic currency: bills and coins. The intuitive user friendly interface guides you through the cash counting process. The Cashmaster Sigma 105 is programmed to count the contents of a typical cash register: ·...

  • Page 5: Box Items And Guidelines

    Do not spill any liquids on device. If liquid is spilled on device, disconnect the power cable and contact your supplier. Do not leave any objects on the Cashmaster or tray when not in use. Charging Charging takes approximately 3 hours.

  • Page 6: Guidelines

    Unpack your Cashmaster machine and check that you have a Cashmaster scale, a tray and a power adapter. Fit the tray into the top of the Cashmaster scale. Push down very firmly until it “clicks” into place. (To remove the tray, hold Cashmaster machine firmly and twist the tray until it “clicks”, then lift the tray from the base)

  • Page 7: Keys And Display

    Keys and Display Cashmaster Sigma 105 Tray Screen Keypad The Cashmaster Sigma 105 shown above is the device you are going to use. There are three main component parts: · the keypad · the screen · the tray The Cashmaster is robust, and will stand up to all normal Cash Office activities.
  • Page 8 Coins Total The Tray The tray is designed to hold scoops, cups, rolled coins, loose bills and banded bills. To insert, place the tray on the Cashmaster and push down very frmly, until your hear a “click”. 10228A page 6...

  • Page 9: Cashmaster Key Identification

    Fast Keys Fast key functions are easy access controls that allow you to quickly enter settings within the Cashmaster. More information is available on further pages. To perform the fast key functions press both keys simultaneously. Set Bank Limit...

  • Page 10: Getting Started

    Getting Started What You Can Count BILLS Loose - for counting loose bills. Loose bills are counted by placing up to 30 bills at any one time. Continue to add bills of the same denomination in quantities of up to 30, until all bills from the selected denomination have been counted.

  • Page 11: Switching On

    Getting Started Switching On Press When the Cashmaster is initially switched on, the display will show the following “Place Empty Scoop On Scale”. You must now place the scoop provided on top of the tray. This container is now ready to use with the machine. (Please note the scoop must only be used for counting coins).

  • Page 12: Setting Bank Mode

    Bank mode is a feature that enables the user to set and activate the bank amount prior to counting. When bank mode is enabled the Cashmaster will take into account the bank amount previously entered and adjust the count accordingly.

  • Page 13: Auto Add And Auto Scroll

    Getting Started Switching Auto-Add On/Off Auto Add is a feature which allows the Cashmaster to automatically add the value of any bill/coin amount (which is placed on the tray) to the total amount. If Auto-Add is on, the value displayed will be automatically added to the totals whenever the cash is placed on the tray.

  • Page 14: Switching Auto Scroll On/Off

    Getting Started Switching Auto Scroll On/Off Auto Scroll feature allows the Cashmaster to automatically advance to the next denomination. This will occur after the value has been registered with the Cashmaster and the money has been removed from the tray.

  • Page 15: Coins

    Use the keys to select the correct denomination for counting. Place the scoop/cup of the selected coins on the tray; the Cashmaster will “beep” and the display will show the value of the coin and the number of coins in the scoop/cup : If Auto Add is on, The Cashmaster will automatically update the totals, and “beep”...
  • Page 16 10.15 Rolls Total Place a roll of coins on the tray. If the roll is full the Cashmaster recognizes the weight. The denomination, together with the value, is shown on the display. For typical Roll quantities see page 21. For certain denominations of rolls the display will show:...

  • Page 17: Learning

    Press the key to select bill mode. All Cashmaster machines are calibrated at the factory to the average bill weights of the enabled currency. As bill weights vary slightly depending on age and usage, the following should be completed on receipt of your new machine.

  • Page 18: Bills

    Counting Counting Loose Bills Please ensure your Cashmaster is set to your domestic currency before continuing. Press the key until the following is displayed. 19.01.2009 10.15 Bills Total Use the keys to select the correct denomination for counting. Place bills of the selected denomination on the tray.

  • Page 19: Totalling, Clearing, And Printing

    Totalling, Clearing & Printing Adding To add a value, currently on the display to the total, press the key. Auto Adding/Scrolling For Auto Adding and Auto Scrolling see page 11 and 12. Clearing the Sub-Totals Select the denomination to be cleared by using keys then press the key momentarily.

  • Page 20: Grams Mode

    The display will show : 0.0g Grams Mode If the Cashmaster drifts from 0.0g when the tray is empty, press to reset scale to zero. To exit Grams Mode and return to normal operation : Again press the keys simultaneously.

  • Page 21: Troubleshooting

    Simply remove a few bills until the counting Remove some message disappears then continue counting. Misc Check that the Cashmaster is placed on a level High vibration surface and away from vibrations and drafts lockout (e.g. air conditioning or fan).

  • Page 22: Faq's

    FAQ’s How do I clear sub totals? Select the desired denomination and press key momentarily. How do I clear grand total? From the count screen hold down the key until the confirmation is displayed. Press the key again to confirm and clear. How do I access/leave Grams Mode? Press simultaneously the key and the...
  • Page 23 FAQ’s The SUSPECT ROLL message displayed Roll applied has a suspect weight – select the correct denomination by using the arrow keys. What is the maximum weight the machine can weigh? 1.5kg. What do I do if my printer does not work? Ensure printer is connected to machine Ensure printer has power Ensure printer is loaded with correct paper...

  • Page 24: Technical Specification

    Technical Specification Cashmaster Sigma 105 Specification Weight 1kg Dimension 162mm (W) x 172mm (H) x 224mm (D) Load Capacity 1.5kg Power Supply Mains adapter 12V 2.5A LED red: Battery charging LED Green: Battery fully charged LED flashing red/green: Very low battery and charging LED off: Power from battery only Battery Type LiPo 7.4V 1250mAh...

  • Page 25: Declaration Of Conformity

    Declaration of Conformity EC Declaration of Conformity Cashmaster Sigma models manufactured in Scotland, Rosyth are in conformity with the provisions of the following European Directives: 89/336 and 93/68/EEC Electromagnetic Compatibility Directive 73/23 and 93/68 /EEC Low Voltage Directive FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 26 Notes 10228A...
  • Page 27 Contact Details Cashmaster Turkey Head Office (UK) Istanbul HERTEL Innovation Buildings Bagdat Caddesi Burc Sitesi Fairykirk Road No:123 / 7 Rosyth, Fife Feneryolu KY11 2QQ ISTANBUL 34724 SCOTLAND t. +90 216 348 6555 t: +44 (0) 1383 416 098 t. +90 533 566 5707 f: +44 (0) 1383 414 731 f.
  • Page 28 Notes 10228A...
  • Page 29 Notes 10228A...
  • Page 30 Notes 10228A...
  • Page 31 Notes 10228A...
  • Page 32 www.cashmaster.com...
