  • Page 1 User Manual...

  • Page 2: Table Of Contents

    CONTENTS Introduction…………………………………………………. Box items and guidelines..........Maintenance……………………………………..…. Charging.……………………………………………. Warning……………….…………………………….. Unpacking…………………………………………………... Keys and display.............. Cashmaster Sigma 170......... The keypad..…………………………….……. The screen.....………………….……………... The tray………………………………………..……. Key identification...………...……..……..………………. Fast key setting functions.……………………………..Getting started..............What you can count………………………………... Switching on………………………………………... Setting date and time……………………………..
  • Page 3 Cashmaster International. We reserve the right to make changes to this document and to the product described herein without obligation to notify any persons of such...

  • Page 4: Box Items And Guidelines

    Do not spill any liquids on device. If liquid is spilled on device, disconnect the power cable and contact your supplier. Do not leave any objects on the Cashmaster or tray when not in use. Charging Charging takes approximately 3 hours.
  • Page 5 Unpack your Cashmaster machine and check that you have a Cashmaster scale, a tray, a scoop and a power adapter. Fit the tray into the top of the Cashmaster scale. Push down very firmly until it clicks into place. (To remove the tray, hold the Cashmaster machine firmly and twist the tray until it clicks, then lift the tray from the base).

  • Page 6: Cashmaster Sigma 170

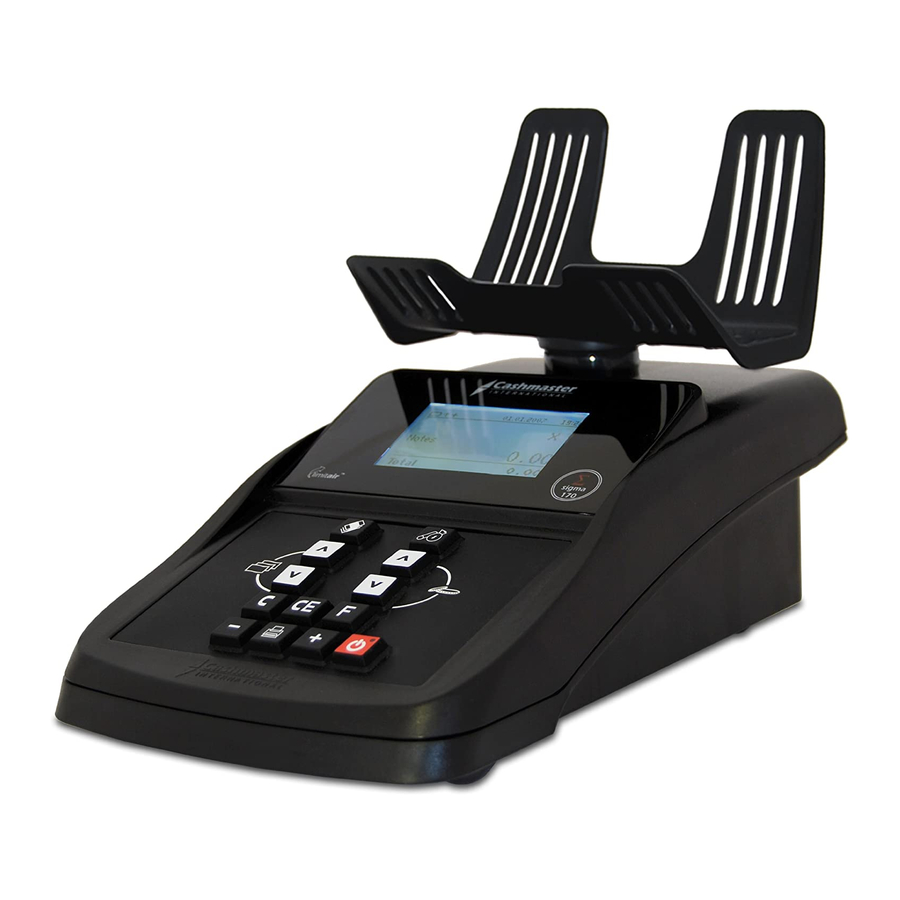

    KEYS AND DISPLAY Cashmaster Sigma 170 Tray Screen Scoop Keypad The Cashmaster Sigma 170 shown above is the device you are going to use. There are four main component parts: · the keypad · the screen · the tray · the scoop The Cashmaster is robust, and will stand up to all normal cash office activities.

  • Page 7: The Tray

    - messages related to Cashmaster functions 0.00 Total 0.00 The tray The tray is designed to hold scoops, cups, rolled coins, loose bills and strapped bills. Place the tray on the Cashmaster and push down very firmly, until it is clicked in.

  • Page 8: Key Identification

    KEY IDENTIFICATION key. Press once to switch machine on. Press and hold down to ON/OFF switch machine off. key. Press to select strapped bills and to toggle between STRAPPED BILLS loose/bundled/clipped bills. key. Press to select rolled coins. ROLLED COINS arrow keys.

  • Page 9: Fast Key Setting Functions

    FAST KEY SETTING FUNCTIONS Fast key functions are controls that allow you to quickly access settings within the Cashmaster. To perform the fast key functions press both keys simultaneously. Bank value setting Press the “F” and the “Bill Up” keys.

  • Page 10: Getting Started

    GETTING STARTED What you can count Bills - Loose bills are counted by placing a slice of up to 30 bills at Loose any one time. Continue to add bills of the same denomination, until all bills from the selected denomination have been counted. - counting strapped bills that have been packaged in a Bundle bundle.

  • Page 11: Switching On

    (Please note the scoop/cup must only be used for counting coins). Place Empty Scoop On Scale Setting date and time The clock facility on the Sigma 170 must be set as follows when you receive the machine. From count screen: Press the key and press the coin key.

  • Page 12: Setting The Bank

    GETTING STARTED Setting the bank This function allows you to set the bank value on the Cashmaster. (This can be changed at any time). Press the and the bill keys to enter bank setting. Use the arrow keys to select bank. Use the key to switch on/off.

  • Page 13: Switching Auto-Add On/Off

    GETTING STARTED Switching auto-add on/off Auto-add is a feature that allows the Cashmaster to automatically add the value of any bill/coin values (that is placed on the tray) to the grand total. If auto-add is off, the value displayed will not be automatically added to the totals,...

  • Page 14: Switching Scroll On/Off

    GETTING STARTED Switching scroll on/off Auto-scroll feature allows the Cashmaster to automatically scroll up to the next denomination when the cash is removed from the tray. If auto-scroll is off, the denomination displayed will not automatically advance, you must manually select the next denomination required using the keys.

  • Page 15: Learning - Bills Only

    Press the bill key to select bill mode. All Cashmaster machines are calibrated at the factory to the average bill weights of all US currency. As bill weights vary slightly depending on age and usage, the following should be completed on receipt of your new machine.

  • Page 16: Counting Loose Coins

    Use the coin keys to select the correct denomination for counting. Place the scoop/cup of the selected coins on the tray; the Sigma 170 will beep and the display will show the value and the quantity of coins in the scoop/cup: 15.12.2008...
  • Page 17 11.10 19.01.2009 10.15 Rolls Total Place a roll of coins on the tray. If the roll is full, the Cashmaster will recognise the denomination, together with the value. For certain denominations of rolls the display will show: (2) Possible Results...

  • Page 18: Counting Loose Bills

    COUNTING Counting loose bills Press the bill key until the following is displayed. 15.12.2008 11.53 08.02.2016 11.10 £5 Bills Notes 0.00 0.00 Total Use the bill keys to select the correct denomination for counting. Place bills of the selected denomination on the tray. 15.12.2008 11.53 08.02.2016 11.10...

  • Page 19: Counting Strapped Bills

    Use the bill keys to select the correct denomination for counting. Place the strapped of bills on the tray. The Cashmaster accepts bundles of $1, $2, $5, $10, $20, $50 and $100. If the packaged bills are “good”, its value is displayed.

  • Page 20: Troubleshooting

    Coins This means there is too much weight on scale, simply Loose/ Too much weight remove some. The Cashmaster will weigh up to a rolled on scale maximum of 1.5kg. Roll applied is suspect. You may leave roll on tray...
  • Page 21 How do I clear sub-totals? Select the desired denomination and press key once. How do I clear grand totals for one register? From the count screen hold down the key until the confirmation is displayed. Press the key again to confirm and clear. How do I switch currencies? Press both keys simultaneously to scroll through multicurrency options,...

  • Page 22: Technical Specification

    TECHNICAL SPECIFICATIONS Weight 1.2kg Dimension 162mm (W) x 188mm (H) x 282mm (D) Load capacity 1.5kg Power supply Mains adapter 12V 2.5A Power indication LED red: Powered from mains, battery charging LED green: Powered from mains, battery fully charged Powered from mains, trickle charge or faulty LED flashing red/green: battery LED off: Power from battery only...
  • Page 23 GLOBAL SUPPORT North America t: +1 877 227 4627 e: enquiriesusa@cashmaster.com Germany t: +49 (0) 2463 999 339 e: germany@cashmaster.com Hong Kong and Asia t: +852 2157 9363 e: enquiriesasia@cashmaster.com UK and all other customers t: +44 (0) 1383 410 121 e: support@cashmaster.com...
