Fixed Type 2D Code Scanner
QK11-U
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for Denso QK11-U

Summary of Contents for Denso QK11-U

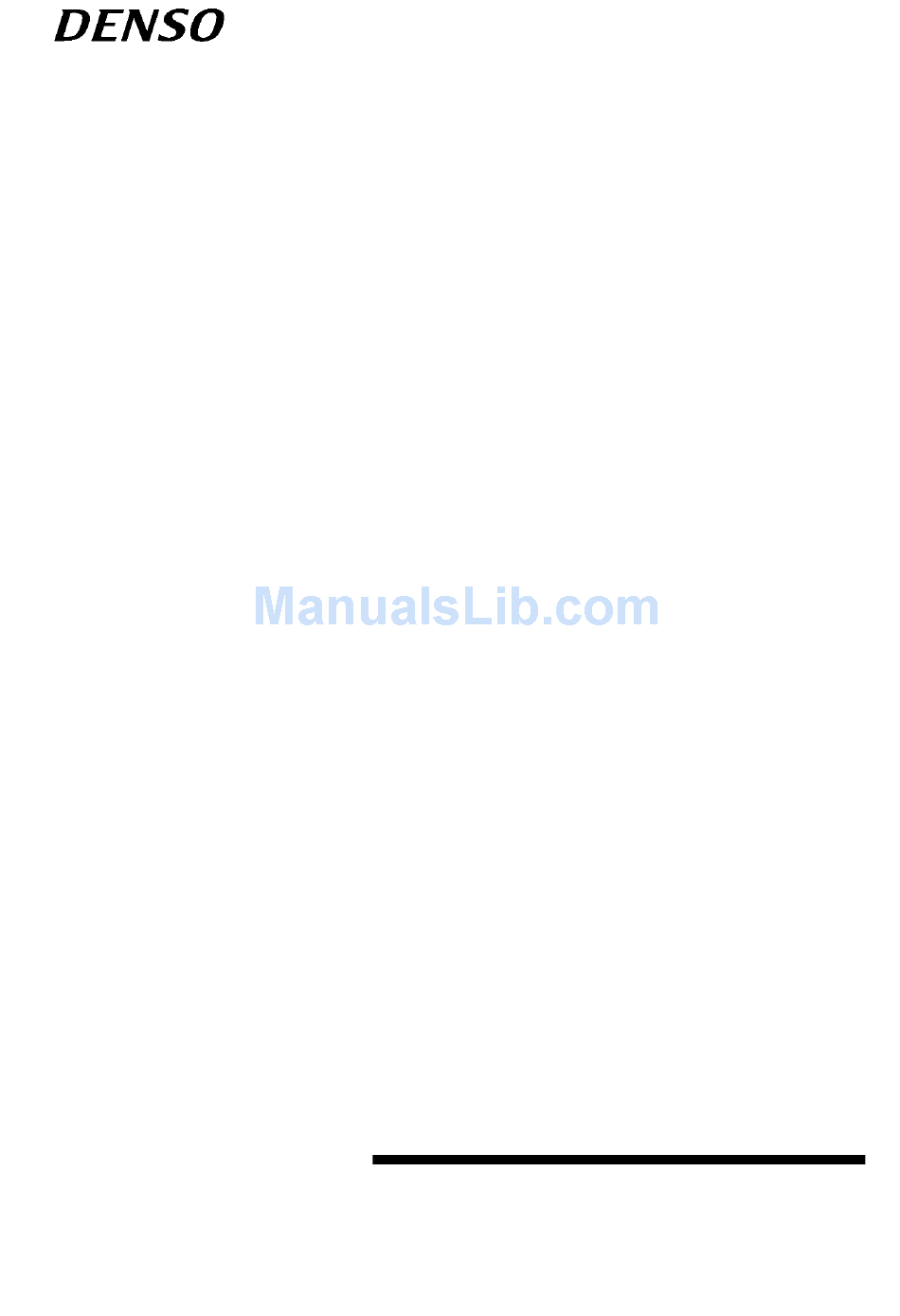

  • Page 1 Fixed Type 2D Code Scanner QK11-U User's Manual...
  • Page 2 Copyright © DENSO WAVE INCORPORATED, 2003 All rights reserved. No part of this publication may be reproduced in any form or by any means without permission in writing from the publisher. Specifications are subject to change without prior notice. All products and company names mentioned are trademarks or registered trademarks of...
  • Page 3 US and Canada Regulations This device complies with Part 15 of the FCC Rules, Canadian ICES-003 Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 5 SAFETY PRECAUTIONS Be sure to observe all these safety precautions. Please READ through this manual carefully. It will enable you to use the QK11-U correctly. Always keep this manual nearby for speedy reference. Strict observance of these warning and caution indications are a MUST for preventing accidents which could result in bodily injury and substantial property damage.
  • Page 6 It could cause a fire or electric shock if continuing to use in such a case. If you drop the QK11-U on the ground, cause it unable to use or its housing to be damaged during use. Please pull out connector of the QK11-U from computer etc.
  • Page 7 WARNING If the power cable of the QK11-U is damaged (exposed or broken lead wires etc.), please contact dealer to solve. It could cause a fire or electric shock if continuing to use in such a case. Do not subject the scanning window of the QK11-U to direct sunlight for extended periods.
  • Page 8 Doing so could damage the QK11-U or its interface cable, creating a fire hazard. Do not put heavy material on the QK11-U or its interface cable, or allow the cable to get pressed under heavy material. Do not look into the light source from the scanning window of the QK11-U or do not point the scanning window at other people’s eyes.
  • Page 9 CAUTION If lightening occurs, immediately unplug the scanner. Continuing to use could cause electric shock. Before cleaning, be sure to unplug the scanner. Cleaning with power cord plugged in could cause electric shock. If the interface cable is damaged (e.g., exposed or broken lead wires), stop using it and contact your nearest dealer.
  • Page 10 Proper Care of the QK11-U When cleaning, always unplug the connector for safety. Dust or dirt on scanning window will affect the reading of codes: Clean the window before using the scanner. For cleaning, first use air brush, etc. to blow off dust, and then lightly wipe dirt off using dry, soft cloth (eyeglasses cleaning cloth, etc.).

  • Page 11: Table Of Contents

    Content Overviews SAFETY PRECAUTIONS ....................i Chapter 1. How to Use ....................1 Chapter 2. How to read....................14 Chapter 3 Communications ..................15 Chapter 4 Parameters and Defaults................21 Chapter 5 QR-coded Parameter Menu .................23 Menu control ......................24 Transmission format....................25 Setting 2D code reading ..................28 Setting barcode reading..................29 Appendix.

  • Page 13: Chapter 1. How To Use

    Chapter 1. How to Use OK LED Lights when reading is successful. Scanning window POWER LED Lights when power is turned on. Beeper outlet...
  • Page 14 If the DENSO WAVE USB-COM driver has not yet been installed, do not connect QK11-U to USB port of PC when turning PC on: Since installation of USB driver starts during startup of Windows, the installation will not proceed properly.
  • Page 15 ® - If the driver for Windows 2000/XP has been installed in Windows 98SE/Me PC: (1) Open Device Manager and delete DENSO WAVE USB-COM Port with attached. (2) If these files are in the following folders, delete them: C:\Windows\Inf\Other\ DENSO WAVEdwcom.inf C:\Windows\Inf\ Dwcom.inf,Dwcom.pnf,...
  • Page 16 (1) The power supply of a personal computer is turned on, and Windows 98SE is started. (2) Double-click the compressed file for self-extraction. Connect QK11-U to your PC directly, then a new hardware "USB Device QK11-U" is found. "Add New Hardware Wizard" starts, then click "Next".
  • Page 17 “Next”. (The left figure shows that the driver is stored in D:\DRIVER\WIN9X.) (7) "DENSO WAVE USB-COM Port" is f o u n d a s " Th e u p d a t e d d i v e r (Recommended)", then click "Next".
  • Page 18 (1) The power supply of a personal computer is turned on, and Windows Me is started. (2) Double-click the compressed file for self-extraction. (3) Connect QK11-U to your PC directly, then a new hardware "USB Device QK11-U" is found. "Add New Hardware Wizard" starts, then check the box of "Specify the location of the driver [Advanced]"...
  • Page 19 (8) The check of connection is performed on the screen of "Device Manager". If "DENSO WAVE USB-COM Port" is added to the item of "Port (COM & LPT)", it connects normally. When the item is not added or become "...
  • Page 20 (1) The power supply of a personal computer is turned on, and Windows 2000 is started. Perform logon only from user with Administrator authority. (2) Double-click the compressed file for self-extraction. Connect QK11-U to your PC directly, then a new hardware "USB Device QK11-U" is found. (4) "Found New Hardware Wizard" starts, then click "Next".
  • Page 21 2000/XP is stored, and then click “OK”. (The left figure shows that the driver is stored in D: \DRIVER\WIN2K.) (8) If "DENSO WAVE USB-COM Port" is found, then click "Next". (The left figure shows that DWCOM.INF is stored in D: \DRIVER\WIN2K.) (9) If the caution about "Digital Signature...
  • Page 22 (11) The check of connection is performed on the screen of "Device Manager". If "DENSO WAVE USB-COM Port" is added to the item of "Port (COM & LPT)", it connects normally. When the item is not added or become " " and " ", please remove this driver with the uninstaller.
  • Page 23 (1) The power supply of a personal computer is turned on, and Windows XP is started. Perform logon only from user with Administrator authority. (2) Double-click the compressed file for self-extraction. Connect QK11-U to your PC directly, then a new hardware "USB Device QK11-U" is found. (4) "Found New Hardware Wizard" starts, then check the box of "Install from a list...
  • Page 24 Then all of install process is over. (9) The check of connection is performed on the screen of "Device Manager". If "DENSO WAVE USB-COM Port" is added to the item of "Port (COM & LPT)", it connects normally. When the item is not added or become...
  • Page 25 Setting initial conditions Although the communication conditions and specifications of codes to be read have been set at the factory, they can be modified using the QR-coded parameter menu. Notes: (1) Check “4. Parameters and Defaults” and “5. QR-coded parameter menu” for details on QR-coded parameter menu.

  • Page 26: Chapter 2. How To Read

    Chapter 2. How to read Scanning Codes Turn power on: The QK11-U will be ready for scanning. In this status, bring the LCD of a mobile phone near the scanning window as shown in the figure below. The QK11-U will read codes, output the data, sound buzzer and cause the OK LED to light.

  • Page 27: Chapter 3 Communications

    In case of Windows 98 SE or Windows Me as operation system, COM port can not be fixed due to it is distributed automatically by the operation system. So when connecting QK11-U for the first time or having connected it, perform the following operation, COM port could be changed after restarting the computer. If performing...
  • Page 28 Data Transfer Transmission format Header Code ID mark No. of digits Data read Terminator (1) Header You may select either "No header" or STX. (2) Terminator You may select ETX, CR, LF, or CR LF. (3) BCC The data following the header, and up to the terminator, are exclusive OR; these data are transferred byte by byte in binary codes.
  • Page 29 3rd digit (0 to 9) n3: 2nd digit (0 to 9) n4: 1st digit (0 to 9) (6) Code data The QK11-U will transfer data read whose contents differ depending upon the code type as described below. QR Code All data read...
  • Page 30 CODE39 and Interleaved 2 of 5(ITF) Data read except for the start/stop codes CODABAR (NW-7) Data read, including/excluding start/stop codes CODE128 (EAN-128) Data read except for start/stop codes, FNC codes*, and check digit Note that FNC1 placed in any positions except the 1st and 2nd positions immediately following the start code will be converted into GS (1Dh) and then transmitted.
  • Page 31 Response Content Z (Note 1) None Standby for reading: When QK11-U receives “Z” command, it will stop reading and enter the reading standby status. R (Note 1) None Start of reading: When QK11-U receives “R” command, it will enter the reading enable status and start to read codes.
  • Page 32 Setting S command parameters You can specify the following parameters for S command: Codes to be read Format Micro QR code UPC-A/UPC-E/EAN-13/EAN-8 Interleaved 2 of 5 I (reading enabled without check digit) I:C (reading enabled with check digit) CODABAR N (reading enabled without check digit) N:C (reading enabled with check digit) CODE39 M (reading enabled without check digit)

  • Page 33: Chapter 4 Parameters And Defaults

    Chapter 4 Parameters and Defaults The table below lists the parameters and their default values. Note that the defaults given below are values preset when the QK11-U leaves the factory. Some of the communications parameters and readable bar code settings may have been modified by dealers according to your needs.
  • Page 34 Setting barcode UPC-A/E and EAN-13/8 Disabled reading Enabled Interleaved 2 of 5 Disabled Enabled (without check digits ) Enabled (with check digits) CODE128(EAN-128) Disabled Enabled CODABAR (NW-7) Disabled Enabled (without check digits) Enabled (with check digits) Transmission of starter/ Disabled stop codes for Enabled CODABAR (NW-7)

  • Page 35: Chapter 5 Qr-Coded Parameter Menu

    (4) Scan the "End setting" code in the menu control. This stores new settings in the memory and completes the parameter change procedure. The QK11-U will become ready to scan. If you turn off the power, those new settings will be retained.

  • Page 36: Menu Control

    Menu control "Start setting" "Cancel" "Defaults" "End setting"...

  • Page 37: Transmission Format

    Transmission format Header "None" (default) "STX"...
  • Page 38 Terminator "ETX" "CR" (default) "LF" "CRLF"...
  • Page 39 Transmission of code ID mark "Disabled" (default) "Enabled" Transmission of no. of digits "Disabled" (default) "Enabled"...

  • Page 40: Setting 2D Code Reading

    "Disabled" (default) "Enabled" Setting 2D code reading Reading MicroQR "Disabled" (default) "Enabled"...

  • Page 41: Setting Barcode Reading

    Setting barcode reading UPC-A/E and EAN-13/8 "Disabled" "Enabled" (default) Interleaved 2 of 5 "Enabled with check digits" "Enabled without "Disabled" check digits" (default)
  • Page 42 CODABAR (NW-7) "Enabled without "Disabled" check digits" (default) "Enabled with check digits" Transmission of start/stop codes for CODABAR (NW-7) "Disabled" "Enabled" (default)
  • Page 43 CODE39 "Enabled without "Disabled" check digits" (default) "Enabled with check digits" CODE128(EAN-128) "Disabled" "Enabled" (default)
  • Page 44 Beeper control "Disabled" "Enabled" (default) Reading confirmation LED "Disabled" "Enabled" (default)

  • Page 45: Appendix. Specifications

    Appendix. Specifications External dimensions 163 x 72 x 54 mm (cable:1.5m) Weight Approx. 370g Scanning performance Mobile Resolution 0.33mm min. phone for two-dimensional codes 0.26mm min. for bar codes Readable Model 1 and Model 2 of QR codes Code, MicroQR, UPC-A/E and EAN-13/8 Printing Resolution...
  • Page 47 DENSO WAVE; (ii) the use of DENSO WAVE’s products in a manner for which the same were not intended nor designed; or (iii) any modification of DENSO WAVE’s products by other(s) than DENSO WAVE.
  • Page 48 4-2-12, Toranomon, Minato-ku, Tokyo, Japan 105-0001 http://www.denso-wave.com 496817-0560...
