Great Outdoors Pinnacle TG475-2 Assembly And Owner's Manual

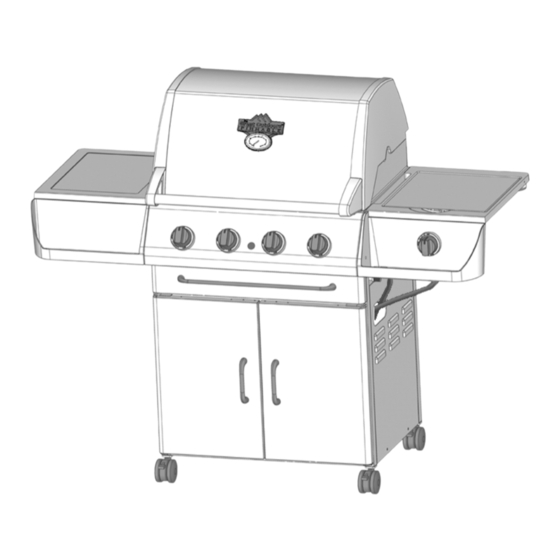

Portable gas grill
Hide thumbs
Table of Contents

Advertisement

Quick Links

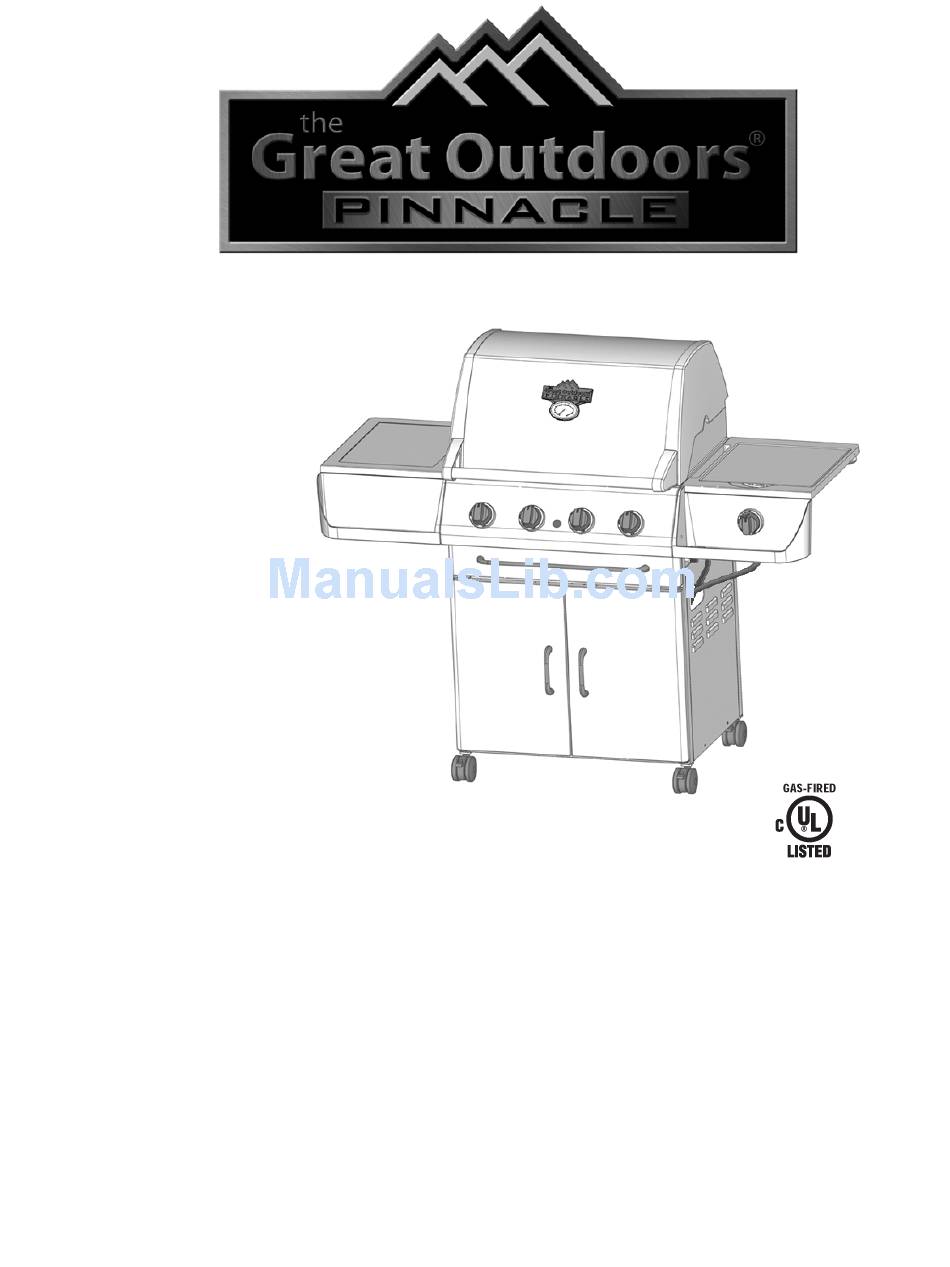

Assembly
and Owner's
Manual
TG475-2
Portable
Gas Grill
ASSEMBLER / INSTALLER:
Leave these instructions with the consumer.
CONSUMER / USER:
Read all of these instructions and keep them in a safe place for future reference.
FOR YOUR SAFETY:
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, immediately call
your gas supplier or fire department.
FOR YOUR SAFETY: Never leave a grill unattended when in use.
L.P. Gas Cylinder
Not Included
FOR YOUR SAFETY:
1. Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
2. An unconnected liquid propane cylin-
der should not be stored in the vicinity
of this or any other appliance.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pinnacle TG475-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Great Outdoors Pinnacle TG475-2

Summary of Contents for Great Outdoors Pinnacle TG475-2

  • Page 1 Assembly and Owner’s Manual TG475-2 Portable Gas Grill L.P. Gas Cylinder Not Included ASSEMBLER / INSTALLER: Leave these instructions with the consumer. CONSUMER / USER: Read all of these instructions and keep them in a safe place for future reference.
  • Page 2 Statement of Commitment Congratulations and thank you for your purchase of your new Great Outdoors grill. We are pleased that you have recognized the value of the design, function, and quality of components used in this product. We believe it is among the nest on the market.

  • Page 3: Table Of Contents

    Table of Contents Page Number Chapter 1 - INSTALLATION Necessary Information Choosing a Safe Location Portable L.P. Gas Grills L.P. Gas Dealer Instructions Chapter 2 - ASSEMBLY INSTRUCTIONS Step 1 (Identifying Parts) Replacement Parts Step 2 (Cabinet Assembly) Step 3 (Cabinet Assembly) Step 4 (Grill Head) Step 5 (Side Burner Valve) Step 6 (Side Tables)

  • Page 4: Chapter 1 - Installation

    Pinnacle Series Gas Grill Installation Chapter 1 Necessary Information to Installation must conform with local codes or, in the absence of local codes, with ei- Safely Use a Gas Grill ther the National Fuel Gas Code, ANSI Z223.1, NFPA 54 (USA), or CAN/CGA-B 149.2 Propane Installation Code (Canada) and CAN/CGA-B 149.1 Natural Gas Instal- lation Code.

  • Page 5: Portable L.p. Gas Grills

    10. Make sure that the drip pan is in place under the grill bottom. Hot drippings from cooking food could • damage the fuel supply system. IMPORTANT: NEVER leave a grill unat- tended when in use. Portable L.P. Gas Barbecue Grills WARNING: Do not use natural gas in an appliance designed for L.P.
  • Page 6 4. The pressure regulator and hose assem- bly provided is factory set at an outlet Side Burner pressure of 11 inches water column (.4 lb. Control Valve per sq. Inch). Multi-Burner Fuel- Control Valve WARNING: Any attempt to adjust the regu- Assembly lator is dangerous and could create a situa- tion causing personal injury or property dam-...
  • Page 7 The L.P. gas cylinder must have a shut-off After filling, have the gas dealer check for valve terminating in a Type 1 L.P. gas- leaks and that the relief valve remains free cylinder-valve outlet. A Type 1 compatible to function. cylinder with a Type 1 cylinder valve has a positive seating connection that does not Have the gas dealer weigh the cylinder after...

  • Page 8: Gas Dealer Instructions

    Take These Instructions to the L.P. Gas Dealer that will not permit gas to flow until an When using a cylinder exchange, be sure the evacuation device is installed. To purge the exchanged cylinder is a Type 1 cylinder: a L.P.

  • Page 9: Chapter 2 - Assembly Instructions

    Pinnacle Series Gas Grill Assembly Instructions Chapter 2 Getting Started 1. Please follow the steps in the order that they are presented. 2. Assemble the grill where you plan to use 3. You may want to place an old towel or cloth at the assembly site to prevent nuts and bolts from becoming lost.

  • Page 10: Step 1 (Identifying Parts)

    Assembly Step 1—Identifying the Grill Parts Note: Refer to the parts listing on page 11 Locate these parts: Not Pictured: 001 Master Hardware Pack...

  • Page 11: Replacement Parts

    Model TG475-2 Replacement Parts Replacement parts are available direct from our warehouse. Some components are not available preassembled and may be ordered separately. For convenience, the following parts list is provided along with a representation of the items listed. Charges for replacement parts and shipping may apply.

  • Page 12: Step 2 (Cabinet Assembly)

    Assembly Step 2—Cabinet Assembly LOCATE THESE PARTS USE HARDWARE ‘STEP 2’ Upper Door Brackets M3.5 x 10mm Rear M5 x 10mm Cabinet Front Frame Cabinet Frame Lower Door Bottom Brackets Cabinet Panel Upper Door Bracket 1. Fix the upper and lower door Lower Door brackets to the front cabinet Bracket...

  • Page 13: Step 3 (Cabinet Assembly)

    Assembly Step 3—Cabinet Assembly USE HARDWARE ‘STEP 3’ LOCATE THESE PARTS Left Right Cabinet Cabinet Side Panel Side Panel M5 x 10mm (16) 1. Position the cabinet side panels as shown. The panels must be inserted to the inside of the cabinet assembly. IMPORTANT: Note the orientation of the right cabinet side panel to the cabinet frame.

  • Page 14: Step 4 (Grill Head)

    Assembly Step 4—Install the Grill Head LOCATE THESE PARTS USE HARDWARE ‘STEP 4’ Grill Head Assembly M5 x 10mm (10) Burner Box Mounting Brackets Front Locking Castors Rear Rear Castors Castors Front Locking Castors Front 1. Position the cabinet frame upside down onto a firm surface Cabinet Frame and insert the castors.

  • Page 15: Step 5 (Side Burner Valve)

    Assembly Step 5—Assemble the Side Burner USE HARDWARE ‘STEP 5’ LOCATE THESE PARTS Right Side M5 x 12mm Burner Shelf No.6-32 UNC Side Burner M3.5 x 10mm Valve Self Tapper Bezel Right Side Table Bracket Right Side Knob Table Basket Align the bracket to the front edge...

  • Page 16: Step 6 (Side Tables)

    Assembly Step 6—Attach the Right Side Table 1. Locate the three pre-installed screws on USE HARDWARE ‘STEP 6’ the side of the grill head. Loosen, but do not remove them. M5 x 15mm Loosen 2. Line up the side table to the side of the grill head.

  • Page 17: Step 7 (Side Tables)

    Assembly Step 7 - Attach the Left Side Table USE HARDWARE ‘STEP 7’ LOCATE THESE PARTS Left Side Shelf M5 x 30mm M5 x 12mm Left Side Shelf Bracket 1. Attach the side table bracket as shown using M5 x 10 screws. Ensure Front that the front edges of the bracket and Basket...

  • Page 18: Step 8 (Cooking Grids)

    Assembly Step 8—Install the Cooking Grids LOCATE THESE PARTS Warming Rack Cooking Grids (x2) Heating Shields (x4) 1. Insert the heat shields into the grill tub. Each heat shield must be placed above a burner, resting on the brackets in the front and rear of the grill tub.

  • Page 19: Step 9 (Cabinet Doors)

    Assembly Step 9—Install the Cabinet Doors USE HARDWARE ‘STEP 9’ LOCATE THESE PARTS Warming M4 x 8mm Drawer countersunk head Drawer Runners M4 nut M4 x 4mm Cabinet Doors Door Handles 1. Fix the drawer runners to the warming drawer using M4 countersunk head screws and M4 nuts as shown.

  • Page 20: Step 10 (Drip Pan)

    Assembly Step 10—Install the Drip Pan LOCATE THESE PARTS Drip Tray Drip Tray Receptacle Drip Bracket 1. Insert the drip tray receptacle into the bracket. 2. Clip the bracket into the hole in the drip tray. IMPORTANT: The hole in the drip tray should be closest to the left side of the grill, as shown.

  • Page 21: Installing An L.p. Gas Cylinder

    Assembly Step 11 - Installing the L.P. Gas Cylinder L.P. Gas Cylinder Not Included 1. Set the L.P. Gas Cylinder upright into the bottom of the grill cabinet. The cylinder will sit securely into the seat in the bottom of the cabinet.

  • Page 22: Connecting The L.p. Gas Cylinder

    Connecting the L.P. Gas Cylinder 1. The top knob on the supply cylinder must about one-half to three-quarters additional be closed. See that the top cylinder knob turn to complete the connection. is turned clockwise to a full stop. NOTE: If you cannot complete the final 2.

  • Page 23: Chapter 3 - Use And Care

    CFM Corporation 2695 Meadowvale Boulevard Mississauga, Ontario L5N 8A3 Canada (800) 668-5323 www.cfmcorp.com Service Note: If you are experiencing difficulties or are dissatisfied with your purchase, please contact CFM at the telephone number listed above prior to returning your grill to the store.
