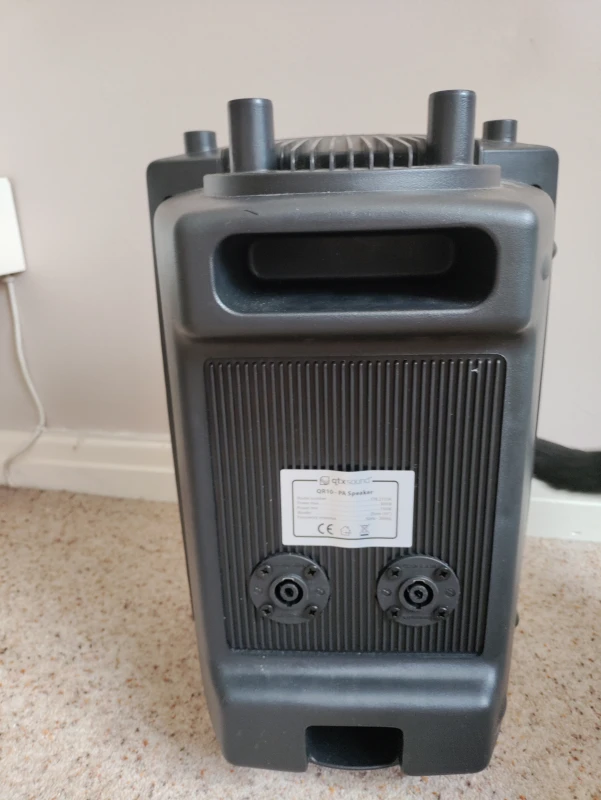

- Page 1 QRPA Portable PA Units Order ref: QR10PA (178.840) QR12PA (178.843) QR15PA (178.846) User Manual VERSION 1.0...
- Page 2 152.761UK User Manual...
- Page 3 Please check the contents to ensure that the product has been received in good condition. QRPA portable PA unit 2 x VHF handheld microphones (1 x headset and bodypack for QR10PA) Mains power lead (12Vdc power adaptor for QR10PA) ...
- Page 4 Cleaning Use a soft cloth with a neutral detergent to clean the cabinet, panel and controls. To avoid damage, do not use solvents to clean this equipment. SPECIFICATIONS QR10PA QR12PA QR15PA Power supply 220-240Vac 50/60Hz / external 12Vdc / internal battery Main driver 25cm (10”)
- Page 5 CONTROLS: USB input SD card slot 2-band EQ controls (BASS + TREBLE) Music volume control VCV voice controlled volume switch 6.3mm jack microphone inputs Radio Frequency indicators (VHF carriers) Wireless microphone volume controls External 12Vdc power input 10) Charging indicator 11) Mains power indicator 12) Media player LCD display 13) Media player mode/transport controls...
- Page 6 “ terminals or the battery to the corresponding clips inside the microphone body, taking care to observe the correct polarity. For QR10PA, connect the neckband microphone to the bodypack, slide open the bodypack and insert the supplied 9V battery, again observing the correct polarity.
- Page 7 External Inputs In addition to the unit’s own VHF microphones, 6.3mm jack inputs are provided to connect external wired or wireless microphones, which are both governed by the MIC VOLUME control. If required, the music level can be automatically muted when speaking into a microphone by switching the VCV on.
- Page 8 In addition to the panel controls, an infra-red remote control is provided for the USB/SD player which adds some further functions to allow greater control over the media player. To operate, remove the clear plastic tab from the remote to activate the battery.
-
Page 9: Troubleshooting
TROUBLESHOOTING: Check POWER switch is on Check battery is not drained fully No output and no LEDs lit Check mains lead is connected Check mains or D.C. fuse hasn’t blown Check 9V batteries in wireless transmitters Check wireless transmitters are switched on Power LED lit but no VHF output Check VHF POWER is switched on Check MIC VOLUME is not turned down...
