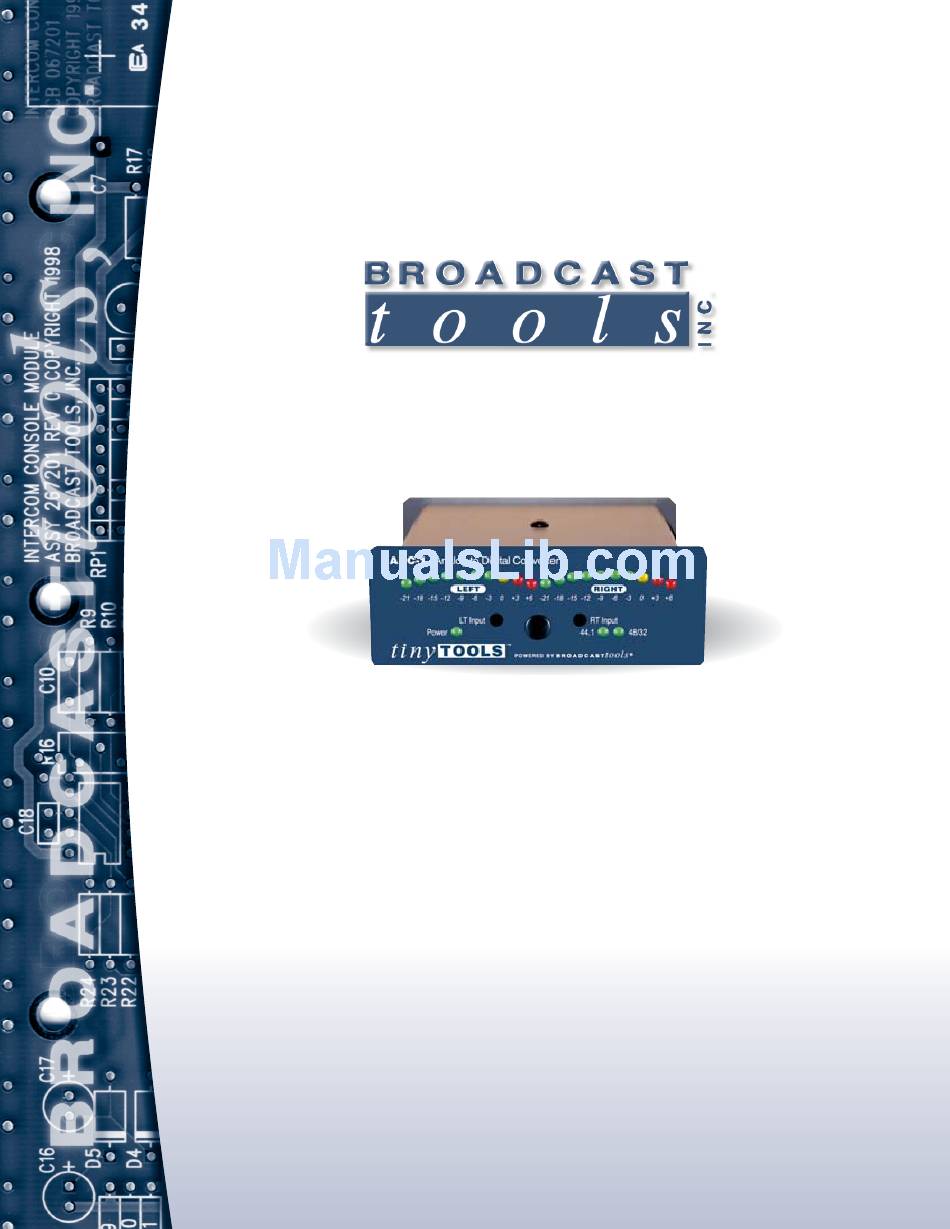

Installation and Operation Manual
ADC-1
Analog to Digital Converter
Manual Update: 09/18/2007
Due to the dynamic nature of product design, the information contained in this
document is subject to change without notice. Broadcast Tools, Inc., assumes no
responsibility for errors and/or omissions contained in this document. Revisions
of this information or new editions may be issued to incorporate such changes.
Broadcast Tools® is a registered trademark of Broadcast Tools, Inc.
Copyright, 1989 - 2007 by Broadcast Tools, Inc. All rights reserved.
No part of this document may be reproduced or distributed without permission.
Visit www.broadcasttools.com for important product update information.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Broadcast Tools ADC-1
Summary of Contents for Broadcast Tools ADC-1
-
Page 1: Installation And Operation Manual
Manual Update: 09/18/2007 Due to the dynamic nature of product design, the information contained in this document is subject to change without notice. Broadcast Tools, Inc., assumes no responsibility for errors and/or omissions contained in this document. Revisions of this information or new editions may be issued to incorporate such changes. -
Page 2: Safety Information
INTRODUCTION CAUTION! Thank you for your purchase of the Broadcast Tools® Analog to Digital Converter, which we will refer to throughout the manual as the ADC-1. We’re confident this Broadcast Tools® product will give you many years of dependable service. This manual is intended to Products, as with any give you all the information needed to install and operate the product. -
Page 3: Product Description
The front panel is equipped with a sample rate switch and led indicators, left and right analog input trimmers, dual 10-LED input meters and power LED indi- cator. The ADC-1 is powered by a surge protected internal bi-polar 15-vdc power supply affording superior headroom and high definition audio. The ADC-1 may be set on a desktop, mounted on a wall or up to three units may be mounted on the optional RA-1, Rack-Able mounting shelf. -
Page 4: Installation
“G” Ground terminals. The station ground should be connected to the chassis ground screw located on the far right side of the ADC-1 as viewed from the rear. It is recommended that all cables connected to the ADC-1 be looped through ferrite cores to suppress RF. -
Page 5: Operation
ADC-1 Installation and Operation Manual OPERATION Power Insert the power plug into the power jack on the ADC-1 and the wall transformer into the proper AC outlet. Verify that the power LED is lit. LT Lvl / RT Lvl Adjust these controls to the desired AES output level. -
Page 6: Specifications
ADC-1 Installation and Operation Manual SPECIFICATIONS Analog Input Level 0dBu to +24dBu. +4dBu analog input provides - 20dBfs AES output when adjusted with the front panel trimmers. 10K Ω balanced. Analog Input Impedance: Frequency Response: 10 to 20kHz +/- 0.5dB. -
Page 7: Limited Warranty
If Broadcast Tools is notified, in writing, of a failure of any item manufactured by Broadcast Tools to conform to the foregoing Limited Warranty within one (1) year following the date of the Buyer’s acquisition of the item, and if the item is returned to Broadcast Tools in accordance with Broadcast Tools’... -
Page 8: Functional Diagram
POWER +5VDC +3.3VDC SECTION TITLE e-mail: voice: fax: 131 State Street, Sedro-Woolley, WA 98284 • 360.854.9559 • Fax 360.854.9479 support@broadcasttools.com 360.854.9559 866.783.1742 Visit us online at www.broadcasttools.com Copyright © 1989-2007 by Broadcast Tools, Inc. All Rights Reserved. Modification Date: 04/12/07...
