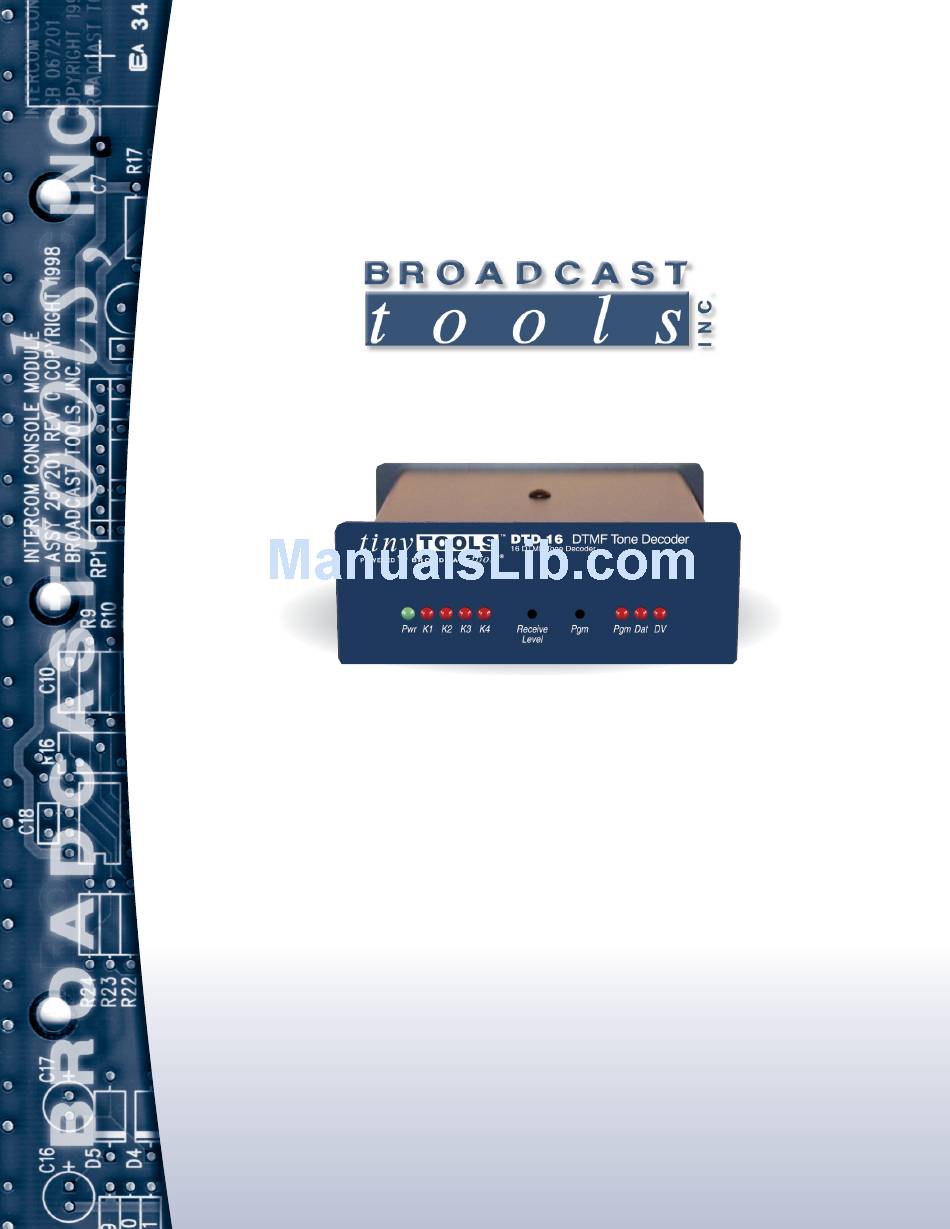

Installation and Operation Manual
DTD-16
DTMF Tone/Sequence Decoder
Manual update 01/22/2009
Firmware Version 1.04
Due to the dynamic nature of product design, the information contained in this
document is subject to change without notice. Broadcast Tools, Inc., assumes no
responsibility for errors and/or omissions contained in this document. Revisions
of this information or new editions may be issued to incorporate such changes.
Broadcast Tools® is a registered trademark of Broadcast Tools, Inc.
Copyright, 1989 - 2009 by Broadcast Tools, Inc. All rights reserved.
No part of this document may be reproduced or distributed without permission.
Visit www.broadcasttools.com for important product update information.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Broadcast Tools DTD-16
Summary of Contents for Broadcast Tools DTD-16
-
Page 1: Installation And Operation Manual
Firmware Version 1.04 Due to the dynamic nature of product design, the information contained in this document is subject to change without notice. Broadcast Tools, Inc., assumes no responsibility for errors and/or omissions contained in this document. Revisions of this information or new editions may be issued to incorporate such changes. -
Page 2: Safety Information
Thank you for your purchase of the tiny TOOLS™ DTMF Tone/Sequence Decoder, Broadcast Tools® which we will refer to throughout the manual as the DTD-16. We’re confident this Products, as with any product will give you many years of dependable service. This manual is intended to electronic device, can give you all the information needed to install and operate the product. -
Page 3: Product Description
“GD” Ground terminals. The station ground should be connected to the chassis ground screw located on the far right side of the DTD-16 as viewed from the rear. It is recommended that all cables connected to the DTD-16 be looped through fer- rite cores to suppress RF. - Page 4 DTD-16 Installation and Operation Manual PROGRAMMING To program the DTD-16, you must connect a PC running a terminal program such as HyperTerminal, etc. Set the terminal program to 9600,8,N,1, flow control to NONE. Character Echo must be turned ON. There are two methods of entering pro- gram mode.
- Page 5 DTD-16 Installation and Operation Manual For the Latch Function, the first code will be used to latch the output on, and the sec- ond code to turn it off. Enter the “ON” code, from 1 to 6 digits. If it is shorter than 5 digits terminate with the “/”...
-
Page 6: Operation
9600,8,N,1. OPERATION Power Power Insert the power plug into the power jack on the DTD-16 and the wall trans- former into the proper AC outlet. Verify that the power LED is lit. WEBSITE: Visit our web site for... -
Page 7: Specifications
DTD-16 Installation and Operation Manual SPECIFICATIONS Input Level -20dBu to +24dBu 200K Ω balanced, 100K Ω unbalanced Input Impedance Relays 4 - SPST, 30Vdc/1 amp. Open Collectors 12 - 12 Vdc / 50 ma. RS-232 Serial 9600, 8,N,1 / Female DB-9 Connectors Audio Inputs/Outputs connections –... - Page 8 If Broadcast Tools is notified, in writing, of a failure of any item manufactured by Broadcast Tools to conform to the foregoing Limited Warranty within one (1) year following the date of the Buyer’s acquisition of the item, and if the item is returned to Broadcast Tools in accordance with Broadcast Tools’...
- Page 9 DTD-16 Installation and Operation Manual APPENDIX A APPENDIX e-mail: support@broadcasttools.com voice: 360.854.9559 fax: 866.783.1742...
