Mini Projector User's Guide
Please read this manual before
Model P50

Advertisement

   Related Manuals for RCA P50

No related manuals

   Summary of Contents for RCA P50

  • Page 1

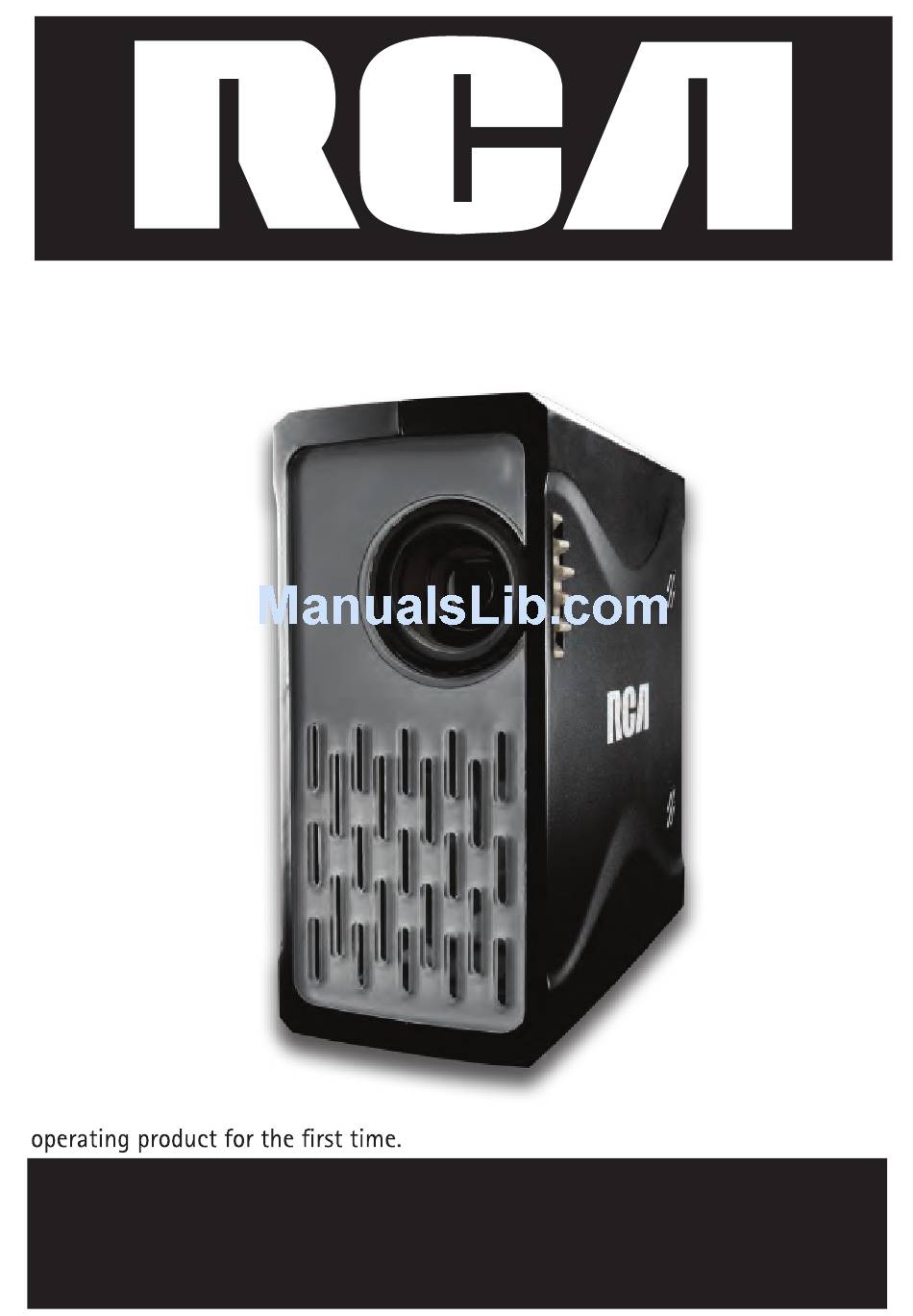

    Mini Projector User’s Guide Please read this manual before Model P50...

  • Page 2: Table Of Contents

    Table of Contents 1. Table of Contents---------------------------------1 2. Warnings-----------------------------------------2 3. Accessories---------------------------------------4 4. Overview-----------------------------------------5 5. Remote Control Functions-------------------------6 6. General Operation---------------------------------7 a. Startup and Shutdown------------------------7 b. Positioning-----------------------------------7 t s i - - - - d. A/V Input------------------------------------9 7. Settings Menu------------------------------------10 9. Maintenance-------------------------------------12 10.

  • Page 3: Warnings

    Warning: To reduce the risk of electric shock, do not remove the cover or back, do not expose the projector to rain or moisture. There are no user- serviceable parts inside. Refer WARNINGS Important Safety Instructions 1. Read these instructions. 2.

  • Page 4

    required when the projector has been damaged in any way, such as when a power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the projector, the projector has been exposed to rain or moisture, does not operate normally, or has been dropped.

  • Page 5: Accessories

    Accessories Remote Control Power Adapter Composite A/V Cable VGA Cable Rubber Stand Carrying Bag...

  • Page 6: Overview

    Overview Front View Focus Adjustment Lens Rear View Power Button Switching signal source A/V Input Volume Up/ / Volume Down/ / VGA Input Menu/Enter Horizontal/Mirror image Power Supply Receptacle...

  • Page 7: Remote Control Functions

    Remote Control Functions Exit Menu=Enter, Ok Horizontal Switch Signal Source Mirror Image Mute Sound Volume Up Volume Down...

  • Page 8: General Operation

    General Operation Startup and Shutdown Startup - Connect the power supply or external battery to the rear power receptacle. Press the power button to turn on. Shutdown - Press the power button, and the optical engine will unit. Please do not unplug the projector until fan has stopped. Power Button Power Receptacle Positioning...

  • Page 9

    Focus Adjustment/Throw Distance The focus can be adjusted by turning the wheel located at the front of the projector. The projector is capable of the following throw and focus distances: Focus Dial Focus Adjustment Diagonal Diagonal Vertical Horizontal Throw size size size size...

  • Page 10: A/v Input

    A/V Input The Projector contains an A/V (Audio/Video) line-in port. You can connect to any device which comes with A/V output function. These sources are connected through a 3.5mm A/V cable (Included). INSERT CABLE INTO 3.5MM A/V PORT AS SHOWN To connect with an A/V cable, insert the 3.5mm portion into the A/V port of the projector.

  • Page 11: Settings Menu

    Settings Menu The Settings Menu can be accessed by pressing the Menu button on the remote control or on the back of the projector. The following options can be accessed through the settings menu, and can be adjusted using the <- and ->...

  • Page 12

    PROJECTION SYSTEM Native Resolution: SVGA (800x600) Brightness: 50 ANSI-Lumens Contrast Ratio: 200:1 Noise: <20 dBA Projection Image: Available Size 15 ~ 80 inch Projection Lens: Manual Focus Lamp Life: 20,000 Hours Projection Angle: 33.6° GENERAL SPECS Audio/Video Input: Stereo Audio Composite Video (CVBS) Audio Output:...

  • Page 13: Maintenance

    Maintenance The RCA P50 Projector requires very little maintenance. • Lens Cleaning - You should keep the lens clean and free of dirt and debris by using a soft lint-free cloth. • General Cleaning - projector and wipe the projector with a soft lint-free cloth.

  • Page 14: Troubleshooting

    Troubleshooting THE PROJECTOR DOES NOT TURN ON SOLUTION POSSIBLE CAUSES Check to ensure the power outlet or battery source is good. There is no power Check the power adapter to ensure a proper connection with the wall outlet as well as the projector. The projector is in the If you hear a fan, the unit is still running it’s cooling cycle.

  • Page 15: Other

    Troubleshooting A/V PORT DOES NOT WORK SOLUTION POSSIBLE CAUSES AV cable is not Connect AV cable again to ensure connected properly the correct connection. External video device, Ensure external video device has does not display output. REMOTE CONTROL DOES NOT WORK SOLUTION POSSIBLE CAUSES Replace the battery with...

  • Page 16: Warranty

    Proof of warranty eligibility is required and must be presented to obtain warranty service. • Contact RCA Customer Care at (800) 274-3014. Our representatives will help you troubleshoot and diagnose the problem. If the issue cannot be resolved by our Customer Care Team, you will be issued an...

  • Page 17: Limited Warranty

    Customer Care Center is staffed 24x7 with product experts that can assist you with any questions that may arise during setup and use of your RCA projector) • Installation and setup service adjustments • Damage caused by accident, abuse or misuse •...

  • Page 18

    If you purchased your product outside the USA or Canada: This warranty does not apply. Contact your dealer for warranty information. Please do not send any products to the Oregon address listed in this ©2011. All rights reserved. Model P50 T00000XXXX Printed in China...
