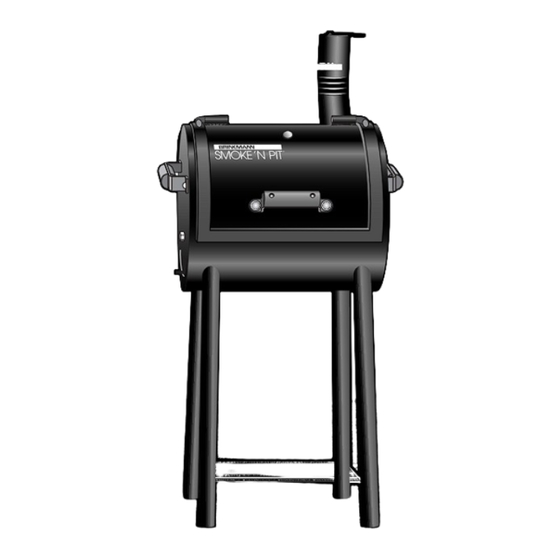

Heavy-Duty Charcoal/Wood Grill & Smoker
OWNER'S MANUAL
ASSEMBLY AND OPERATING INSTRUCTIONS
WARNING
READ AND FOLLOW ALL WARNINGS AND
INSTRUCTIONS IN THIS MANUAL TO AVOID
PERSONAL INJURY OR PROPERTY DAMAGE.

Advertisement

Table of Contents
loading

Summary of Contents for Brinkmann SMOKE'N PIT

  • Page 1 Heavy-Duty Charcoal/Wood Grill & Smoker OWNER’S MANUAL ASSEMBLY AND OPERATING INSTRUCTIONS WARNING READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS IN THIS MANUAL TO AVOID PERSONAL INJURY OR PROPERTY DAMAGE.
  • Page 2 IMPORTANT SAFETY WARNINGS WE WANT YOU TO ASSEMBLE AND USE YOUR GRILL AS SAFELY AS POSSIBLE. THE PURPOSE OF THIS SAFETY ALERT SYMBOL IS TO ATTRACT YOUR ATTENTION TO POSSIBLE HAZARDS AS YOU ASSEMBLE AND USE YOUR GRILL. WHEN YOU SEE THE SAFETY ALERT SYMBOL, PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS! READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND OPERATING YOUR GRILL.
  • Page 3 • We advise that a fire extinguisher be on hand. Refer to your local authority to determine proper size and type of fire extinguisher. • Accessory attachments not manufactured by The Brinkmann Corporation for this particular product are not recommended and may lead to personal injury or property damage.
  • Page 4: Table Of Contents

    ASSEMBLY INSTRUCTIONS READ ALL SAFETY WARNINGS & ASSEMBLY INSTRUCTIONS CAREFULLY BEFORE PROCEEDING WITH THE ASSEMBLY OF THIS SMOKER. FOR MISSING PARTS, PLEASE CALL CUSTOMER SERVICE AT 1-800-527-0717. (Proof of purchase will be required.) Inspect contents of the box to ensure all parts are included and undamaged. The following tools are required to assemble this Smoke’N Pit Grill King: •...
  • Page 5: Cooking Chamber

    Choose a good, cleared assembly area. Lay cardboard down to protect cooker finish and assembly area. Step 1 Place the cooking chamber on its closed end with the door open. The opening of the side air vent should be facing up as Air Vent illustrated.
  • Page 6: Air Vent Butterfly Damper

    Step 6 Attach wooden handle halves to metal Handle bracket as shown. Fasten a handle on side of cooking chamber above the side air vent and another handle to outside of smoker lid. " x 1 " Bolt " Lock Washer Handle Half 10-24 Screws...
  • Page 7: Smokestack

    Insert the chrome push plug into hole in lid of cooking chamber. If you have purchased a Smoke’N Pit temperature gauge, remove tightening ring from gauge. Drop probe through hole and re- thread tightening ring. A Smoke’N Pit temperature gauge may be ordered directly from Brinkmann by calling 1-800-468-5252.
  • Page 8 & LIGHTING INSTRUCTIONS READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY BEFORE OPERATING YOUR COOKER. Prior to your first use of the Brinkmann Smoke’N Pit Grill King, follow Curing Your Cooker the instructions below carefully to cure your cooker. Curing your cooker...
  • Page 9 If you choose to use charcoal lighting fluid, ONLY use charcoal lighting fluid approved for lighting charcoal. Do not use gasoline, kerosene, alcohol or other flammable material for lighting charcoal. Follow all manufacturers’ warnings and instructions regarding the use of their product.
  • Page 10: Operating Instructions

    OPERATING INSTRUCTIONS PLACE THE COOKER OUTDOORS ON A HARD, LEVEL, NON-COMBUSTIBLE SURFACE AWAY FROM ROOF OVERHANG OR ANY COMBUSTIBLE MATERIAL. NEVER USE ON WOODEN OR OTHER SURFACES THAT COULD BURN. PLACE COOKER AWAY FROM OPEN WINDOWS OR DOORS TO PREVENT SMOKE FROM ENTERING YOUR HOUSE. IN WINDY WEATHER, PLACE COOKER IN AN OUTDOOR AREA THAT IS PROTECTED FROM THE WIND.
  • Page 11 Step 5 Using long cooking tongs, carefully spread the hot coals evenly over the charcoal grate. Step 6 Wearing oven mitts/gloves, carefully place cooking grill on grill support brackets and bolts in cooking chamber. Step 7 Place food on cooking grill. Close cooking chamber lid. Adjust the side air vent and smokestack damper to regulate cooking temperature.
  • Page 12 Step 3 Saturate charcoal with lighting fluid and wait 2 to 3 minutes to allow lighting fluid to soak into charcoal. Store charcoal lighting fluid safely away from cooker. Step 4 Open side air vent approximately 1" to 2" and smokestack damper half way.
  • Page 13 Smoke Cooking Tips During the smoking process, avoid the temptation to open lid to check food. Opening the lid allows heat and smoke to escape, making additional cooking time necessary. Food closest to the hot coals will cook and brown faster. Rotate food midway through the cooking cycle.
  • Page 14 Adding Charcoal/Wood Additional charcoal and/or wood may be required to maintain or increase cooking temperature. During Cooking Step 1 Stand back and carefully open cooking chamber lid. Use caution since flames can flare-up when fresh air suddenly comes in contact with fire. Step 2 Wearing oven mitts/gloves, remove food and cooking grill.
  • Page 15 Model 812-4080-0 LOOK FOR THESE AND OTHER BRINKMANN ACCESSORIES AT YOUR LOCAL RETAILER WHERE SMOKERS ARE SOLD, OR ORDER DIRECT BY CALLING 1-800-468-5252.
  • Page 16: One Year Limited Warranty

    ONE YEAR LIMITED WARRANTY For one year from date of purchase, The Brinkmann Corporation warrants the Smoke’N Pit Grill King against defects due to workmanship or materials to the original purchaser. The Brinkmann Corporation’s obligations under this warranty are limited to the following guidelines: •...
