Summary of Contents for Blue Seal Evolution GE505

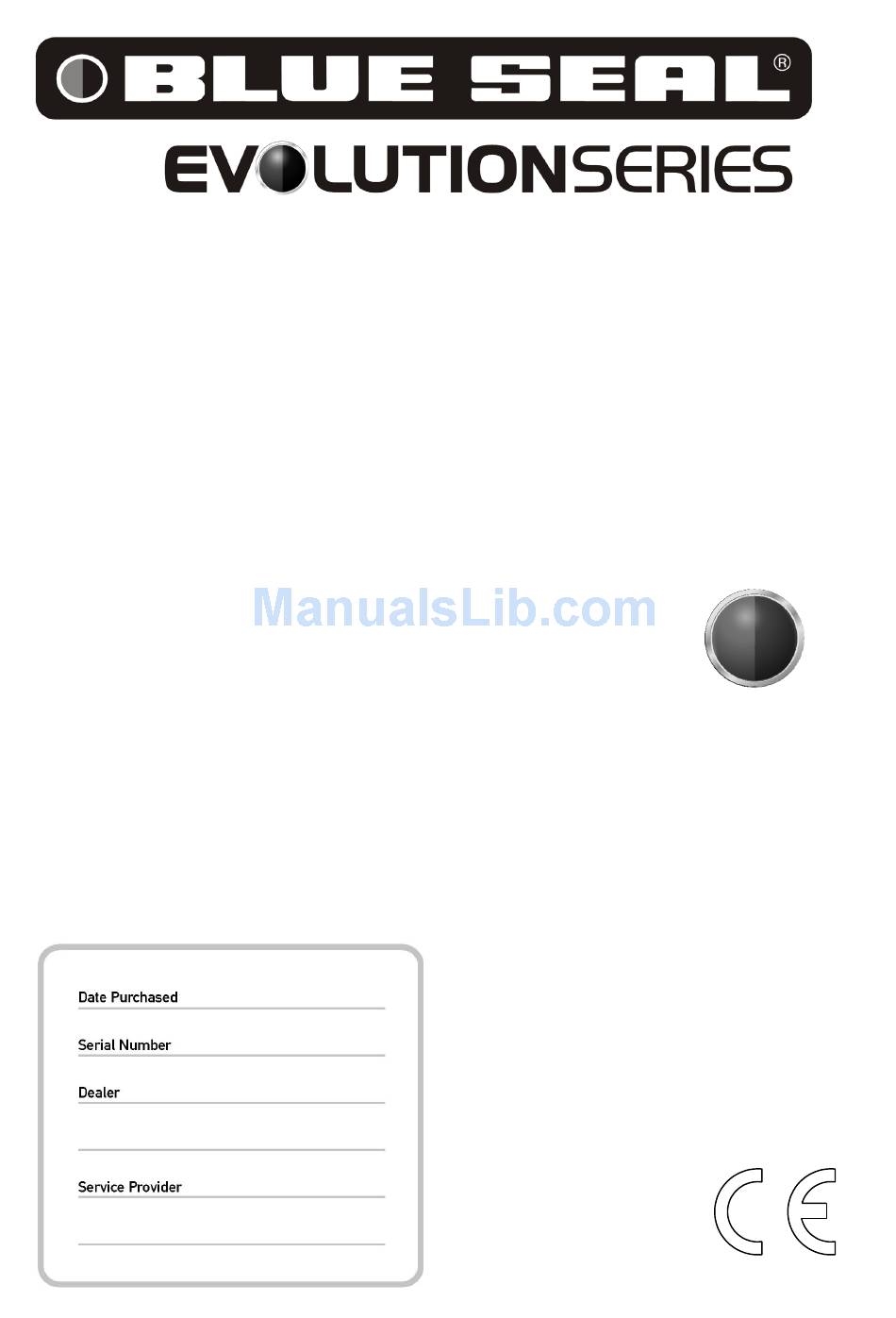

- Page 1 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L GAS RANGE ELECTRIC STATIC / CONVECTION OVENS GE505 GE54 GE506 GE56...
- Page 2 Moffat Limited PO Box 10001 Christchurch New Zealand (03) 389 1007 Fax: (03) 389 1276 WORLD-WIDE BRANCHES UNITED KINGDOM Blue Seal Unit 67, Gravelly Business Park Gravelly Park Birmingham West Midlands B24 8TQ (121) 327 5575 Fax: (121) 327 9711...
-
Page 3: Table Of Contents
Contents Blue Seal Gas Range Electric Static/Convection Ovens GE505 Gas Range Electric Static Oven -750 mm wide. GE506 Gas Range Electric Static Oven - 900 mm wide. GE508 Gas Range Electric Static Oven - 1200 mm wide. GE54 Gas Range Electric Convection Oven - 750 mm wide. -
Page 4: Introduction
Introduction We are confident that you will be delighted with your BLUE SEAL GAS RANGE ELECTRICAL STATIC/ CONVECTION OVEN and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Blue Seal appliance, there are two important things you can do. -
Page 5: Specification
Specifications Model Numbers Covered in this Specification GE505D[1] 4 Open Burners + Electric Static Oven. GE505C[1] 2 Open Burners + 300 mm Griddle + Electric Static Oven. GE506D[1] 6 Open Burners + Electric Static Oven. GE506C[1] 4 Open Burners + 300 mm Griddle + Electric Static Oven. GE506B[1] 2 Open Burners + 600 mm Griddle + Electric Static Oven. -
Page 6: Specifications
1-Phase Connection 3-Phase Connection MODEL 1P+N+E 3P+N+E 230-240V 400-415V L1 - 7.2 Amps 5.5 kW, GE505 5.5 kW L2 - 7.7 Amps 22.6 Amps @ 235 V L3 - 7.7 Amps L1 - 8.5 Amps 5.8 kW, GE54 5.8 kW L2 - 7.7 Amps... -
Page 7: Electrical Connection
IT MUST BE REPLACED BY A SUITABLY QUALIFIED PERSON IN ORDER TO AVOID A HAZARD GE505 / 54 - GE506 / 56 Models Only. Electrical supply connection point is located at the rear of the appliance, approximately 74mm from the right hand side, 501mm from the rear and 150mm from the floor. -
Page 8: Dimensions
Dimensions Dimensions GE505 / GE54 Dimensions GE506 / GE56 Refer to Page 8 for Cook Top Options... - Page 9 Dimensions Dimensions GE508 / GE58 Refer to Page 8 for Cook Top Options...
- Page 10 Dimensions Cook Top Options Cook Top Options GE505-D/GE54-D Cook Top Options GE505-C/GE54-C Cook Top Options GE506-C/GE56-C Cook Top Options GE506-D/GE56-D Cook Top Options GE506-B/GE56-B Cook Top Options GE506-A/GE56-A Cook Top Options GE508-D/GE58-D Cook Top Options GE508-C/GE58-C Cook Top Options GE508-B/GE58-B...
-
Page 11: Installation
Blue Seal Convection Ovens are designed to provide years of satisfactory service, and correct installation is essential to achieve the best performance, efficiency and trouble-free operation. -
Page 12: Clearances
Installation Clearances NOTE: Only non-combustible materials can be used in close proximity to this appliance. Combustible Surface Non Combustible Surface Left / Right hand side 250mm (*) Rear 50mm * Side clearances can be 50mm when the adjacent surface is at least 100mm below the cooking surface. -
Page 13: Electrical Connection
Installation The regulator connections are " BSP female. The connection to the appliance is " BSP male. (Refer to the “Specifications” section for the gas supply location dimensions). NOTE: A Manual Isolation Valve must be fitted to the individual appliance supply line. Correctly locate the appliance into its final operating position and using a spirit level, adjust the legs so that the unit is level and at the correct height. -
Page 14: Commissioning
Installation AUTIO N Changing the supply from 3 phase to single phase will increase the electrical current loading on the supply cable. Ensure that the supply cable used is of a sufficient size current loading, refer 'Electrical Supply Requirements' table overleaf. Connect neutral and earth conductors to neutral stud and earth stud respectively. -
Page 15: Operation
Blue Seal appliances have been designed to provide simplicity of operation and 100% safety protection. Improper operation is therefore almost impossible, however bad operation practices can reduce the life of the appliance and produce a poor quality product. To use this appliance correctly please read the following sections carefully:- •... -
Page 16: Open Burners
Operation Open Burners NOTE: Only cooking pans from size Ø 150 mm to Ø 420 mm are suitable fo use on these open burners. Flame Failure Option (F-Models) Lighting the Open Burners Flame Failure Protection is incorporated for each burner by way of a thermo-electric system which will shut off the gas supply to that burner in the event that the burner goes out, so that un-burnt gas is not expelled. -
Page 17: Griddle
Operation Griddle AUTIO N The griddle plate temperature reaches over 300°C in hottest points during normal operation at 'Full Flame' setting. These griddles are fitted with a pilot as a standard option and Flame Failure Protection, which is incorporated by way of a thermo-electric system for each main burner. Flame Failure Protection will shut off the gas supply to that burner in the event that the pilot for that burner goes out, so that un-burnt gas is This is an important safety feature which is slowly becoming law throughout the not expelled. - Page 18 Operation Ovens DO NOT USE aluminium foil or trays directly on the cast iron sole plate(s). ! IMPORTANT NEVER block or cover the openings on each side of the sole plate(s). The oven is fitted with top and bottom elements. The thermostat maintains the oven temperature by controlling both elements.
-
Page 19: Cleaning And Maintenance
Cleaning and Maintenance AUTIO N Always turn ‘Off’ the electrical and gas supply before cleaning. This appliance is not water proof. Do not use water jet spray to clean interior or exterior of this appliance. General Clean the range regularly. A clean range looks better, will last longer and will perform better. -
Page 20: Daily Cleaning
Cleaning and Maintenance Daily Cleaning The grease tray(s) should be checked and emptied frequently to prevent overflow and spillage. Remove the grease tray(s) while still warm so that the grease is in a liquid state. Empty any grease from the trays and wash thoroughly in the same manner as any cooking utensil. Clean the control panel with a damp cloth lightly moistened with a solution of mild detergent and water. - Page 21 Cleaning and Maintenance Trivets and Burners Burner Cap a. Remove the trivets from the top of the appliance, taking note that the trivets are manufactured with a lip on one edge, the lip must always be fitted to the outer edge (front and back) of the range.
-
Page 22: Periodic Maintenance
Cleaning and Maintenance Notice Lip on NOTE: It is imperative that the trivet supports are correctly Trivet Edge re-fitted to the unit to ensure that the trivets locate correctly and sit flush and level. NOTE that the trivet support front end side rail profiles are different at either side (Refer to Fig 6) and only one of the side rails seat into the cut-out in the range, whereas the rear end of the trivet support side rail profiles are the... -
Page 23: Fault Finding
Fault Finding This section provides an easy reference guide to the more common problems that may occur during the operation of your appliance. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section. - Page 24 Fault Finding Fault Possible Cause Remedy Element does not work when Check individual fuses located Replace the blown fuse. turned ‘ON’. behind the control panel. Call the service provider. Check for an electrical short by checking that there is NO continuity between any "phase in"...
-
Page 25: Wiring Schematic
Wiring Schematic Static Ovens (GE505 / GE506 / GE508 Series) - Page 26 Wiring Schematic Convection Ovens (GE54 / GE56 / GE58 Series)
- Page 27 Wiring Schematics Wiring Layout for Static Oven Wiring Layout for Convection Oven...
-
Page 28: Gas Conversion And Specifications
Gas Conversion and Specifications Conversion Procedure Conversion Procedure NOTE: C AUTI ON AUTIO N • These conversions should only be carried out by qualified persons. All connections must Ensure that the Unit is isolated from the electrical and gas supply before com- Ensure that the appliance is isolated from the electrical and gas supply be checked for leaks before re-commissioning the appliance. - Page 29 Gas Conversion and Specifications Notice Lip on Refit all the trivet supports to the top of the appliance. Note Trivet Edge the orientation of the trivet support when re-fitting. The trivet support front end side rail profiles are different from the rear end side rail profiles.
- Page 30 Gas Conversion and Specifications Pilot Injectors a. Unscrew and remove the Pilot Injector Plug from the Pilot Injector fitting at the end of the pilot injector tube using a 11mm Housing A/F spanner. (see Fig 23). b. Using a flat bladed screwdriver, unscrew and remove the pilot injector from the pilot injector housing.
- Page 31 Gas Conversion and Specifications Griddle Pilot Burner a. With the gas supply turned off at the main supply, Gas Control remove the griddle plate section by lifting it straight off Heat Shield the cook top. b. Remove the gas control heat shield from around the griddle burner, this is just a push in fit.
- Page 32 Gas Conversion and Specifications Gas Regulator NOTE: The regulator supplied is convertible between Natural Gas and LPG, but it’s outlet pressure is fixed ex-factory and is NOT to be adjusted. NOTE, Pin rotated for Natural Gas NOTE, Pin rotated for LPG Fig 31 Ensure that the gas and electrical supply are turned off.
-
Page 33: Gas Specifications
Gas Conversion and Specifications Gas Specifications - Australia / New Zealand Only Natural. Gas LP Gas (Propane) Main Burner Injectors Ø 2.45 mm Ø 1.50 mm Open Burner Pilot Burner ('PF' Models only) 0.30 0.20 Main Burner Ø 2.10 mm Ø... -
Page 34: Replacement Parts List
Replacement Parts List Replacement Parts List IMPORTANT: Only genuine authorized replacement parts should be used for the servicing and repair of this appliance. The instructions supplied with the parts should be followed when replacing components. For further information and servicing instructions, contact your nearest authorized service branch (contact details are as shown on the reverse of the front cover of this manual). - Page 35 Motor Capacitor 4µf. 228116 Fan. 019479 Motor. General 227014 Pot Stand/Trivet. 228884 Spill Tray (GE505 & GE54 only). 228883 Spill Tray (GE506 & GE56 only). 228882 Spill Tray (GE508 & GE58 only). 227892 Side Rack LH. 227893 Side Rack RH.
