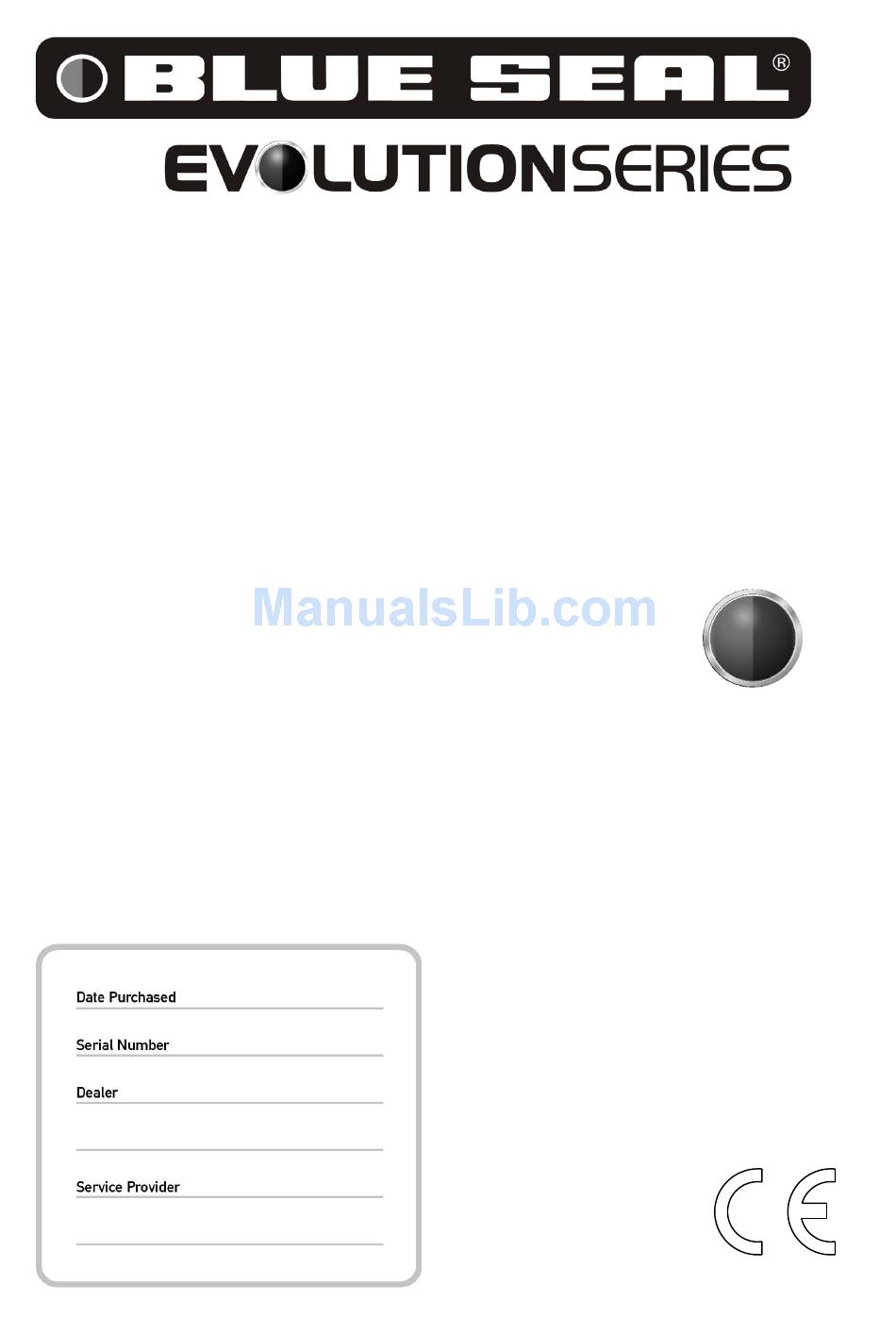

I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L
GAS CONVECTION OVEN
RANGE
G 5 4
G 5 6
G 5 8
For use in GB, IE & DK
230105-11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Evolution G54 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Blue Seal Evolution G54

  • Page 1 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L GAS CONVECTION OVEN RANGE G 5 4 G 5 6 G 5 8 For use in GB, IE &...
  • Page 2 Moffat Limited PO Box 10001 Christchurch New Zealand (03) 389 1007 Fax: (03) 389 1276 WORLD-WIDE BRANCHES UNITED KINGDOM Blue Seal Unit 67, Gravelly Business Park Gravelly Park Birmingham West Midlands B24 8TQ (121) 327 5575 Fax: (121) 327 9711...
  • Page 3: Table Of Contents

    Contents Blue Seal Gas Range Convection Oven Gas Convection Oven Range - 750 mm wide. Gas Convection Oven Range - 900 mm wide. Gas Convection Oven Range - 1200 mm wide. Introduction ....................2 Specification ....................3 Model Numbers Covered in this Specification...
  • Page 4: Introduction

    Introduction We are confident that you will be delighted with your BLUE SEAL Gas Range Convection Oven , , and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Blue Seal appliance, there are two important things you can do.
  • Page 5: Specification

    Specifications Model Numbers Covered in this Specification G54D[1] 4 Open Burners + Turbofan Convection Oven. G54C[1] 2 Open Burners + 300 mm Griddle + Turbofan Convection Oven. G56D[1] 6 Open Burners + Turbofan Convection Oven. G56C[1] 4 Open Burners + 300 mm Griddle + Turbofan Convection Oven. G56B[1] 2 Open Burners + 600 mm Griddle + Turbofan Convection Oven.
  • Page 6: Electrical Supply Requirements

    Specifications - CE Only: Appliance Classification Category: (20, 30 / 37). 2H3P Flue Type: Natural Gas (G20) Propane (G31) Open Burner Griddle Open Burner Griddle Oven Oven (each) (each 300mm section) (each) (each 300mm section) Nominal 6.5 kW 5.5 kW 7.8 kW 6.5 kW 5.5 kW...
  • Page 7: Dimensions

    Dimensions Dimensions G54 Cook Top Options G54D Cook Top Options G54C...
  • Page 8 Dimensions Dimensions G56D, G56C, G56B & G56A Models Cook Top Options G56D Cook Top Options G56C Cook Top Options G56B Cook Top Options G56A...
  • Page 9 Dimensions Dimensions G58D, G58C, G58B & G58A Models Cook Top Options G58D Cook Top Options G58C Cook Top Options G58B Cook Top Options G58A...
  • Page 10: Installation

    Blue Seal gas Range Convection Ovens are designed to provide years of satisfactory service, and correct installation is essential to achieve the best performance, efficiency and trouble-free operation.
  • Page 11: Clearances

    Installation Clearances NOTE: Only non-combustible materials can be used in close proximity to this appliance. Combustible Surface Non Combustible Surface Left/Right hand side 250 mm (*) 0 mm Rear 100 mm 0 mm * Side clearances can be 50 mm when the adjacent surface is at least 100 mm below the cooking surface.
  • Page 12: Electrical Connection

    Installation The regulator connections are " BSP female. The connection to the appliance is " BSP male. (Refer to the “Specifications” section for the gas supply location dimensions). NOTE: A Manual Isolation Valve must be fitted to the individual appliance supply line. Correctly locate the appliance into its final operating position and using a spirit level, adjust the legs so that the appliance is level and at the correct height.
  • Page 13: Operation

    / operator. Blue Seal appliances have been designed to provide simplicity of operation and 100% safety protection. Improper operation is therefore almost impossible, however bad operation practices can reduce the life of the appliance and produce a poor quality product.
  • Page 14: Open Burners

    Operation Open Burners NOTE: Only cooking pans from size Ø 150 mm to Ø 420 mm are suitable fo use on these open burners. Flame Failure Option (F-Models) Lighting the Open Burners Flame Failure Protection is incorporated for each burner by way of a thermo-electric system which will shut off the gas supply to that burner in the event that the burner goes out, so that un-burnt gas is not expelled.
  • Page 15: Oven Pilot Ignition

    Operation Griddle AUTIO N The griddle plate temperature reaches over 300°C in hottest points during normal operation at 'Full Flame' setting. These griddles are fitted with a pilot as a standard option and Flame Failure Protection, which is incorporated by way of a thermo-electric system for each main burner. Flame Failure Protection will shut off the gas supply to that burner in the event that the pilot for that burner goes out, so that un-burnt gas This is an important safety feature which is slowly becoming law throughout is not expelled.
  • Page 16: Oven - Main Burner / Thermostat

    Operation Oven - Main Burner / Thermostat Ensure that the oven door is closed. Turn ‘ON’ electrical power at the mains supply, the (white) power indicator light will illuminate on the oven control panel. With the pilot burner alight, depress and rotate the oven gas control knob to the 'Main Flame' position.
  • Page 17: Cleaning And Maintenance

    Cleaning and Maintenance AUTIO N Always turn off the gas and electrical supply before cleaning. This appliance is not water proof. Do not use water jet spray to clean interior or exterior of this appliance. General Clean the range regularly. A clean range looks better, will last longer and will perform better. Carbonised grease on the surface or between the trivets, griddle plates will hinder the transfer of heat from the cooking surface to the food.
  • Page 18: Daily Cleaning

    Cleaning and Maintenance Daily Cleaning The grease tray(s) should be checked and emptied frequently to prevent overflow and spillage. Remove the grease tray(s) while still warm so that the grease is in a liquid state. Empty any grease from the trays and wash thoroughly in the same manner as any cooking utensil. Clean the control panel with a damp cloth lightly moistened with a solution of mild detergent and water.
  • Page 19: Cleaning And Maintenance

    Cleaning and Maintenance Burner e. Clean with hot water, a mild detergent solution and a scrubbing brush. Dry all components thoroughly with a dry cloth. f. The griddle should be switched on briefly to ensure that the griddle plate becomes dry. A thin smear of cooking oil should be spread over the grates and griddle plate in order to form a protective film.
  • Page 20: Oven Interior

    Cleaning and Maintenance Re-Fitting the Components to the Range a. Refit the trivet supports to the range, ensuring that the trivet supports are correctly fitted. NOTE: It is imperative that the trivet supports are correctly re-fitted to the appliance to ensure that the trivets locate correctly and sit flush and level.
  • Page 21: Fault Finding

    Fault Finding This section provides an easy reference guide to the more common problems that may occur during the operation of your appliance. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section.
  • Page 22: Wiring Schematic

    Wiring Schematic G54 / G56 / G58 GREEN BLUE BLACK BROWN GREEN BLUE BLACK BROWN...
  • Page 23: Gas Conversion And Specifications

    Gas Conversion and Specifications Conversion Procedure AUTIO N Ensure that the appliance is isolated from the electrical and gas supply before commencing servicing. NOTE: Burner • These conversions should only be carried out by qualified persons. All connections must be checked for leaks before re-commissioning the appliance.
  • Page 24 Gas Conversion and Specifications Refit all the trivet supports to the top of the appliance. Note the orientation of the trivet support when re-fitting. The ‘Turned Up’ lip trivet support front end side rail profiles are different from on Pot Stand the rear end side rail profiles.
  • Page 25: Gas Conversion And Specifications

    Gas Conversion and Specifications Pilot Injectors a. Unscrew and remove the Pilot Injector Plug from the fitting Pilot Injector at the end of the pilot injector tube using a 11 mm A/F Housing spanner. (See Fig 23). b. Using a flat bladed screwdriver, unscrew and remove the pilot injector from the pilot injector housing.
  • Page 26 Gas Conversion and Specifications Gas Griddle Gas Control Heat Shield Pilot Burner a. With the gas supply turned off at the main supply, remove the griddle plate section by lifting it straight off the cook top. b. Remove the gas control heat shield from around the Burner Securing griddle burner, this is just a push in fit.
  • Page 27 Gas Conversion and Specifications Oven Pilot Burner Sole Plate Inspection Covers Main Injector a. With the gas supply turned off at the main supply, unscrew and remove the 6 screws securing the lower lintel to the front of the oven. b.
  • Page 28 Gas Conversion and Specifications Gas Regulator NOTE: The regulator supplied is convertible between Natural Gas and LPG, but it’s outlet pressure is fixed ex-factory and is NOT to be adjusted. Ensure that the gas and electrical supply are turned off. NOTE, Pin rotated for Natural Gas NOTE, Pin...
  • Page 29: Gas Specifications

    Gas Conversion and Specifications Gas Specifications - Australia / New Zealand Natural Gas LP Gas (Propane) Main Burner Injectors Ø 2.45 mm Ø 1.50 mm Open Burner Pilot Burner ('PF' Option Only) 0.30 0.20 Main Burner Ø 2.10 mm Ø 1.30 mm Griddle Pilot Burner 0.35...
  • Page 30: Replacement Parts List

    Replacement Parts List Replacement Parts List IMPORTANT: Only genuine authorized replacement parts should be used for the servicing and repair of this appliance. The instructions supplied with the parts should be followed when replacing components. For further information and servicing instructions, contact your nearest authorized service branch (contact details are as shown on the reverse of the front cover of this manual).
  • Page 31 Taptite Screw M5 x 16. 044018 Nut M5 Glenloch Locknut. General 227014 Pot Stand/Trivet. 230282 Spill Tray - 750 mm (G54 Series). 230273 Spill Tray - 450 mm (G56 Series). 230277 Spill Tray - 600 mm (G58 Series). 227892 Side Rack LH.
  • Page 32: Replacement Parts List

    Replacement Parts List Accessories 228566 Griddle Scraper Tool. 228567 Smooth Plate Scraper Blades (Pack of 5 blades). 228568 Ribbed Plate Scraper Blade (Individual Blade). 228797 750 mm Plinth Kit. 228800 900 mm Plinth Kit. 228804 1200 mm Plinth Kit.

This manual is also suitable for:

Evolution g56Evolution g58
