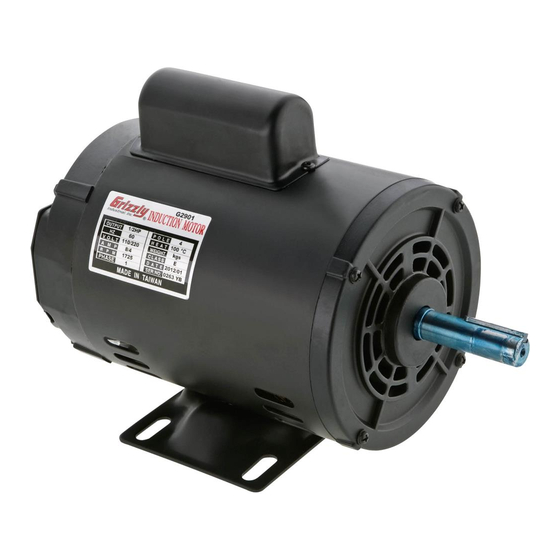

Grizzly Electric Motor G2901 Instruction Sheet

Model G2901 Specifications

Power ......................................................... ½ HP
Cycle ............................................................60Hz
Voltage .................................................110/220V
Prewired ......................................................110V
Amps ............................................................8/4A
RPM ............................................................. 1725
Phase ........................................................ Single
Class ..................................................................E
Start Capacitor ........................ 200MFD 125VAC
Dimensions .............................. 1½"D x 2

Replaceable Parts

REF PART # DESCRIPTION
1 P2901001 S CAPACITOR COVER
2 PC200C S CAPACITOR 200M 125V 1-1/2 X 2-3/8
3 P2901003 JUNCTION BOX
WARNING: NO PORTION OF THIS INSTRUCTION SHEET MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
Disconnect power when
replacing motor. Failure
to do this may result in
serious personal injury.
COPYRIGHT © DECEMBER, 2007 BY GRIZZLY INDUSTRIAL, INC.
#JB10229 PRINTED IN TAIWAN
MODEL G2901
½ HP ELECTRIC MOTOR
INSTRUCTION SHEET

Electrical Safety

If you are unsure how to attach wires to terminals,
DO NOT continue. Contact a qualified electrician
for assistance. Connecting wires improperly may
cause them to come loose or contact other wires,
which can cause electrocution, fire, or a short.
⁄ "L
3
8
�
�
�
REF PART #
4 P2901004
5 P2901005
Electrocution or fire could
result if this motor is not
grounded correctly or if
your wire connections do
not comply with local and
state codes. Ensure com-
pliance by checking with a
qualified electrician!
�
�
DESCRIPTION
CENTRIFUGAL SWITCH
CONTACT PLATE
