Grizzly H5388 Instruction Sheet

Model H5388 Specifications
Power .......................................................... 3 HP
Cycle ............................................................60Hz
Voltage ........................................................220V
Amps ..........................................................13.5A
RPM ............................................................. 3450
Phase ........................................................ Single
Class ..................................................................B
Start Capacitor ........................ 600MFD 125VAC
Dimensions .............................. 1
Run Capacitor ........................... 30MFD 250VAC
Dimensions .............................. 1½"D x 2
Replaceable Parts
REF PART # DESCRIPTION
1 PH5388001 MOTOR FAN COVER
2 PH5388002 MOTOR FAN
3 PH5388003 S CAPACITOR COVER
4 PC600B S CAPACITOR 600M 125V 1-7/8 X 3-3/8
5 PH5388005 R CAPACITOR COVER
WARNING: NO PORTION OF THIS INSTRUCTION SHEET MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
⁄ "D x 3
7
8
Disconnect power when
replacing motor. Failure
to do this may result in
serious personal injury.
�
�
COPYRIGHT © DECEMBER, 2007 BY GRIZZLY INDUSTRIAL, INC.
#JB10236 PRINTED IN TAIWAN

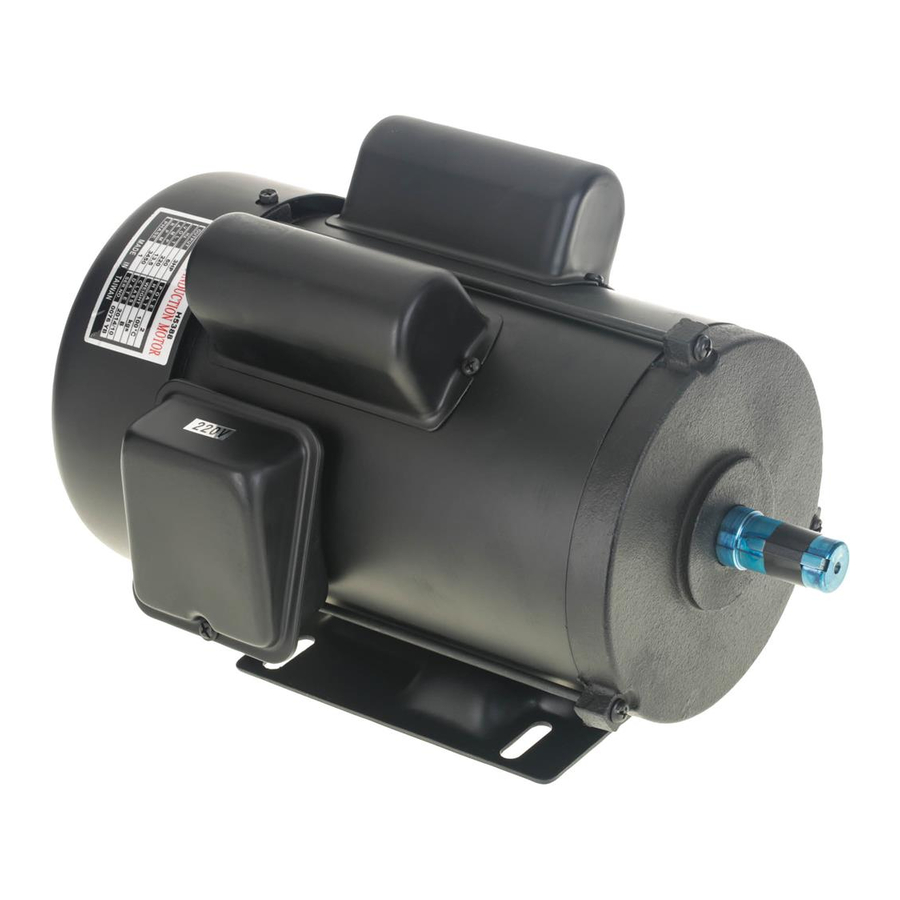

MODEL H5388
3 HP ELECTRIC MOTOR
INSTRUCTION SHEET
Electrical Safety
If you are unsure how to attach wires to terminals,
DO NOT continue. Contact a qualified electrician
for assistance. Connecting wires improperly may
cause them to come loose or contact other wires,
which can cause electrocution, fire, or a short.
⁄ "L
3
8
⁄ "L
3
8
�
�
�
�
REF PART #
6 PC030B
7 PH5388007
8 PH5388008
9 PH5388009
Electrocution or fire could
result if this motor is not
grounded correctly or if
your wire connections do
not comply with local and
state codes. Ensure com-
pliance by checking with a
qualified electrician!
�
�
�
DESCRIPTION
R CAPACITOR 30M 250V 1-1/2 X 2-3/8
JUNCTION BOX
CENTRIFUGAL SWITCH
CONTACT PLATE
