Grizzly H5377 Wiring Diagram

Model H5377 Specifications
Power ......................................................... ¾ HP
Cycle ............................................................60Hz
Voltage .................................................110/220V
Prewired ......................................................110V
Amps .........................................................9/4.5A
RPM ............................................................. 1725
Phase ........................................................ Single
Class ..................................................................B
Start Capacitor ........................ 200MFD 125VAC
Dimensions .............................. 1½"D x 2
Run Capacitor ........................... 30MFD 250VAC
Dimensions .............................. 1½"D x 2

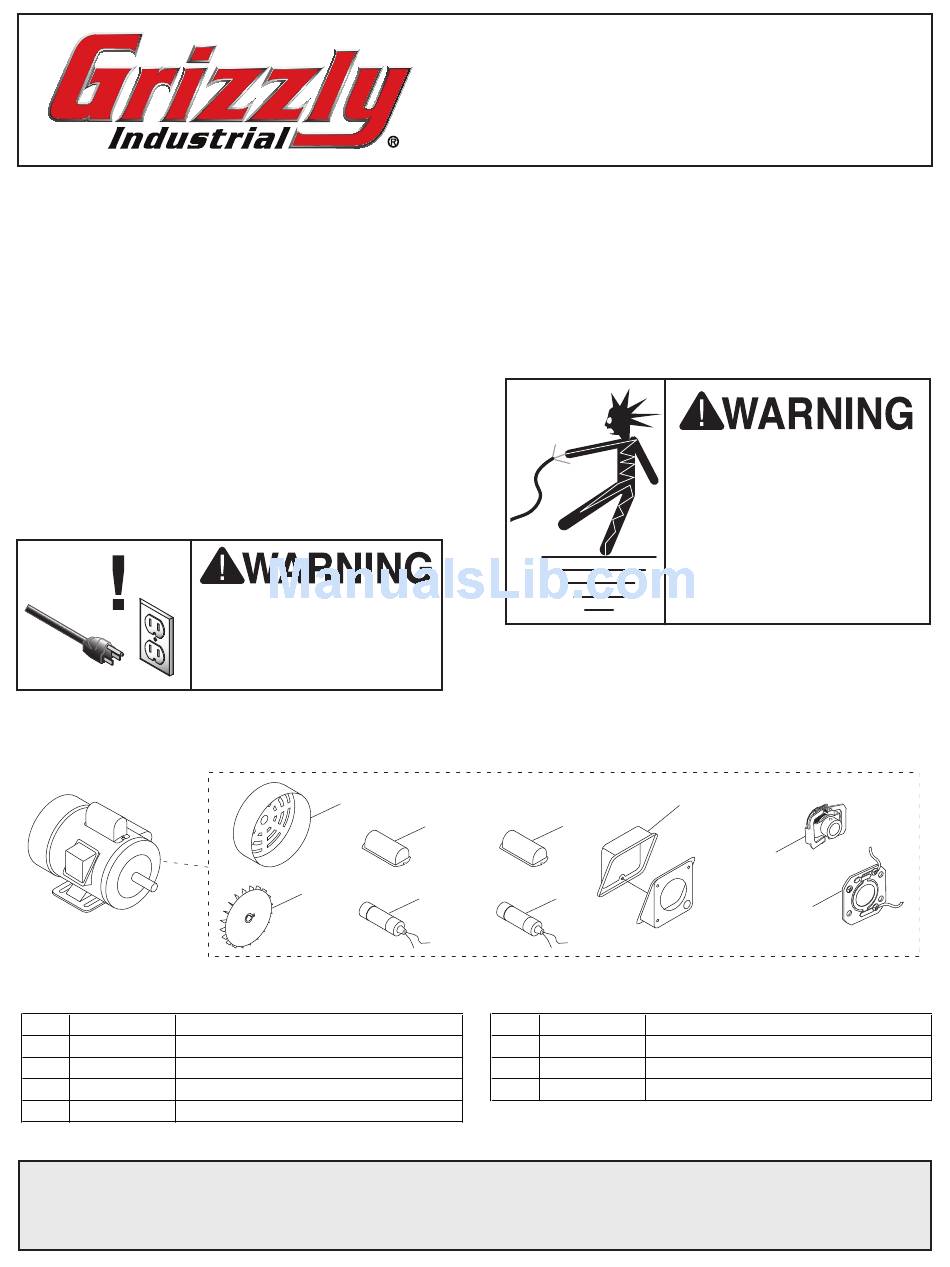

Replaceable Parts
REF PART # DESCRIPTION
1 PH5377001 MOTOR FAN COVER
2 PH5377002 MOTOR FAN
3 PH5377003 S CAPACITOR COVER
4 PC200C S CAPACITOR 200M 125V 1-1/2 X 2-3/8
5 PH5377005 R CAPACITOR COVER
WARNING: NO PORTION OF THIS INSTRUCTION SHEET MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
Disconnect power when
replacing motor. Failure
to do this may result in
serious personal injury.
�
�
COPYRIGHT © DECEMBER, 2007 BY GRIZZLY INDUSTRIAL, INC.
#JB10223 PRINTED IN TAIWAN
MODEL H5377
⁄ HP ELECTRIC MOTOR
3
4
WIRING DIAGRAM
Electrical Safety
If you are unsure how to attach wires to terminals,
DO NOT continue. Contact a qualified electrician
for assistance. Connecting wires improperly may
cause them to come loose or contact other wires,
which can cause electrocution, fire, or a short.
⁄ "L
3
8
⁄ "L
3
8
�
�
�
�
REF PART #
6 PC030B
7 PH5377007
8 PH5377008
9 PH5377009
Electrocution or fire could
result if this motor is not
grounded correctly or if
your wire connections do
not comply with local and
state codes. Ensure com-
pliance by checking with a
qualified electrician!
�
�
�
DESCRIPTION
R CAPACITOR 30M 250V 1-1/2 X 2-3/8
JUNCTION BOX
CENTRIFUGAL SWITCH
CONTACT PLATE
