Summary of Contents for Sima VS-560
-

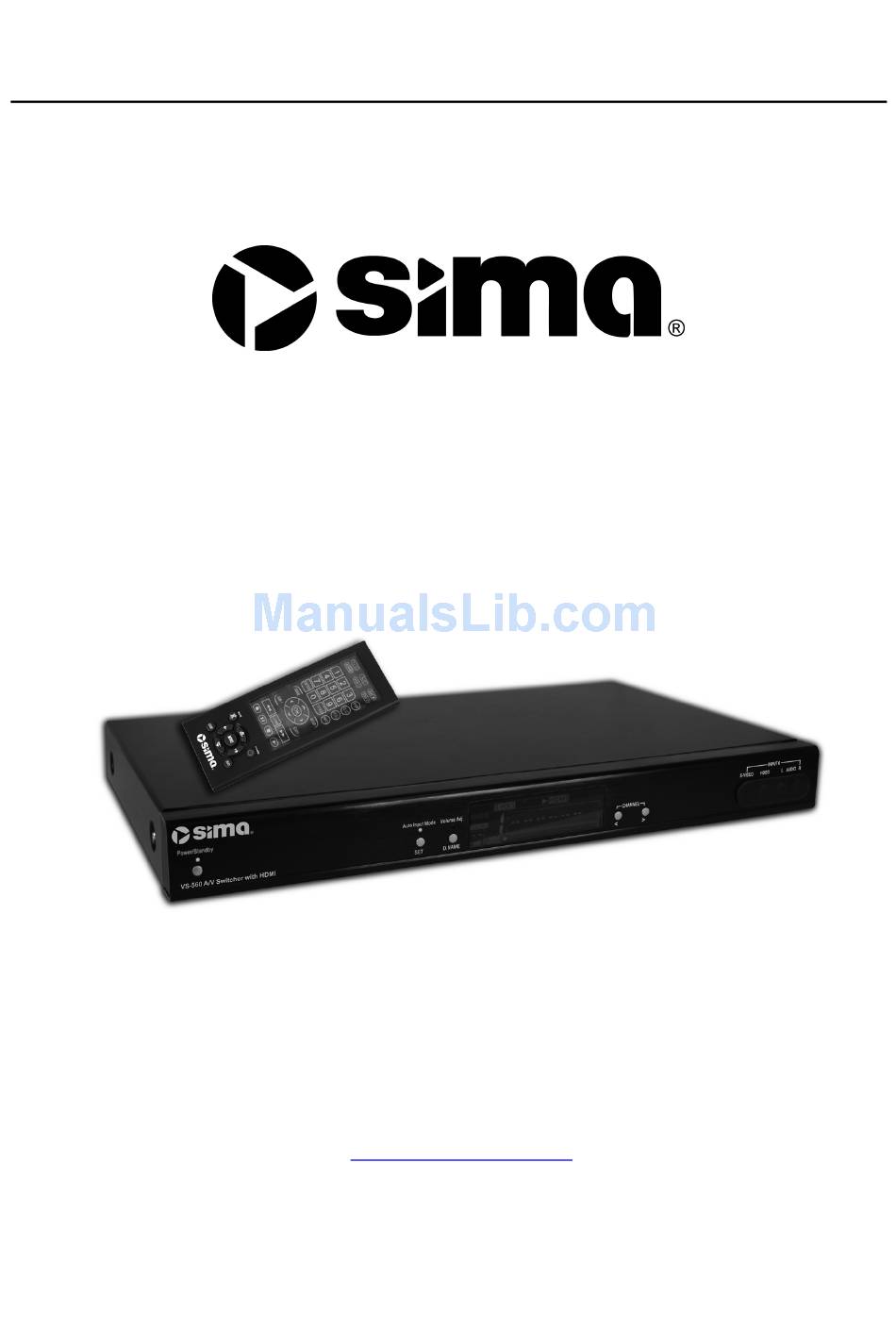

Page 1: Package Contents
Model VS-560 User Manual 9 Input A/V Switcher with HDMI, Component Video, Digital Audio, Automatic Input Mode and Volume Equalization Online Product Registration http://www.simaproducts.com... - Page 2 1 - VS-560 A/V Switcher Unit 1 - Power Adapter, (120-220VAC input, 5V DC output) 1 – Universal Remote Control (PN – 52466) 1 - Instruction Manual for VS-560 (PN-21793) 1 – Instruction manual for remote control 2009 by Sima Products Corporation.
-
Page 3: Caution
Caution: IMPORTANT SAFEGUARDS FOR AUDIO PRODUCTS. PLEASE READ CAREFULLY THE FOLLOWING IMPORTANT SAFEGUARDS THAT ARE APPLICABLE TO YOUR EQUIPMENT 1. Read instructions - All the safety and operating instructions should be read before the appliance is operated. 2. Retain instructions - The safety and operating instructions should be retained for future reference. 3. -
Page 4: Table Of Contents
Table of Contents PACKAGE CONTENTS: ..............................2 CAUTION: ..................................3 INTRODUCTION ................................6 FRONT PANEL................................7 ..................................7 ONTROLS REAR PANEL................................... 8 IR UNIVERSAL REMOTE CONTROL........................9 TYPICAL HOOK UP..............................10 BASIC HOOK-UP #1: CONNECTING TWO SOURCES ..................11 BASIC HOOK-UP #2: CONNECTING DIFFERENT VIDEO TYPES .............. -
Page 5: Introduction
Automatic Input Mode (Auto Input) - detects and switches to the most recent active input without manual selection. Simply turn on your DVD and the VS-560 directs the video and audio from this device automatically to the TV and audio receiver. -
Page 6: Front Panel
Front Panel Figure 1, VS-560 front panel 3 - Volume Adjustment – Display name - Equalizes audio line levels from a dynamic Controls range of 6 to -6 dB. Also use this button to 1 - Power / Standby - Press to toggle the unit select pre-programmed display names or between modes. -
Page 7: Rear Panel
Audio/Video Audio/Video Audio/Video Coaxial 1, 3, 5 (3) Inputs S-video Component S-video Optical 2, 4 (1) Output Power 5V DC Outputs RS-232 Digital Audio Outputs (2) Audio/Video Coaxial, Optical (2) S-video (1) Component Figure 2, VS-560 rear panel Page 7... -
Page 8: Ir Universal Remote Control
IR Universal Remote Control See IR Universal Remote Control manual for description of features and operation. Note: Press the SELECT button to select setting for control of VS-560. The setting contains pre-programmed codes for operation of the VS-560 Fig. 3 Page 8... -
Page 9: Typical Hook Up
S-video Conversion: The VS-560 has an s-video to component converter. You can feed a combination of s- video and component to the VS-560 and feed only a component signal to your TV. This lets you use just one component input on your TV and all sources will automatically be displayed there. -
Page 10: Basic Hook-Up #1: Connecting Two Sources
* The VS-560 does not convert composite video to s-video. Figure 5, Hook-up in typical system Note: Remember to always connect the outputs on your VCR/DSS/DVD/etc… to the inputs on the VS-560. Likewise, connect the outputs on the VS-560 to the inputs on the TV/VCR/Receiver/etc…... -
Page 11: Basic Hook-Up #2: Connecting Different Video Types
S-video from the DVD player, while the DVD’s optical audio output is connected to the optical digital audio input on the VS-560. Input 4 is being used as a component video input from the set top cable box along with a coaxial digital audio connection. -
Page 12: Basic Hook-Up #3: Connecting Hdmi Sources
HDMI input #1. The HDMI output from the DVD player is connected to HDMI input #2. The HDMI output of the VS-560 is connected to the TV’s HDMI input allowing you to view either source. HDMI carries both the digital audio and video signal. -
Page 13: Operation
Auto Input Mode If the Auto Input mode is on, as a new input becomes active, the VS-560 will automatically change to the new input. If you want to go to another A/V source, select the input using the front panel button or the remote. -
Page 14: How It Works
Volume Equalization circuitry [- -]. The diagram also shows how the selected video (composite, S-Video, or component) signal is fed to the output buffer amplifiers and into the converter which then feeds outputs A and B. The VS-560 does not convert composite, S- Video, or component video signals to HDMI. -
Page 15: Automatic Input Sensing
HDMI video inputs, waiting for a video input signal. When you turn on a device (VCR, DSS, etc.) a microprocessor in the VS-560 senses the video input, turns on the VS-560 (when it is in the stand-by mode) and selects the input. When a second input occurs, the unit will switch to the new input. If the second input is turned off, in approximately 3 seconds, the unit will go back to the first input. - Page 16 To create a custom name for an input: 1) Select the input you want to name by pressing the CHANNEL < > buttons. 2) Press and hold the D.NAME button for 3-4 seconds or until you hear a beep. The six character spaces will begin to blink.
-
Page 17: Rs-232C Interface
RS-232C Interface The RS-232C interface on the VS-560 lets you connect the unit to a home automation system and control the various functions of the unit. Computer (DB-9) RS-232C Connection The specifications of the RS-232 port are: 9600 baud 1 start, 8 bits, no parity... -
Page 18: Rs232 Command Structure
RS232 Command Structure RS232 commands sent to the VS-560 consist of four bytes: a start character, an address character, a command mode character, and a command data byte. There is no need to send a carriage return or line feed at the end of the message. -
Page 19: Trouble Shooting
Picture is black and white Your TV is using both composite and S-Video inputs. Use only one or the other to feed into the VS-560 or into your TV. Auto Input does not detect Is the video cable connected from the device to the VS-560? -
Page 20: Technical Specifications
Technical Specifications Design and specifications are subject to change without notice Auto Input Sensing On or off Volume Equalization User adjustable from ±6dB Bypass: on or off Digital Interface RS-232 port to interface home automation systems Audio Inputs, (6 stereo) Typical input level, 200 mV Frequency response 50 to 20KHz, +/- 3dB (bypass mode) Outputs... -
Page 21: Limited Warranty
Limitation of Liability and Remedies Sima shall have no liability for any damages due to lost profits, loss of use or anticipated benefits, or other incidental, consequential, special or punitive damages arising from the use of, or the inability to use, this product, whether arising out of contract, negligence, tort or under any warranty, even if Sima has been advised of the possibility of such damages. -
Page 22: System Organization Chart
System Organization Chart Fill in the chart below to help you organize and remember what devices are connected to the inputs and outputs. Save for future reference. Inputs From (VCR, DSS, Component Composite L&R Digital audio Video Video Video (analog) Coaxial/Optical etc.) audio...
